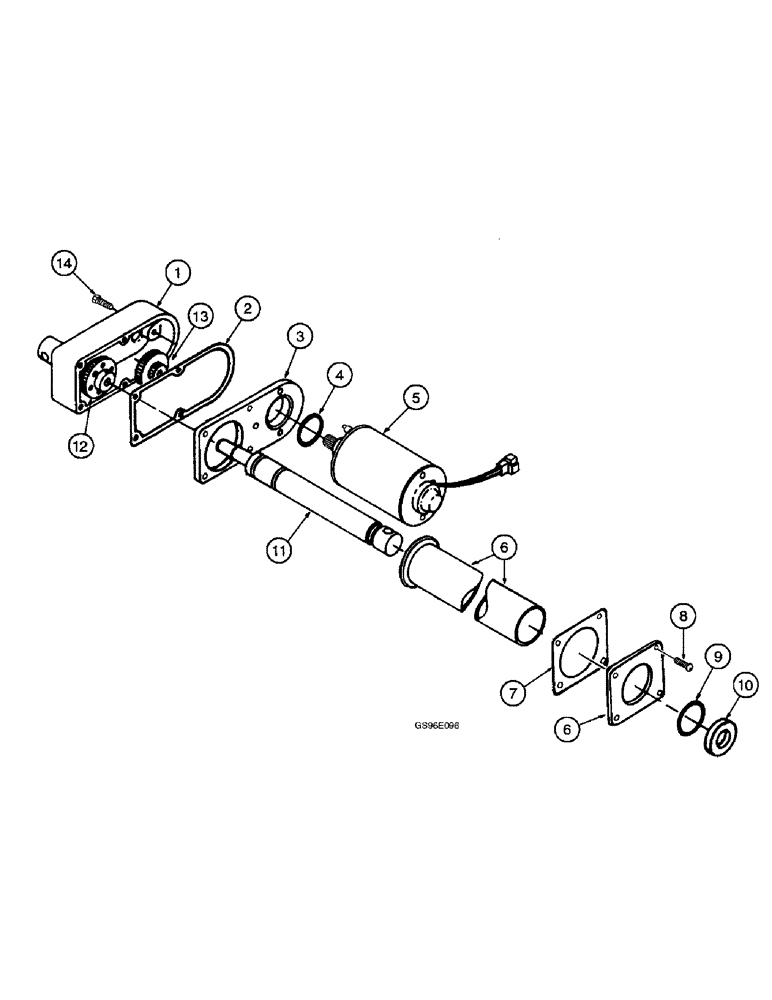

Запчасти Case IH INTERNATIONAL (4-55A) - REEL DRIVE ACTUATOR ASSEMBLY, VARIABLE SPEED (13) - REEL

91227C91

ACTUATOR,12V

ACTUATOR ASSEMBLY - variable speed (Replaces actuator assembly 116220C94)

1шт.

1

91229C1

HOUSING

- rear, order kit 1281489C1

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET - housing, order kit 1281489C1

1шт.

3

91231C1

HOUSING

- front, order kit 1281489C1

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - motor, order kit 1281489C1

1шт.

5

700704871

MOTOR, ELECTRIC

MOTOR - actuator (Replaces motor 1281487C1)

1шт.

225-14210

NUT,#10-32

2шт.

6

91288C1

TUBE - cover

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - cover tube, order kit 1281489C1

1шт.

8

440-11020

SCREW,Cross Pan Hd, #10-24 x 1 1/4"

- machine, pan Phillips, No. 10 NF x 1-1/4 inch (Replaces screw 159962)

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - order kit 1281489C1

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - lip, order kit 1281489C1

1шт.

11

91232C1

WORM SCREW

- drive, also order kit 1281489C1

1шт.

12

1281485C1

CLUTCH

- slip, also order kit 1281489C1

1шт.

13

91230C1

GEAR

- intermediate, also order kit 1281489C1

1шт.

14

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

SCREW, SELF TAPPING, Cross Oval Hd, #8 x 3/4"

1шт.

493-81000

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, (3/16") (Replaces washer 178378) Ext-Int Tooth, #10

2шт.

1281489C1

SEAL KIT

KIT - gasket and seal

1шт.
