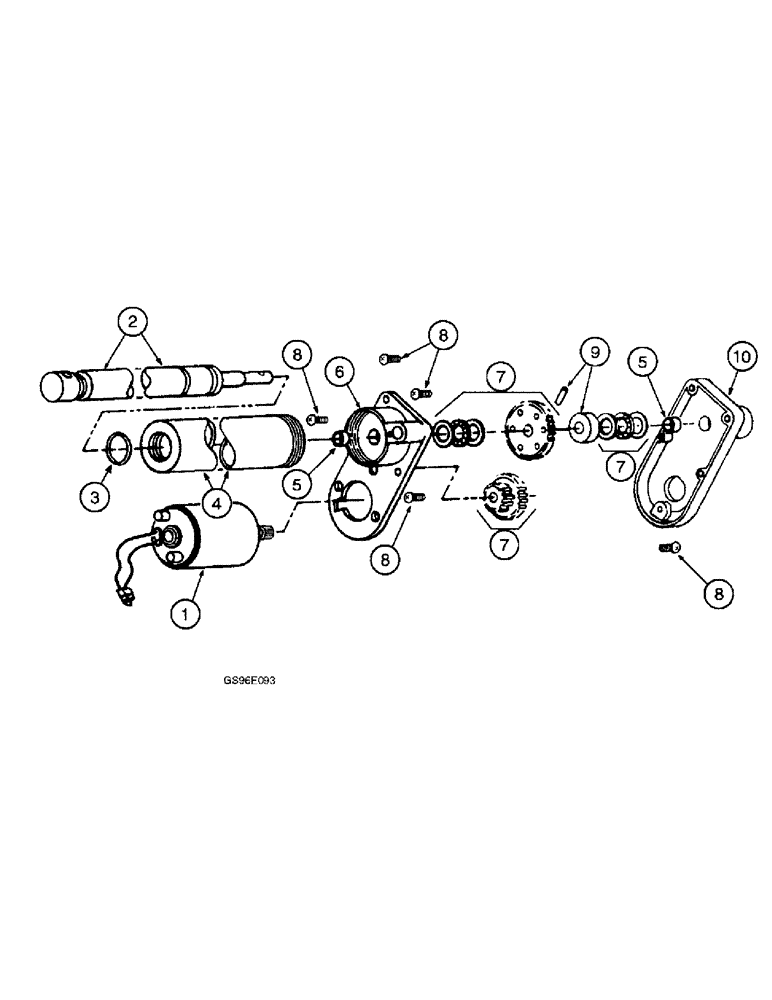

Запчасти Case IH INTERNATIONAL (4-54) - REEL DRIVE ACTUATOR ASSEMBLY, VARIABLE SPEED (13) - REEL

116220C94

MOTOR

ACTUATOR ASSEMBLY - spout, variable speed reel drive, no longer available, order actuator assembly 91227C91, parts list page 4-55B

1шт.

1

133236C2

ELECTRIC MOTOR

MOTOR - actuator

1шт.

2

133233C1

KIT

HOUSING - actuator, includes screws

1шт.

3

133239C1

KIT

O-RING - wiper, order kit 1253749C2

1шт.

4

133252C1

TUBE

- cover, motor

1шт.

5

133237C1

KIT

- bushing, package of two, order kit 1253749C2

1шт.

6

133235C2

HOUSING

- front

1шт.

7

133232C4

KIT

- gear and bearing

1шт.

8

133238C1

KIT

- housing screw, package of five, order kit 1253749C2

1шт.

9

1281421C1

KIT

PIN - motor, includes retainer (Replaces pin 133253C2)

1шт.

10

133234C5

HOUSING

- rear

1шт.

1253749C2

KIT - motor service

1шт.
