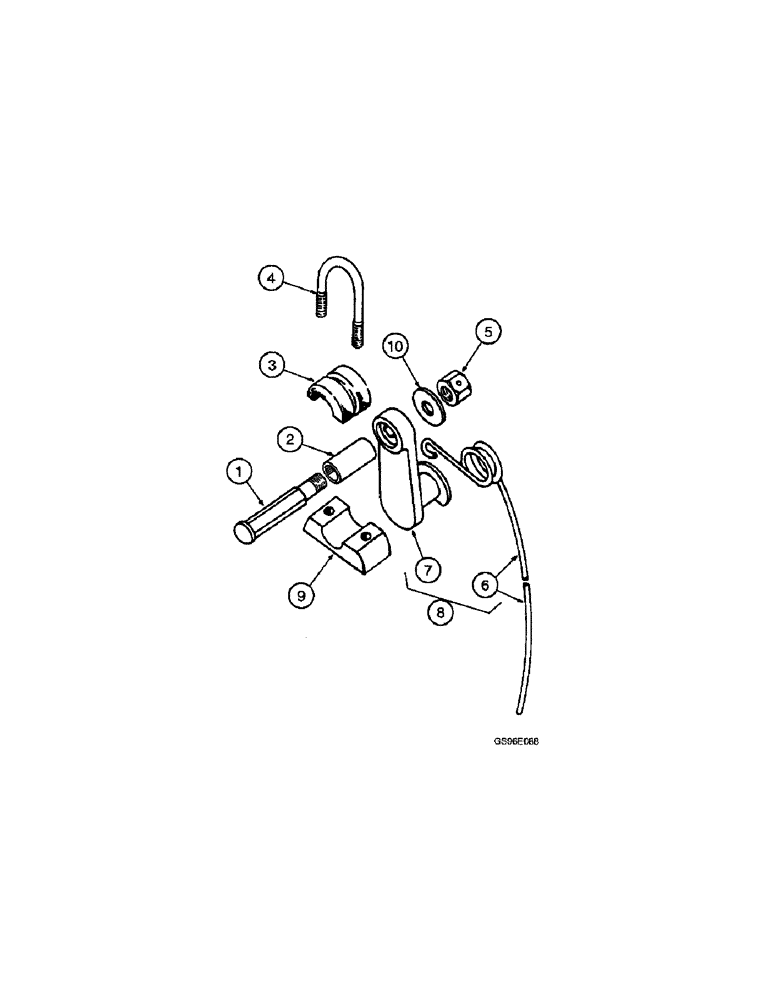

Запчасти Case IH INTERNATIONAL (4-44) - PICK-UP REEL FINGER, 12 FOOT, 14 FOOT AND 16 FOOT HEADERS, REGULAR (13) - REEL

1

827385C1

BOLT,Rnd Hd, Spcl Shank, 1/2" x 2 1/2"

- round head hex shank, 1/2 NF x 2-1/2 inch

10шт.

2

598246R1

SPACER

- shank bolt, 9/16 ID x 1-1/4 inch

10шт.

3

598235R1

BEARING CAP,1.025"

- bearing, pick-up finger outer

10шт.

4

598236R1

U-BOLT,U, 1/4" - 20

- bearing, finger bearing clamp

10шт.

231-4144

NUT,1/4"-20, GB

NUT, LOCK, (Replaces nut 9413950) 1/4"-20, GB

20шт.

5

9411648

LOCK NUT,1/2"-20, GC

NUT - prevailing torque lock, 1/2 inch NF (Replaces nut 9411818)

10шт.

6

598182R1

FINGER

- pick-up, left-hand (Shown)

5шт.

6

598183R1

FINGER

- pick-up, right-hand

5шт.

7

592627R21

STRAP

- finger

10шт.

8

598180R91

FINGER

- pick-up, left-hand, no longer available, order finger 598182R1 and strap 592627R21 (Shown)

5шт.

8

598181R91

FINGER

- pick-up, right-hand, no longer available, order finger 598183R1 and strap 592627R21

5шт.

9

598234R1

BASE

- bearing, pick-up finger inner

10шт.

10

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch (Replaces washer 178374R1)

10шт.
