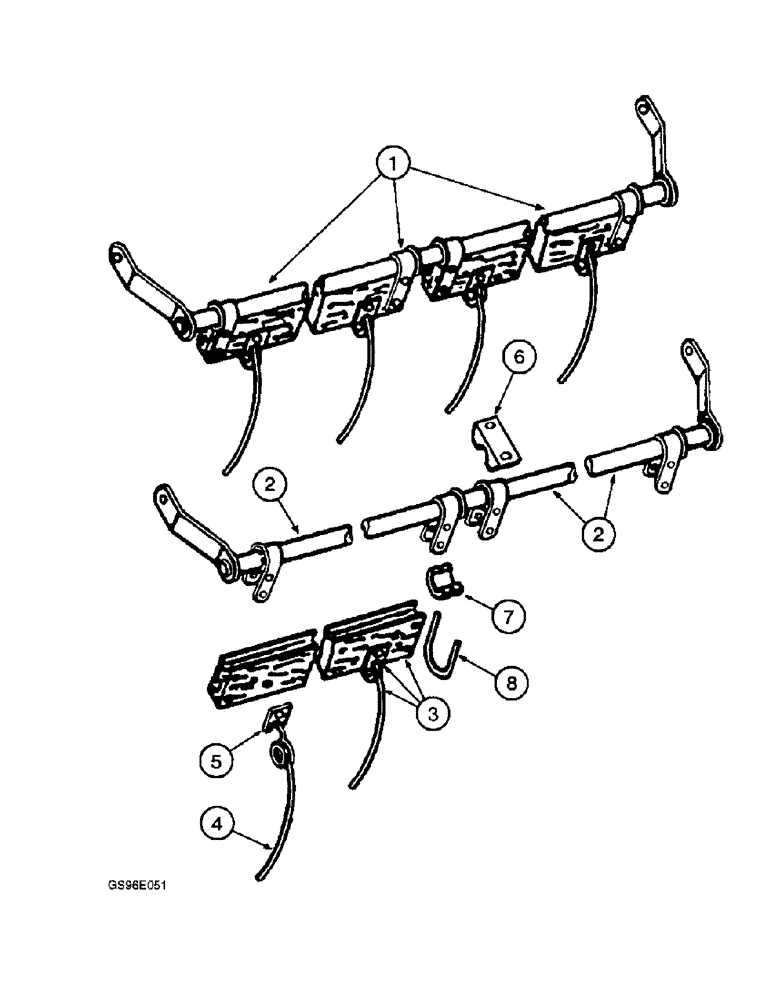

Запчасти Case IH INTERNATIONAL (4-42) - P/U REEL BATSHAFT AND BAT, 12 FOOT, 14 FOOT AND 16 FOOT REGULAR (13) - REEL

1

598224R91

BAT

ASSEMBLY - header reel, 12 foot, no longer available as a unit, order components

5шт.

1

598227R91

BAT

ASSEMBLY - header reel, 14 foot, no longer available as a unit, order components

5шт.

1

598230R91

BAT

ASSEMBLY - header reel, 16 foot, no longer available as a unit, order components

5шт.

2

598225R1

SHAFT

BATSHAFT - header reel, used with batshaft assembly 598224R91

1шт.

2

598228R1

SHAFT

BATSHAFT - header reel, used with batshaft assembly 598227R91

1шт.

2

598231R1

SHAFT

BATSHAFT - header reel, used with batshaft assembly 598230R91

1шт.

3

598226R91

BAT

ASSEMBLY - header reel batshaft, 12 foot, used with bat assembly 598244R91

2шт.

3

598229R91

BAT

ASSEMBLY - header reel batshaft inner, 14 foot, used with bat assembly 598227R91

1шт.

3

598189R91

BAT

ASSEMBLY - header reel batshaft outer, 14 foot, used with bat assembly 598227R91

2шт.

3

598232R91

BAT

ASSEMBLY - header reel bat shaft inner, 16 foot, used with bat assembly 598230R91

1шт.

3

598233R91

BAT

ASSEMBLY - header reel batshaft outer, 16 foot, used with bat assembly 598230R91

2шт.

4

598171R1

TINE,Coiled, 1 Prong, 283mm L

1шт.

TINE - steel, bat, fourteen used with bat assembly 598226R91, twelve used with bat assembly 598229R91, eleven used with bat assembly 598189R91, twelve used with bat assembly 598232R91, thirteen used with bat assembly 598233R91

1шт.

5

592616R1

CLIP

- bat tine, one per tine

1шт.

23055R1

RIVET,Tr Hd, 3/16" x 1"

- semi-tubular oval head, 3/16 x 1 inch, one per clip (Replaces rivet 20901R1)

1шт.

111-114

CARRIAGE BOLT,Short NK, 1/4"-20 x 1 1/2", G2

BOLT - carriage, 1/4 NC x 1-1/2 inch, sixteen used with bat assembly 598224R91, twenty-four used with bat assemblies 598227R91 and 598230R91 (Replaces bolt 18629R1)

1шт.

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC, 1 per bolt 111-114 (Replaces nut 378531R1)

1шт.

6

598234R1

BASE

- bearing, reel bat inner half, fifteen used with 12 foot, twenty used with 14 and 16 foot

1шт.

7

598235R1

BEARING CAP,1.025"

- bearing, reel bat outer half, fifteen used with 12 foot, twenty used with 14 and 16 foot

1шт.

8

598236R1

U-BOLT,U, 1/4" - 20

- bearing clamping, fifteen used with 12 foot, twenty used with 14 and 16 foot

1шт.

231-4144

NUT,1/4"-20, GB

NUT, LOCK, , 4 per bolt (Replaces nut 9413950) 1/4"-20, GB

1шт.
