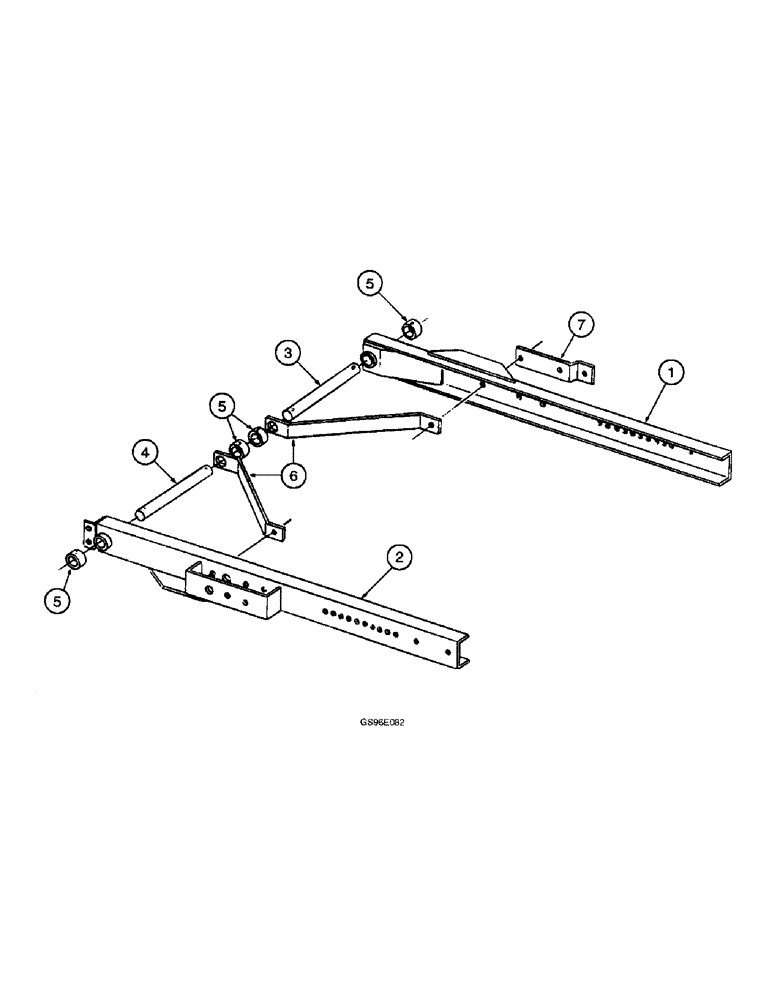

Запчасти Case IH INTERNATIONAL (4-30) - REEL SUPPORT ARMS (13) - REEL

1

831952C1

ARM

- reel support, left-hand

1шт.

2

831953C1

ARM

- reel support, right-hand

1шт.

3

832372C1

SHAFT

- reel arm, left-hand

1шт.

4

832373C1

SHAFT

- reel arm, right-hand, not for use with electrical motor variable speed reel drive

1шт.

5

824529C1

BUSHING

- reel arm lock, two used with left-hand side, two used with right-hand side, not for use with electrical motor variable speed reel drive

1шт.

38-32432

PIN,3/8" x 2", Coiled

4шт.

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch (Replaces washer 608700R1)

15шт.

6

832075C1

BRACE

- reel support arm

2шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Replaces bolt 180175) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(Replaces bolt 180179) Hex, 1/2"-13 x 1 3/4", G5

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

7

831979C2

SUPPORT

- master reel lift cylinder, upper

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Replaces bolt 180175) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.
