Запчасти Case IH DUAL (C-08) - DUAL AUGER, AUGER AND SHAFTS, WITH FRONT AND REAR AUGER

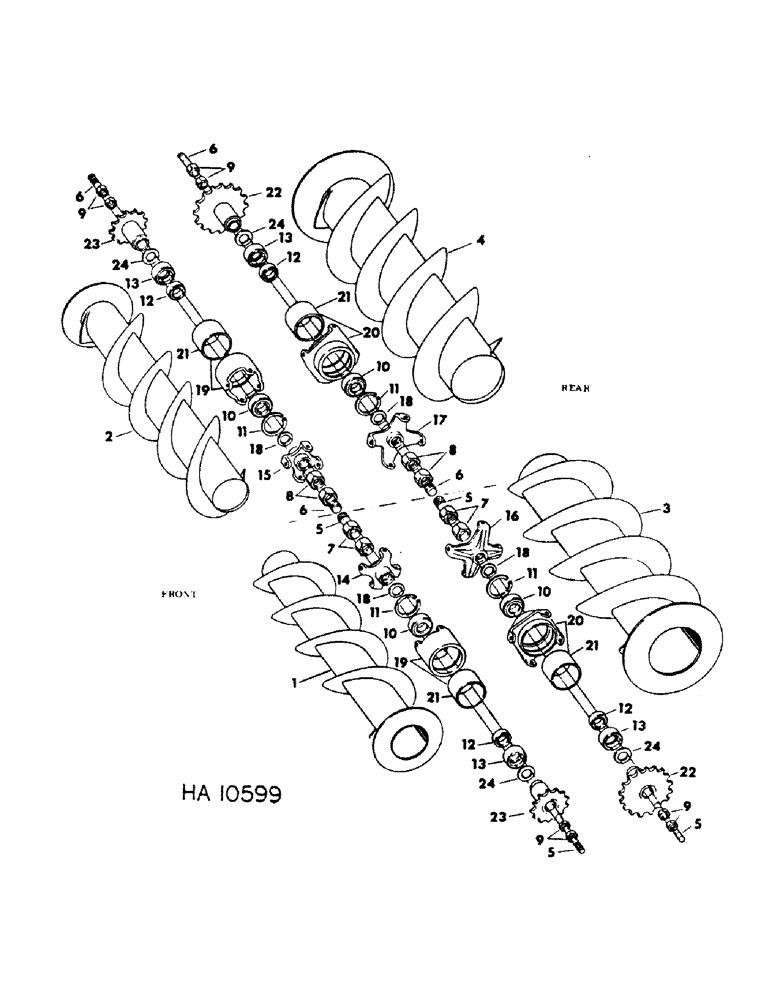

Схема запчастей Case IH DUAL - (C-08) - DUAL AUGER, AUGER AND SHAFTS, WITH FRONT AND REAR AUGER

Артикул

Название

Примечание

Количество

1

609666R92

AUGER

ASSY, 12 ft front LH

1шт.

1

609668R92

AUGER

ASSY, 14 ft front LH

1шт.

1

595636R92

AUGER

ASSY, 16 ft front LH

1шт.

2

609667R92

AUGER

ASSY, 12 ft front RH

1шт.

2

609669R92

AUGER

ASSY, 14 ft front RH

1шт.

2

595637R92

AUGER

ASSY, 16 ft front RH

1шт.

3

609687R92

AUGER

ASSY, 12 ft rear LH

1шт.

3

609689R92

AUGER

ASSY, 14 ft rear LH

1шт.

3

595642R92

AUGER

ASSY, 16 ft rear LH

1шт.

4

609688R92

AUGER

ASSY, 12 ft rear RH

1шт.

4

609690R92

AUGER

ASSY, 14 ft rear RH

1шт.

4

595643R92

AUGER

ASSY, 16 ft rear RH

1шт.

823944C1

SCREW,3/8" - 16 x 1/2"

3/8-16 x 1/2 button hd or

32шт.

598059R1

SCREW

3/8-16 x 7/16 button hd

32шт.

469668R1

WASHER

.406 x .734 x .056 front auger

8шт.

5

831908C1

SHAFT

front & rear auger drive LH

2шт.

6

831905C1

SHAFT

front & rear auger drive RH

2шт.

7

426899

NUT,Jam, 1"-8, G5

1 jam type 5

4шт.

8

22851R1

NUT,Jam, 1"-8, G5, LH

1 jam LHT type 5

4шт.

9

124944

JAM NUT,Hex, 5/8" - 18, Gr 5

8шт.

10

609654R91

BEARING, BALL,25mm ID x 62mm OD x 17mm W

BEARING, drive shaft inner

4шт.

11

641207R1

SNAP RING,2.44", Int, #244

RING, 2.702 int ret, 2 per bearing

8шт.

12

295109R91

BALL BEARING

drive shaft outer

4шт.

13

609659R2

RETAINER

PAD, outer bearing

4шт.

14

609660R2

DIFF. SPIDER

SPIDER, front auger drive shaft LH

1шт.

15

609661R2

DIFF. SPIDER

SPIDER, front auger drive shaft RH

1шт.

16

609682R2

SPIDER

rear auger drive shaft LH

1шт.

17

609683R2

DIFF. SPIDER

SPIDER, rear auger drive shaft RH

1шт.

18

614451R1

WASHER

1.031 x 1.750 x .105

8шт.

19

825090C91

HOUSING

ASSY, front auger support, includes 609663R2 bushing

2шт.

20

825091C91

HOUSING

ASSY, rear auger support, includes 609663R2 bushing

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lube

4шт.

21

609663R2

BUSHING

auger support

4шт.

22

609762R21

SPROCKET ASSY.

SPROCKET ASSY, rear auger driven 30T for connecting parts refer to auger drive

2шт.

249

KEY,Gib, 1/4" Sq x 1 3/4"

1/4 x 1-3/4 gib hd

2шт.

23

609747R21

SPROCKET ASSY.

SPROCKET ASSY, front auger driven 20T, for connecting parts refer to auger drive

1шт.

249

KEY,Gib, 1/4" Sq x 1 3/4"

1/4 x 1-3/4 gib hd

2шт.

24

609836R1

WASHER

1.031 x 1.750 x .054

1шт.

Выбрано товаров: 38
