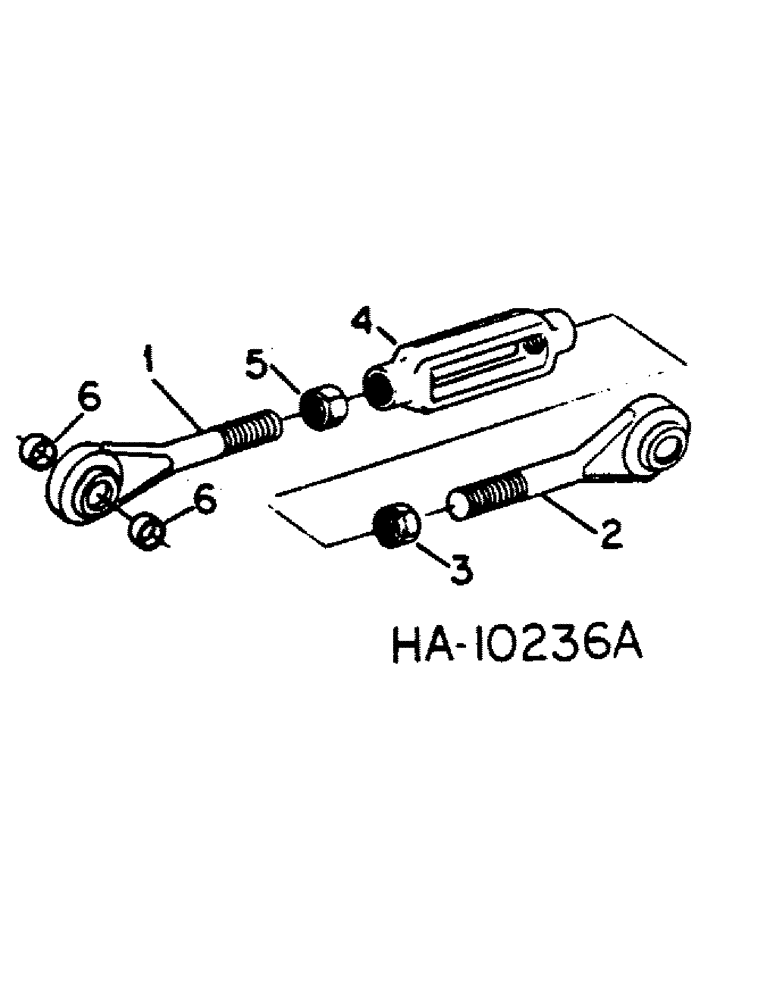

Запчасти Case IH DUAL (C-43) - DUAL AUGER, HEADER CENTER LINK

1

595687R91

LINK

ASSY, header center 6.88 inch LH thread

1шт.

24895R1

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 8

1980 and since Hex, 3/4"-10 x 4 1/2", G8

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1979 to 1980 Hex, 3/4"-10 x 3", G5

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

2

832328C1

LINK

ASSY, header center front 11.50 inch RH thread

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

3

426898

NUT,Jam, 7/8"-9, G5

7/8-9 hex RH thread

1шт.

4

595992R1

TURNBUCKLE

1шт.

5

22852R1

NUT,Jam, 7/8"-9, G5, LH

7/8-9 hex LH thread

1шт.

6

825019C1

BUSHING

link spacer, 1980 and since

2шт.
