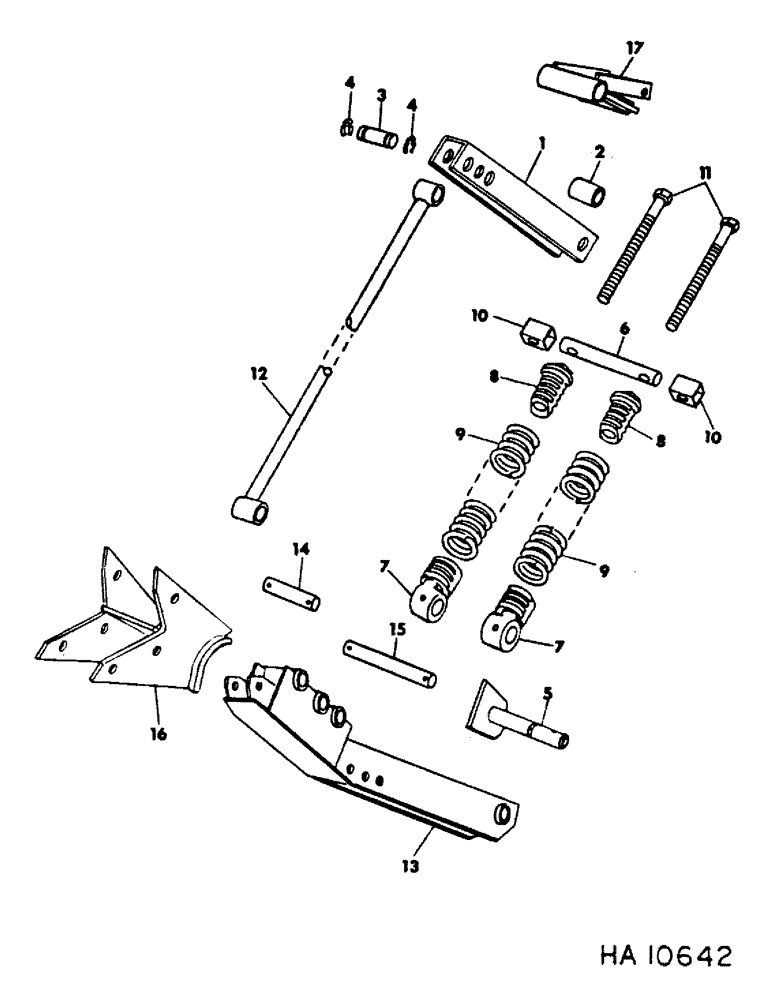

Запчасти Case IH DUAL (C-40) - DUAL AUGER, HEADER FLOTATION AND ARM

1

828371C2

CHANNEL

lift upper

2шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

3/4 x 3-1/2 type 5

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

2

828443C1

SPACER

upper lift channel pivot

2шт.

3

828150C1

PIN,25.4mm OD x 71.88mm L

lift rod upper

4шт.

4

827695C1

CIRCLIP

RING, retaining

8шт.

5

831175C1

PIN

ASSY, lower lift arm pivot

2шт.

616387R1

PIN,3/8" x 2", Coiled

2шт.

21226R1

WASHER

1.28 x 2.000 x .105

6шт.

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING, 1/4 PTF w/short lub

2шт.

6

831855C1

PIN

spring anchor upper

2шт.

7

596398R1

PLUG

spring loer

4шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 PTF short 90D lub

4шт.

8

826734C1

LUG

PLUG, spring upper

4шт.

9

827694C1

SPRING

float

4шт.

10

831827C1

SPACER

spring anchor pin

4шт.

11

828145C1

BOLT,Hex, 3/4" - 10 x 11", Gr 8

float spring tension

4шт.

280954

NUT,3/4"-10, G5

4шт.

467750R1

WASHER

.781 x 1.500 x .105

4шт.

12

828369C1

ROD

ASSY, lift

2шт.

13

832263C1

ARM

ASSY, lift lower

2шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

14

831017C1

PIN

5.9 inch lift rod lower anchor

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

609836R1

WASHER

1.031 x 1.750 x .054

8шт.

15

828444C1

PIN

9.8 inch lift rod and spring anchor lower

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

609836R1

WASHER

1.031 x 1.750 x .054

8шт.

16

831895C1

PIVOT

ASSY, lower lift arm front

2шт.

24860R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

12шт.

25526R1

NUT,1/2"-13, G8

1/2 PHC type 8

12шт.

17

832426C1

PIVOT

ASSY, float spring upper, for either or both floats

1шт.

191163

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8 x 4 type 5

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.
