Запчасти Case IH DUAL (C-39) - DUAL AUGER, MOTOR, REEL DRIVE VARIABLE SPEED

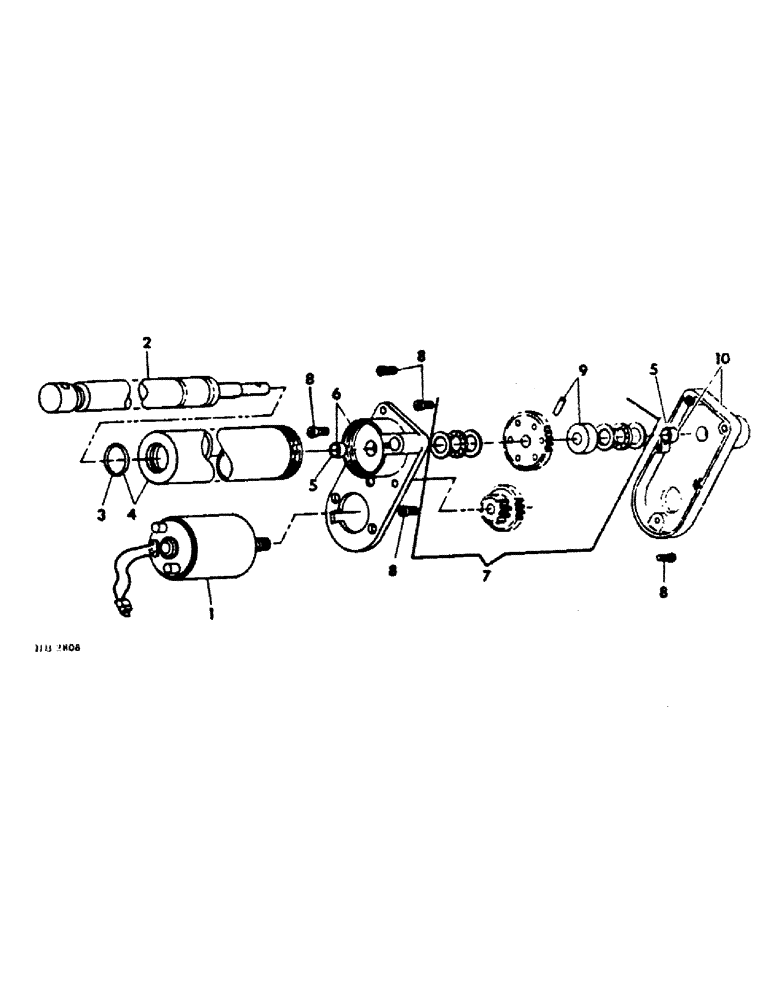

Схема запчастей Case IH DUAL - (C-39) - DUAL AUGER, MOTOR, REEL DRIVE VARIABLE SPEED

Артикул

Название

Примечание

Количество

1

116220C94

MOTOR

ASSY, variable speed reel drive

1шт.

1

133236C2

ELECTRIC MOTOR

MOTOR AND PINION ASSY

1шт.

2

133233C1

KIT

JACKSCREW & EXTENSION TUBE ASSY, motor

1шт.

3

133239C1

KIT

O-RING, wiper, for service order 1253749C1 package

1шт.

4

133252C1

TUBE

COVER ASSY, motor

1шт.

5

133237C1

KIT

PACKAGE, bushing, package of two, for service order 1253749C1 package

1шт.

6

133235C2

HOUSING

ASSY, front

1шт.

7

133232C4

KIT

GEARS AND ROLLER BEARINGS ASSY, motor

1шт.

8

133238C1

KIT

PACKAGE, housing screw, package of five for service order 1253749C1 package

1шт.

9

133253C2

PIN

AND RETAINER ASSY, motor

1шт.

10

133234C5

HOUSING

ASSY, rear

1шт.

1253749C2

PACKAGE, motor service, consists of (1) screw #10 (NSS), (1) screw #8 (NSS), (1) o-ring (NSS), (1) bearing (NSS), (1) bearing (NSS), (1) gasket (NSS), (1) gear, pinion (NSS), (2) bushing (NSS)

1шт.

Выбрано товаров: 12
