(C-38) - DUAL AUGER, SLAVE REEL LIFT CYLINDER, 1.0 X 9.38 RAM TYPE

Запчасти Case IH DUAL (C-38) - DUAL AUGER, SLAVE REEL LIFT CYLINDER, 1.0 X 9.38 RAM TYPE

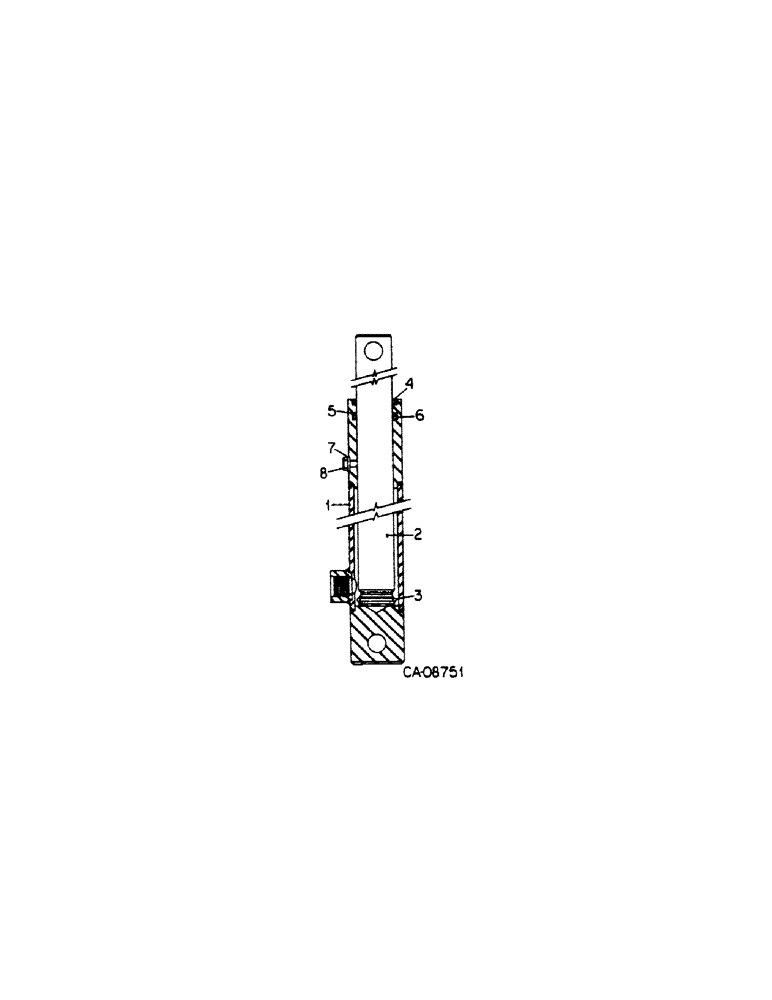

Схема запчастей Case IH DUAL - (C-38) - DUAL AUGER, SLAVE REEL LIFT CYLINDER, 1.0 X 9.38 RAM TYPE
6
8
5
3
7
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

825295C91

CYLINDER

ASSY, reel lift slave

1шт.

1

_

BODY ASSY, cylinder, order cylinder assy (NSS)

1шт.

2

609985R1

ROD

piston

1шт.

3

RING, rod lock (NSS)

1шт.

4

WIPER, piston rod (NSS)

1шт.

5

WASHER, o-ring back-up (NSS)

1шт.

6

O-RING, 1 x 1-1/4

6шт.

7

WASHER, Dyna-Seal (NSS)

1шт.

8

SCREW, #10-24 x 3/16 hex-hd mach (NSS)

1шт.

826027C91

SEAL KIT

KIT, o-ring and seal service, consists of ref nos 3 thru 8

1шт.

532763R91

CYLINDER

ASSY, reel lift slave

1шт.
