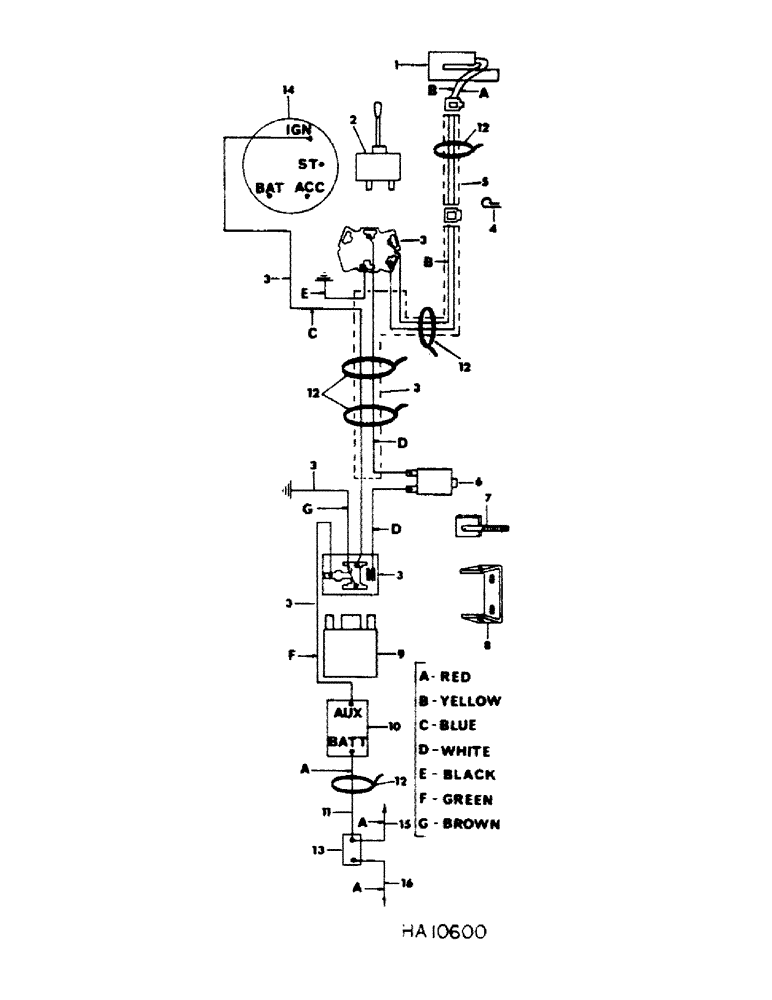

Запчасти Case IH DUAL (C-36) - DUAL AUGER, ELECTRICAL SYSTEM, FOR REEL DRIVE VARIABLE SPEED

1

116220C94

MOTOR

ASSY, variable reel, drive control for service parts refer to motor, reel drive variable speed

1шт.

21932R1

HEADED PIN,1/2" x 2"

PIN, 1/2 x 2.000 dld hd

1шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN, 1/2 x 2.500 dld hd

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

20601R1

WASHER

.531 x 1.250 x .105 flat

2шт.

2

529933R91

SWITCH

ASSY, variable reel drive control

1шт.

3

832085C1

HARNESS

ASSY, control main wiring

1шт.

4

117762H

CLIP,3/16", Insul, 3/8" Bolt

CLAMP, harness

1шт.

5

831776C2

HARNESS

ASSY, motor wiring

1шт.

6

393209R91

SWITCH

neutral safety

1шт.

7

832082C1

STUD

ASSY, safety switch actuating

1шт.

120376

NUT,5/16"-18, G5

2шт.

8

831532C1

SUPPORT

switch

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

.406 x 1.000 x .054 flat

2шт.

9

823537C1

RELAY

1шт.

10

403069R1

CIRCUIT-BREAKER,30A

BREAKER, circuit

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

10-24 x 1 pan-hd slt mach

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

607893R1

WASHER

.203 x .500 x .054

1шт.

11

831778C1

CABLE

circuit breaker

1шт.

12

306132C1

CABLE TIE,14.5" L

STRAP, tie

15шт.

13

128359H1

BREAKER

circuit, for connecting part refer to chassis parts catalog

1шт.

14

677221R91

SWITCH

ASSY, key ignition w/keys

1шт.

15

WIRE, red, part of main harness to main fuse holder, refer to chassis parts catalog electrical system section 08

1шт.

16

WIRE, red, part of main harness to batt terminal starter solinoid refer to chassis parts catalog electrical system section 08

1шт.
