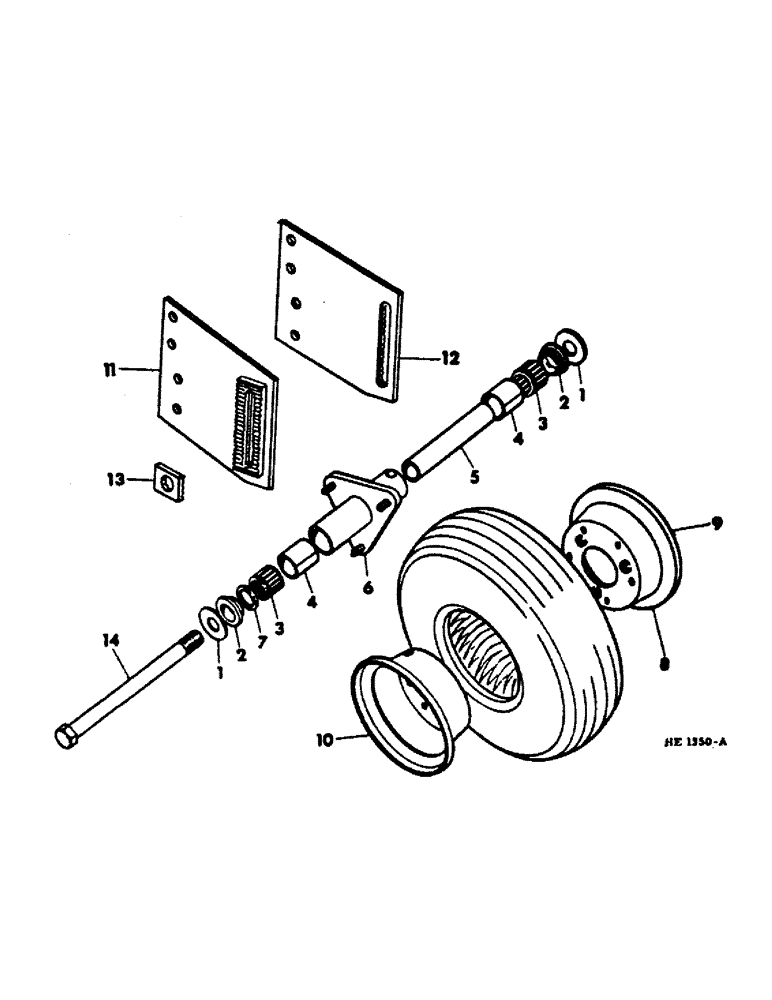

Запчасти Case IH DUAL (C-35) - DUAL AUGER, HEADER GAUGE WHEEL

1

619505R1

WASHER

wheel hub

4шт.

2

617383R1

BUSHING,26.19mm ID x 35.13mm OD x 6.35mm L

RETAINER, wheel

4шт.

3

561478R91

BEARING, ROLLER,1" ID x 1.375" OD x 1"

BEARING, wheel

4шт.

4

617382R1

SPACER

wheel

4шт.

5

617387R1

SLEEVE,19.3mm ID x 25.4mm OD x 146.05mm L

wheel hub support

2шт.

6

617384R91

HUB

ASSY, guage wheel, includes 3-607140R1 stud, 3-607141R1 nut and 1-109454 fitting

2шт.

607140R1

BOLT,3/8" - 24 x 7/8", Steel

STUD, 3/8-24 x 7/8

6шт.

607141R1

NUT

3/8-24 hex

6шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 lub

2шт.

7

617381R1

WASHER

hub spacer

2шт.

8

TIRE AND TUBE, 5.30/4.50, 6 ply rib w/TR87 valve

2шт.

9

596310R1

WHEEL

DISC, wheel inner

2шт.

10

596311R1

WHEEL

DISC, wheel outer

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

11

832028C1

SUPPORT

ASSY, gauge wheel LH outer and RH inner

2шт.

12

832029C1

SUPPORT

ASSY, gauge wheel RH outer and LH inner

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

7шт.

120384

WASHER,1/2"

LOCK, 1/2"

7шт.

13

594414R1

WASHER

axle adjuster

4шт.

14

21702R1

BOLT,Hex, 3/4" - 10 x 8 1/2", Gr 5

3/4-10 x 8-1/2 hex-hd wheel support

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.
