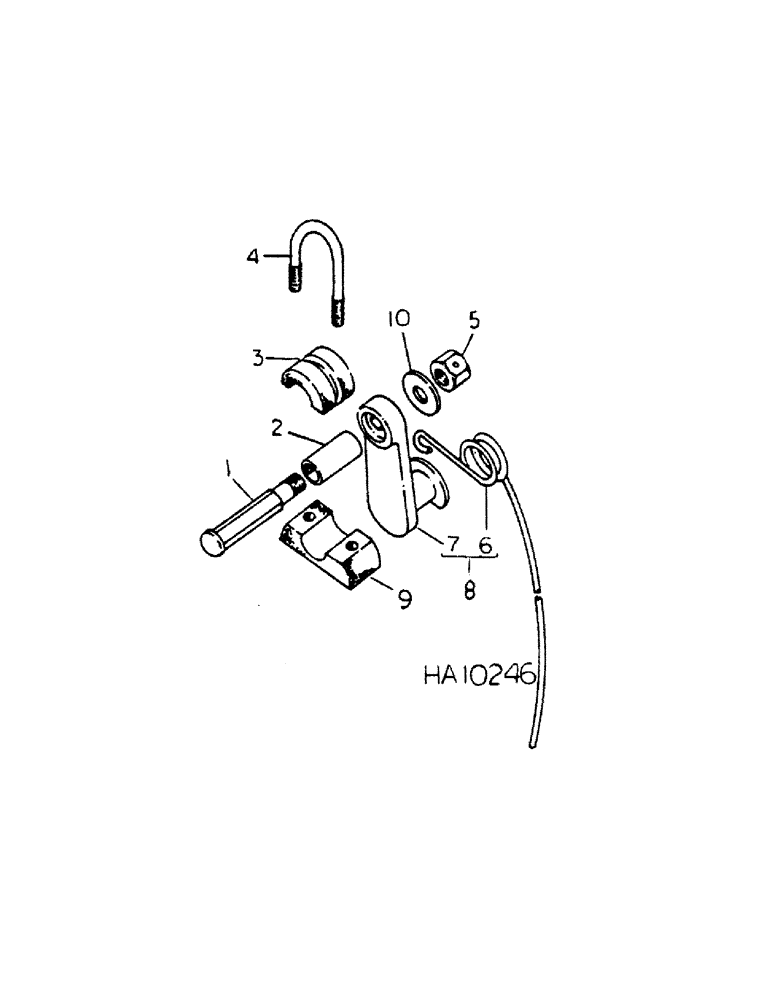

Запчасти Case IH DUAL (C-34) - DUAL AUGER, PICK-UP REEL FINGER, 12 FT, 14 FT AND 16 FT

1

827385C1

BOLT,Rnd Hd, Spcl Shank, 1/2" x 2 1/2"

special shank

10шт.

2

598246R1

SPACER

shank bolt

10шт.

3

598235R1

BEARING CAP,1.025"

BEARING, pick-up finger outer

10шт.

4

598236R1

U-BOLT,U, 1/4" - 20

finger bearing clamp

10шт.

*

9413950

LOCK NUT,1/4"-20, GB

NUT, 1/4-20 hex-lock

20шт.

5

9411818

NUT

1/2-NF cad p/t lock type 5

10шт.

6

598182R1

FINGER

pick-up LH shown

5шт.

6

598183R1

FINGER

pick-up RH

5шт.

7

592627R21

STRAP

finger

10шт.

8

598180R91

FINGER

ASSY, pick-up LH shown, replaces 598180R91 by ordering 1-598182R1 finger and 1-592627R21 strap

5шт.

8

598181R91

FINGER

ASSY, pick-up RH, replaces 598181R91 by ordering 1-598183R1 finger and 1-592627R21 strap

5шт.

9

598234R1

BASE

BEARING, pick-up finger inner

10шт.

10

178374R1

WASHER

.531 x 1.250 x .054

10шт.
