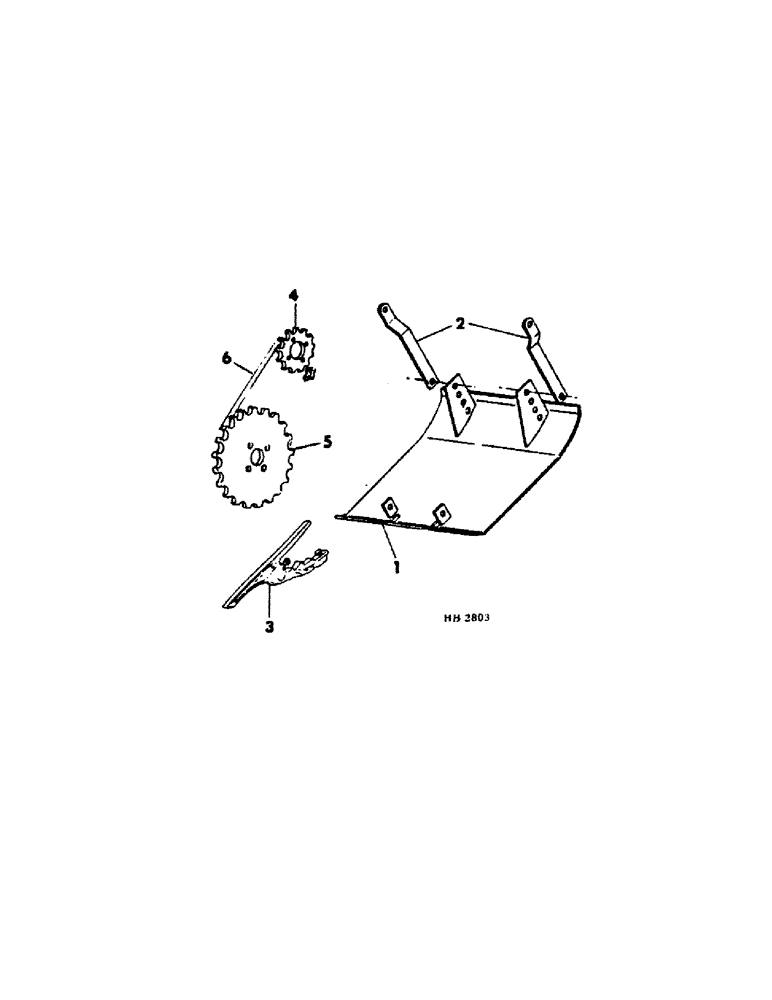

Запчасти Case IH DUAL (C-34[1]) - SKID SOLE AND PEA CUTTING PARTS FOR USE WITH PEA PICK-UP

1

832078C1

SOLE

ASSY, skid

2шт.

*

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

*

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

*

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

596283R2

BRACE

skid sole adjusting

4шт.

*

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex hd

4шт.

*

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex hd

4шт.

*

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

*

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

3

596280R92

TAPPET

LIFTER ASSY, pea

15шт.

4

592960R1

SPROCKET ASSY.

SPROCKET, 20T countershaft drive slow speed

1шт.

5

595968R1

SPROCKET ASSY.

SPROCKET, 52T countershaft driven slow speed

1шт.

6

CHAIN, countershaft drive use 67 links of 5/8 inch singel pitch roller chain from a 10 ft roll 1791-D and add one connecting link 1310-D and two offset link 1315-D

1шт.

*

1310D

LINK

#50 single pitch connecting

1шт.

*

1315D

LINK

#50 single pitch offset

2шт.
