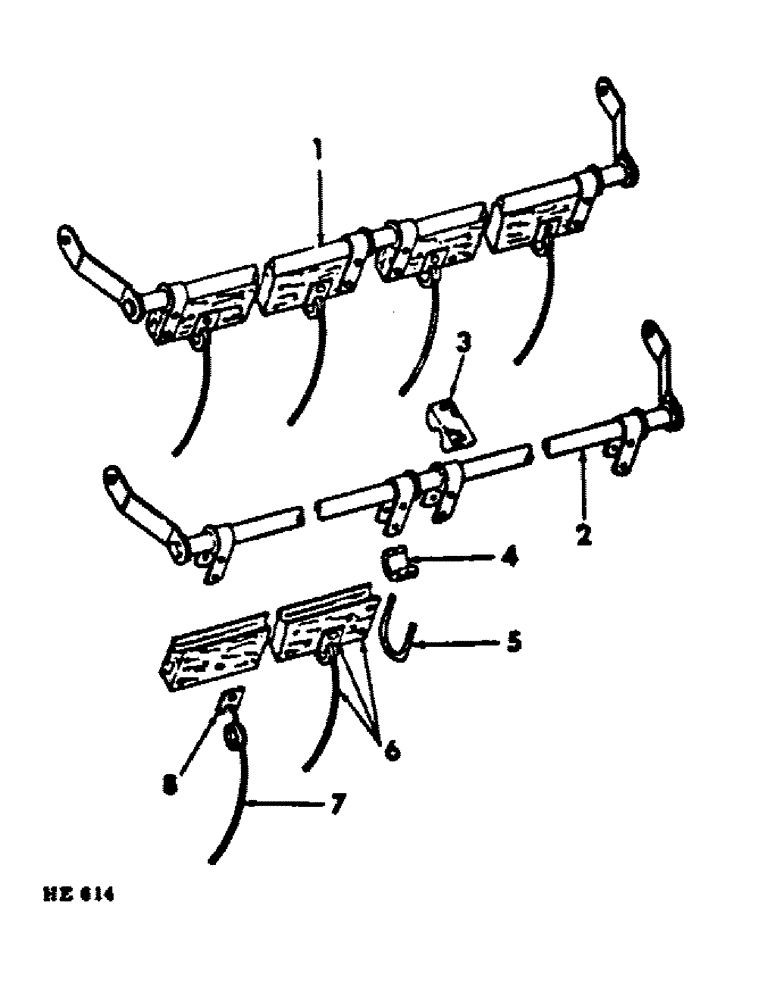

Запчасти Case IH DUAL (C-33) - DUAL AUGER, PICK-UP REEL BATSHAFT AND BAT, 12 FT, 14 FT AND

1

598224R91

BAT

ASSY, header reel 12 ft, consists of (1) bat shaft 598225R1, (2) bat assy 598226R91, (16) bolt 18629R1, (16) nut 378531R1

5шт.

1

598227R91

BAT

ASSY, header reel 14 ft, consists of (1) batshaft 598228R1, (2) bat assy 598189R91, (1) bat assy 598229R91, (24) bolt 18629R1, (24) nut 378531R1

1шт.

1

598230R91

BAT

ASSY, header reel 16 ft, consists of (1) bat shaft 598231R1, (2) bat assy 598233R91, (1) bat assy 598232R91, (24) bolt 18629R1, (24) nut 378531R1

1шт.

2

598225R1

SHAFT

BATSHAFT, header reel 12 ft

5шт.

2

598228R1

SHAFT

BATSHAFT, header reel 14 ft

5шт.

2

598231R1

SHAFT

BATSHAFT, header reel 16 ft

5шт.

3

598234R1

BASE

BEARING, reel bat inner half, 15 used 12 ft, 20 used 14 ft & 16 ft

1шт.

4

598235R1

BEARING CAP,1.025"

BEARING, reel bat outer half, 15 used 12 ft, 20 used 14 ft & 16 ft

1шт.

5

598236R1

U-BOLT,U, 1/4" - 20

bearing clamping, 15 used 12 ft, 20 used 14 ft & 16 ft

1шт.

9413950

LOCK NUT,1/4"-20, GB

NUT, 1/4-20 hex lock, 4 per bolt

1шт.

6

598226R91

BAT

ASSY, header reel batshaft, 12 ft, consists of (14) tine 598171R1, (14) clip 592616R1, (14) rivet 20901R1

10шт.

20901R1

RIVET

3/16 x 1 semi-tubular oval hd

140шт.

18629R1

SCREW,Short NK, 1/4"-20 x 1 1/2", G2

BOLT, 1/4-20 x 1-1/2 type 1 crg

80шт.

378531R1

LOCK NUT,1/4"-20, GA

NUT, 1/4-20 hex lock

80шт.

6

598229R91

BAT

ASSY, header reel batshaft inner 14 ft, consists of (12) tine 598171R1, (12) clip 592616R1, (12) rivet 20901R1

5шт.

20901R1

RIVET

3/16 x 1 semi-tubular oval hd

60шт.

18629R1

SCREW,Short NK, 1/4"-20 x 1 1/2", G2

BOLT, 1/4-20 x 1-1/2 type 1 crg

40шт.

378531R1

LOCK NUT,1/4"-20, GA

NUT, 1/4-20 hex-lock

40шт.

6

598189R91

BAT

ASSY, header reel batshaft outer 14 ft, consists of (11) tine 598171R1, (11) clip 592616R1, (11) rivet 20901R1

10шт.

20901R1

RIVET

3/16 x 1 semi tubular oval hd

110шт.

18629R1

SCREW,Short NK, 1/4"-20 x 1 1/2", G2

BOLT, 1/4-20 x 1-1/2 type 1 crg

80шт.

378531R1

LOCK NUT,1/4"-20, GA

NUT, 1/4-20 hex-lock

8шт.

6

598232R91

BAT

ASSY, header reel bat shaft inner, 16 ft, consists of (12) tine 598171R1, (12) clip 592616R1, (12) rivet 20901R1

5шт.

20901R1

RIVET

3/16 x 1 semi tubular oval hd

60шт.

18629R1

SCREW,Short NK, 1/4"-20 x 1 1/2", G2

BOLT, 1/4-20 x 1-1/2 type 1 crg

40шт.

378531R1

LOCK NUT,1/4"-20, GA

NUT, 1/4-20 hex-lock

40шт.

6

598233R91

BAT

ASSY, header reel batshaft outer 16 ft, consists of (13) tine 598171R1, (13) clip 592616R1, (13) rivet 20901R1

10шт.

20901R1

RIVET

3/1L x 1 semi tubular oval hd

13шт.

18629R1

SCREW,Short NK, 1/4"-20 x 1 1/2", G2

BOLT, 1/4-20 x 1-1/2 type 1 crg

80шт.

378531R1

LOCK NUT,1/4"-20, GA

NUT, 1/4-20 hex-lock

80шт.

7

598171R1

TINE,Coiled, 1 Prong, 283mm L

bat, 140 used 12 ft, 170 used 14 ft, 190 used 16 ft

1шт.

8

592616R1

CLIP

bat tine, 1 per tine

1шт.

20901R1

RIVET

3/16 x 1 semi tubular oval hd, 1 per clip

1шт.
