Запчасти Case IH DUAL (C-32) - DUAL AUGER, REEL BATSHAFT AND FINGERS 12 FT & 14 FT, HEAVY

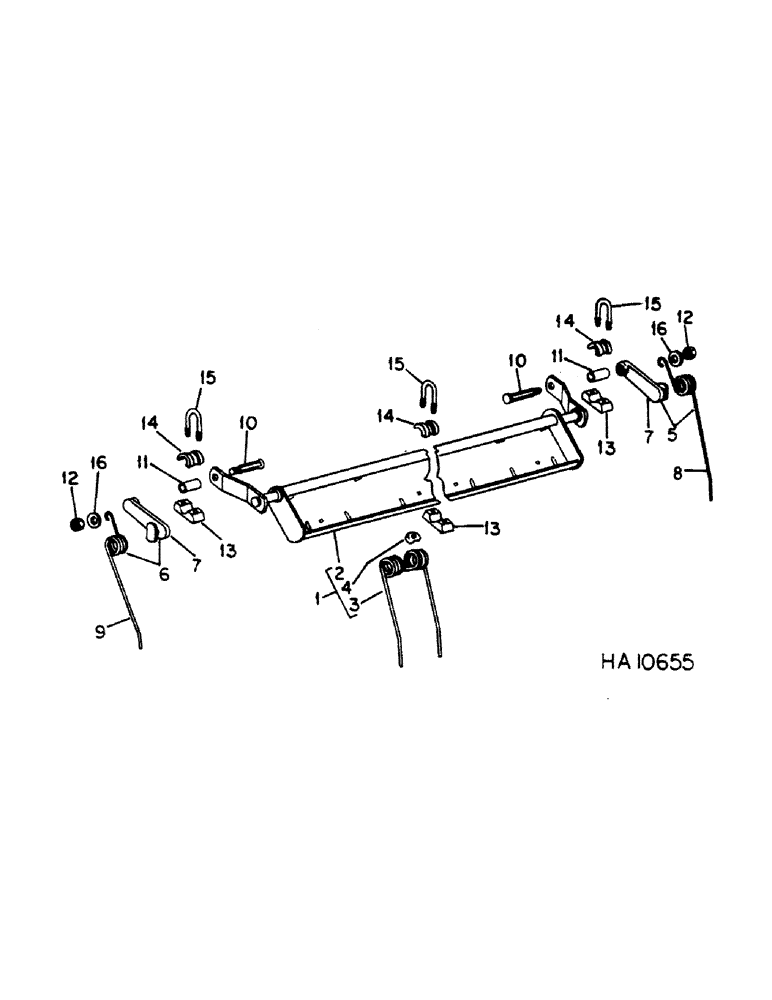

Схема запчастей Case IH DUAL - (C-32) - DUAL AUGER, REEL BATSHAFT AND FINGERS 12 FT & 14 FT, HEAVY

Артикул

Название

Примечание

Количество

1

BATSHAFT ASSY, w/tines 12 ft

5шт.

1

BATSHAFT ASSY, w/tines 14 ft, for service order components consists of ref nos 2 thru 4

5шт.

2

826276C1

BAT

SHAFT L/FINGERS, 12 ft

5шт.

2

826278C1

BAT

SHAFT L/FINGERS, 14 ft

5шт.

3

826290C1

FINGER

double spring, 80 used 12 ft, 95 used 14 ft

1шт.

4

595876R1

COVER

CLIP, finger, 80 used 12 ft, 95 used 14 ft

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5, 1 per clip

1шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cdp hex. lock, 1 per clip

1шт.

5

598526R91

FINGER

ASSY, pick-up LH, replaces 598526R91 by ordering 1-598527R1 finger and 1-592627R21 strap

1шт.

6

598528R91

FINGER

ASSY, pick-up RH, replaces 598528R91 by ordering 1-598529R1 finger and 1-592627R21 strap

1шт.

7

592627R21

STRAP

finger

10шт.

8

598527R1

FINGER

pick-up LH

5шт.

9

598529R1

FINGER

pick-up RH

5шт.

10

827385C1

BOLT,Rnd Hd, Spcl Shank, 1/2" x 2 1/2"

spec shank

10шт.

11

598246R1

SPACER

shank bolt

10шт.

12

9411818

NUT

1/2 NF cad p/t lock type 5

10шт.

13

598234R1

BASE

BEARING, bat & finger inner half, 25 used 12 ft, 30 used 14 ft

1шт.

14

598235R1

BEARING CAP,1.025"

BEARING, bat & finger outer half, 25 used 12 ft, 30 used 14 ft

1шт.

15

598236R1

U-BOLT,U, 1/4" - 20

bearing, 1 per bearing set

1шт.

9413950

LOCK NUT,1/4"-20, GB

NUT, 1/4 PHC p/t lock type 5, 2 per u-bolt

1шт.

16

178374R1

WASHER

.531 x 1.250 x .054

10шт.

Выбрано товаров: 21
