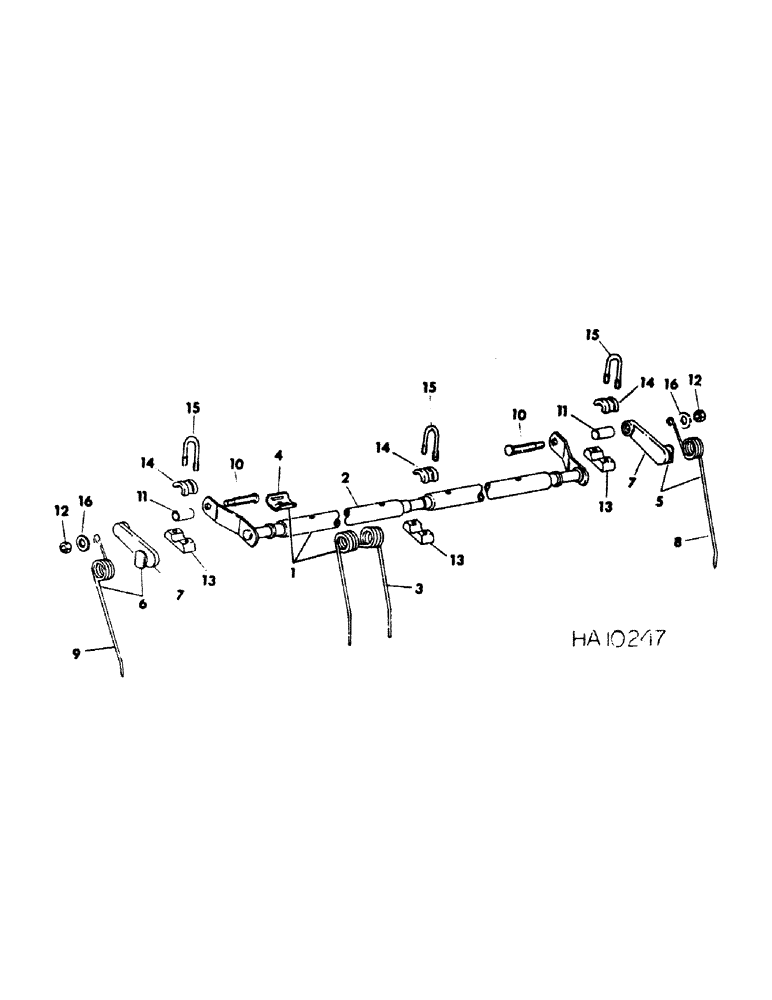

Запчасти Case IH DUAL (C-31) - DUAL AUGER, REEL BATSHAFT AND FINGERS 12 FT, FOR USE W/PEA

1

BATSHAFT ASSY, w/tines, for service order components, consists of (1) bat shaft 832465C1, (14) tine R15080, 14 clip RA15086, (14) bolt 598812R1, (14) nut 385525R1

1шт.

2

832465C1

BAT

SHAFT ASSY, l-tines

5шт.

3R15080

TINE, double spring

70шт.

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, 3/8-16 x 2 carriage

70шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex lock

70шт.

4

RA15086

CLIP

tine

70шт.

5

598526R91

FINGER

ASSY, pick-up LH, replaces 598526R91 by ordering 1-598527R1 finger and 1-592627R21 strap

1шт.

6

598528R91

FINGER

ASSY, pick-up RH, replaces 598528R91 by ordering 1-598529R1 finger and 1-592627R21 strap

1шт.

7

592627R21

STRAP

finger

10шт.

8

598527R1

FINGER

pick-up LH

5шт.

9

598529R1

FINGER

pick-up RH

5шт.

10

827385C1

BOLT,Rnd Hd, Spcl Shank, 1/2" x 2 1/2"

spcl, shank

10шт.

11

598246R1

SPACER

shank bolt

10шт.

12

9411818

NUT

1/2-NF cad p/t lock type 5

10шт.

13

598234R1

BASE

BEARING, bat & finger inner half

25шт.

14

598235R1

BEARING CAP,1.025"

BEARING, bat & finger outer half

25шт.

15

598236R1

U-BOLT,U, 1/4" - 20

bearing

25шт.

9413950

LOCK NUT,1/4"-20, GB

NUT, 1/4-20 prev. torque hex lock

50шт.

16

178374R1

WASHER

.531 x 1.250 x .054

10шт.
