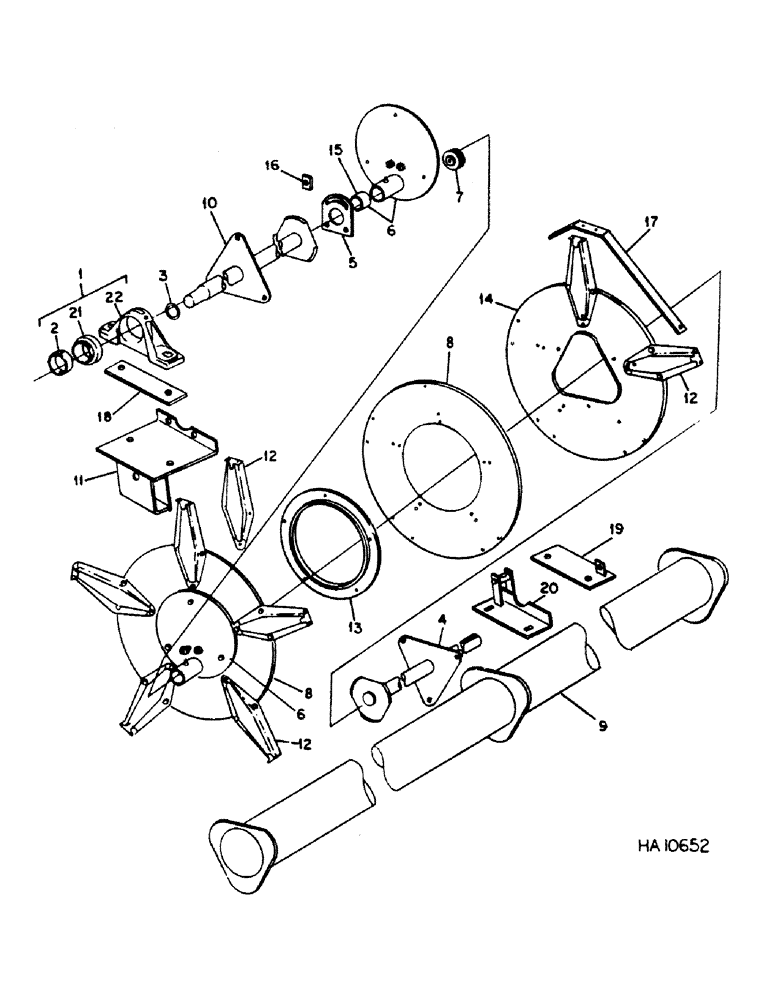

Запчасти Case IH DUAL (C-29) - DUAL AUGER, PICK-UP REEL CENTER SHAFT, 12 FT & 14 FT HEAVY

1

585508C91

BEARING ASSY, end shaft support includes 1-109461 fitting, 1-557113R91 bearing

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/8 PTF short 90 deg

2шт.

2

557113R11

COLLAR

W/SET SCREW, locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 pln c/pt hol/hs set

2шт.

3

23040R1

WASHER

1.656 x 2.250 x .105

2шт.

4

827004C1

SHAFT

reel end drive RH

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

3шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cop hex. lock

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

5

827703C1

BAR

PLATE, eccentric adjustment

2шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4 type 5

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

6

180507C1

HUB ASSY.

FRAME ASSY, eccentric roller, includes 2-167666C1 bushing

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/8 PTF short 90 deg

2шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 crg type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

.531 x 1.250 x .105

2шт.

7

598242R91

ROLLER BEARING,0.376" ID x 2.25" OD x 1"

BEARING, eccentric roller frame

6шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

8

598238R1

RETAINER

PLATE, eccentric roller frame

2шт.

9

598210R1

TUBE

SHAFT, reel center 12 ft

1шт.

9

598211R1

TUBE

SHAFT, reel center 14 ft

1шт.

10

827005C1

SHAFT

reel end driven LH

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

3шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 CDP hex. lock

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

11

827009C1

BRACKET

eccentric adjusting

2шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN, 1/2 x 2.500 hd type 1

2шт.

599744R1

AXLE PIN

PIN, QA cotter

2шт.

12

167654C1

ARM

reel bat and finger support, replaces 167657C1, 25 used 12 ft, 30 used 14 ft

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

10шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

65 used 12 ft, 80 used 14 ft Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 per bolt 5/16"

1шт.

13

598240R1

RETAINER

RING, eccentric control

2шт.

14

598219R1

SHIELD

PLATE, spider, 3 used 12 ft, 4 used 14 ft

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

6шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cop hex. lock

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

15

167686C1

BUSHING, eccentric frame assy

4шт.

16

378792C1

BAR

eccentric slot adj spacer

2шт.

17

832467C1

BRACE

reel arm, 25 used 12 ft, 30 used 14 ft

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT, 1/4 x 1/2 crg type 5, 1 per brace

1шт.

378531R1

LOCK NUT,1/4"-20, GA

NUT, 1/4 hex. lock, 2 way, 1 per bolt

1шт.

18

827007C1

BAR

LH bearing shim, part of reel assy

1шт.

19

827008C1

BRACKET

ASSY, spring rod front RH, for use w/manual variable speed reel drive, part of reel assy

1шт.

20

823970C1

BRACKET

ASSY, spring rod front RH, for use w/electrical actuated variable speed reel drive, not part of reel assy

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2 type 5

4шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2 cad p/t lock type 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

178374R1

WASHER

.531 x 1.250 x .054

4шт.

21

585511R91

BALL BEARING,1.438" ID x 72 mm OD x 1.484375"

ASSY, end shaft support

2шт.

22

HOUSING, bearing support, for service order 585508C91 bearing assy

2шт.
