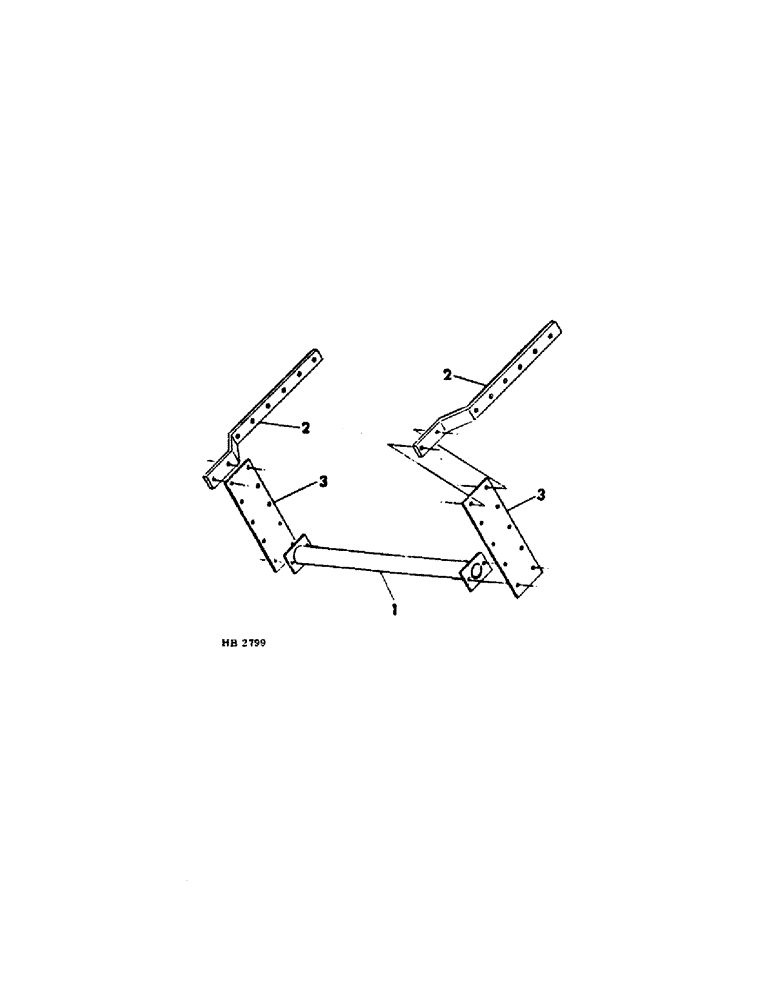

Запчасти Case IH DUAL (C-26[2]) - BREAKOVER BAR

1

823571C2

BAR ASSY.

BAR ASSY, 12 ft header breakover, replaces 824053C1

1шт.

1

823572C2

BAR

ASSY, 14 ft header breakover, replaces 826283C1

1шт.

1

823573C2

BAR ASSY.

BAR ASSY, 16 ft header breakover

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

4шт.

120384

WASHER,1/2"

LOCK, , The following parts are for mounting C1 bar assemblies 1/2"

4шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

832096C2

SUPPORT

breakover bar

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

823288C3

CHANNEL

BAR, breakover bar adjusting

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, , The following parts are for mounting C2 bar assembly 1/2"

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.
