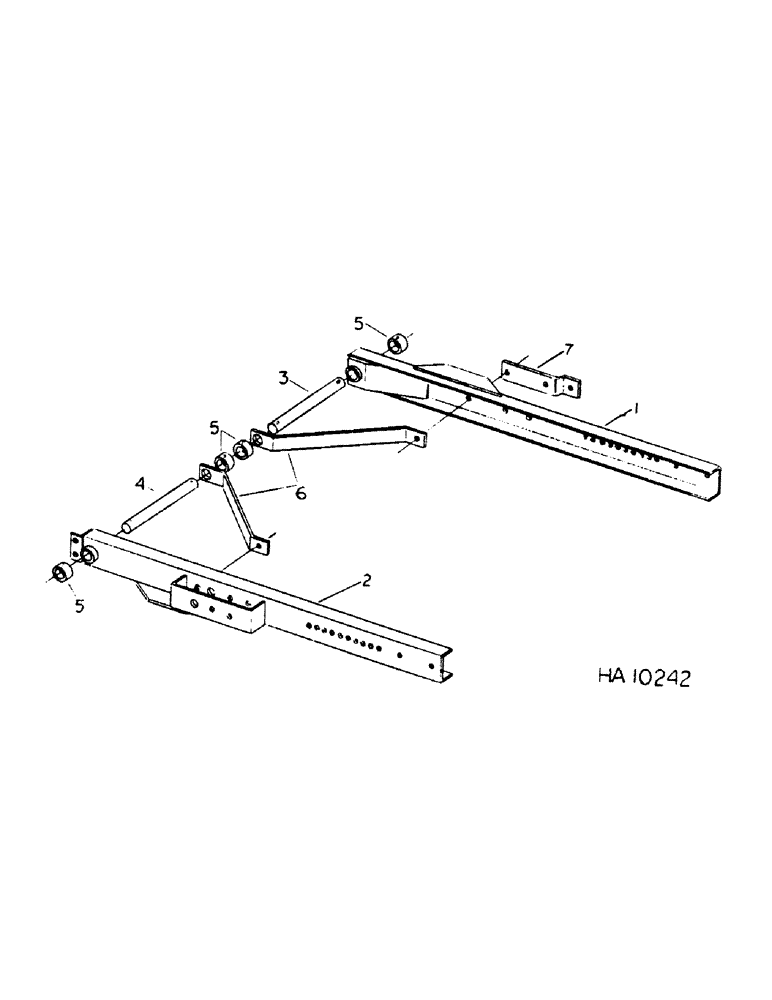

Запчасти Case IH DUAL (C-25) - DUAL AUGER, REEL SUPPORT ARMS

1

831952C1

ARM

ASSY, LH reel support

1шт.

2

831953C1

ARM

ASSY, RH reel support

1шт.

3

832372C1

SHAFT

reel arm LH

1шт.

4

832373C1

SHAFT

reel arm RH, not for use with electrical motor variable speed reel drive

1шт.

5

824529C1

BUSHING

reel arm lock, 2 used LH side, 2 used RH side, not for use with electrical motor variable speed reel drive

1шт.

616387R1

PIN,3/8" x 2", Coiled

4шт.

608700R1

WASHER

1.281 x 2.000 x .054

15шт.

6

832075C1

BRACE

reel support arm

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

831979C2

SUPPORT

master reel lift cyl upper

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
