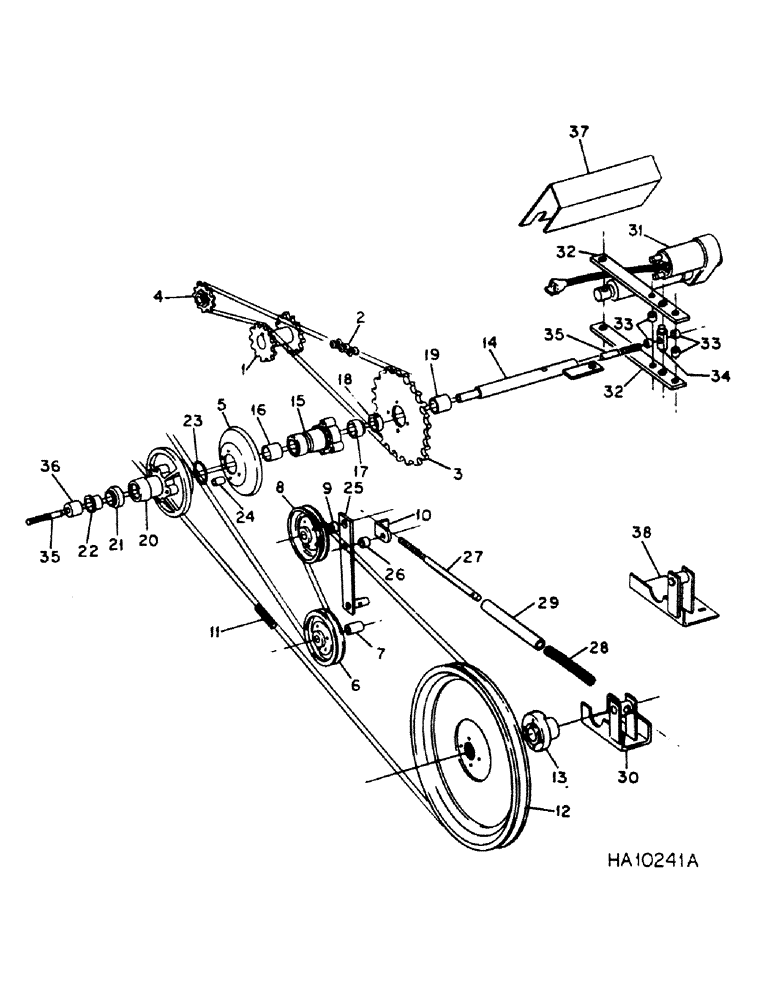

Запчасти Case IH DUAL (C-23) - DUAL AUGER, REEL DRIVE, ELECTRICAL ACTUATED VARIABLE SPEED

1

831883C1

SPROCKET ASSY.

SPROCKET ASSY, auger & reel drive, for connecting parts refer to header drive

1шт.

Q3936

KEY,Gib, 5/16" Sq x 2 1/2"

5/16 x 2-1/2 gib hd

1шт.

2

CHAIN, reel drive, use 101 links of 5/8 inch single pitch roller chain from a 10ft roll 1791-D and add one connecting link 1310-D

1шт.

1310D

LINK

#50 single pitch connecting

1шт.

3

831123C1

SPROCKET ASSY.

SPROCKET, reel driven, 70T

1шт.

3

591910R1

SPROCKET ASSY.

SPROCKET, reel driven, 56T, special

1шт.

4

565442R91

SPROCKET

17T reel drive chain tightener

1шт.

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT, 1/2-13 x 2 crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105 flat

2шт.

5

609727R3

PULLEY

reel drive half inner

1шт.

6

607443R91

PULLEY

drive belt idler

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2-13 x 3 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105 flat

1шт.

7

450492R1

SPACER,1/2" Pipe x 1"

idler pulley

1шт.

8

574051R91

PULLEY

drive belt tightener

1шт.

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8-11 x 2-1/2 hex hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

9

M42297

SPACER

pulley

1шт.

10

824861C1

ANGLE

tight rod support

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

832044C2

BELT,156.00" L

Reel Drive 156.00" L

1шт.

12

597985R2

PULLEY

ASSY, reel driven

1шт.

454869

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16-18 x 3/4 hex-hd type 8

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

597986R1

HUB

driven pulley

1шт.

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2 gib hd

1шт.

14

831623C1

SHAFT

ASSY, reel arm RH

1шт.

21407R1

SCREW

3/8-16 x 1-1/4 sq hd cp set

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

608700R1

WASHER

1.281 x 2.000 x .054

2шт.

15

831493C1

HUB

reel drive

1шт.

16

102613R91

NEEDLE BEARING

hub needle

1шт.

17

587015R92

BEARING, ROLLER, CYL,31.75mm ID x 72mm OD x 19mm W

hub ball

1шт.

18

455104R11

COLLAR

W/SET SCREW, bearing

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 cup pt set

1шт.

19

850081C1

SPACER

bearing

1шт.

20

831494C1

PULLEY

variable speed reel drive half outer

1шт.

191163

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8-16 x 4 hex hd

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex lock

4шт.

21

618210R92

BALL BEARING,28.57mm ID x 62mm OD x 18mm W

BEARING, pulley outer half

1шт.

22

831592C1

BUSHING

pulley half

1шт.

23

21597R1

O-RING,0.21" Thk x 2.225" ID, -331, Cl 5, 75 Duro

3/16 x 2-1/4

1шт.

24

831679C2

SPACER

pulley slide

4шт.

25

831673C1

ARM

ASSY, tightener pulley

1шт.

619856R1

WASHER

.406 x 1.000 x .054 flat

1шт.

26

27251K

SPACER,5/8" Tube x 7/16"

spring rod supt angle

1шт.

27

831522C1

ROD

tightener spring

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

464623R1

WASHER

.656 x 1.500 x .105 flat

2шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

1шт.

28

202192C1

SPRING

adjusting

1шт.

29

832385C1

PIPE

adjusting spring compression

1шт.

30

831519C2

BRACKET

ASSY, spring rod front, for use w/regular pick-up reel, for use w/12 ft heavy duty pea pick-up reel, Serial Range: 1979-1981

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

31

116220C94

MOTOR

ASSY, variable reel, for service parts refer to reel drive variable motor assy

1шт.

21932R1

HEADED PIN,1/2" x 2"

PIN, 1/2 x 2.000 dld hd

1шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN, 1/2 x 2.500 dld hd

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

20601R1

WASHER

.531 x 1.250 x .105 flat

2шт.

32

831624C1

BAR

control lever

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

.406 x 1.000 x .056 flat

6шт.

33

595366R1

BUSHING

lever bar and rod spacer

4шт.

34

595241R2

TRUNNION

control rod

1шт.

35

831621C1

ROD

control

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

36

831622C1

BUSHING

control rod acutator

1шт.

37

832273C1

GUARD

control motor

1шт.

850678C1

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

SCREW, 5/16-18 x 5/8 hex-washer hd tapping

2шт.

38

823970C1

BRACKET

ASSY, spring rod front RH, for use w/12 & 14 ft heavy duty pick-up reel, for all crops, 1981 and since

1шт.
