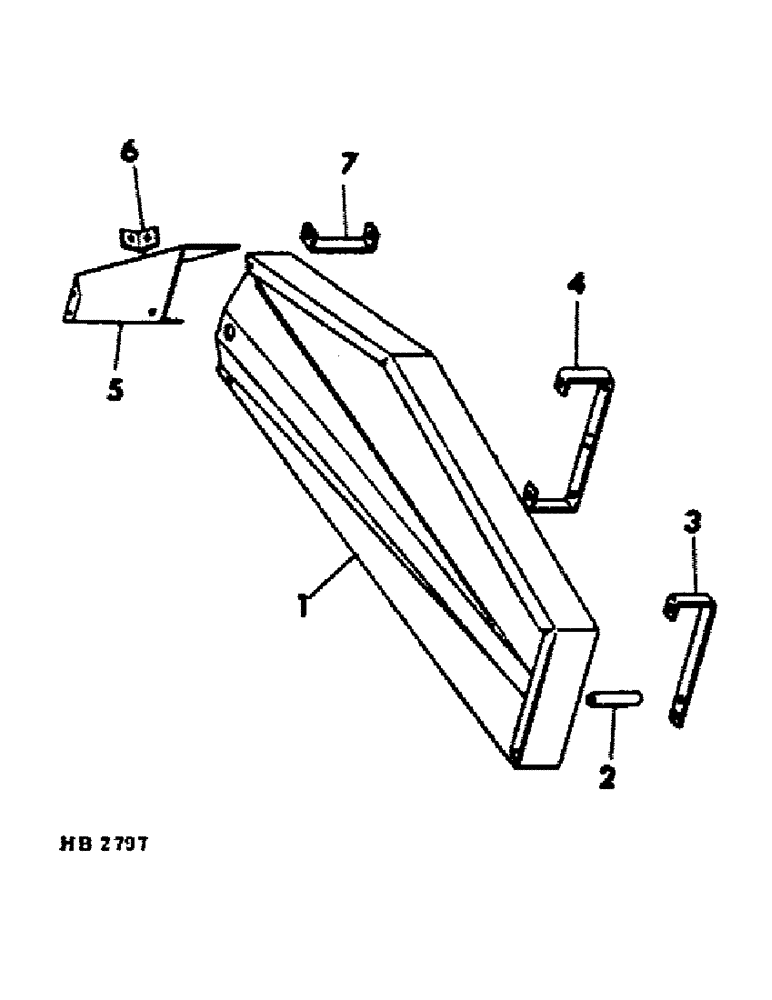

Запчасти Case IH DUAL (C-22) - DUAL AUGER, REEL DRIVE SHIELD

1

830916C1

SHIELD

ASSY, reel drive front

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16-18 x 3/4 hex flanged

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 hex flanged

5шт.

2

28182R1

SPACER,3/4" X-Strng Pipe x 5 1/4"

shield front mtg

1шт.

19952R1

BOLT,Hex, 1/2" - 13 x 7", Gr 5

1/2-13 x 7 type 1 hex hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

831983C1

SUPPORT

reel drive shield front

1шт.

4

831650C1

SUPPORT

reel drive shield rear

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

824062C91

SHIELD

reel drive rear, serial no. 792 and below, for service order 1-823859C1 shield and 1-823818C1 support

1шт.

5

823859C1

SHIELD

reel drive rear, replaces 823797C91, serial no. 793 and above

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 hex flange

3шт.

6

832225C1

ANGLE

reel drive rear shield mtg

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

831159C1

SUPPORT

reel drive rear shield, serial no. 792 and below, for service order 1-823859C1 shield and 1-823818C1 support also order w/2825058C1 rings

1шт.

7

823818C1

SUPPORT

reel drive rear shield, serial no. 793 and above

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 hex flange

1шт.
