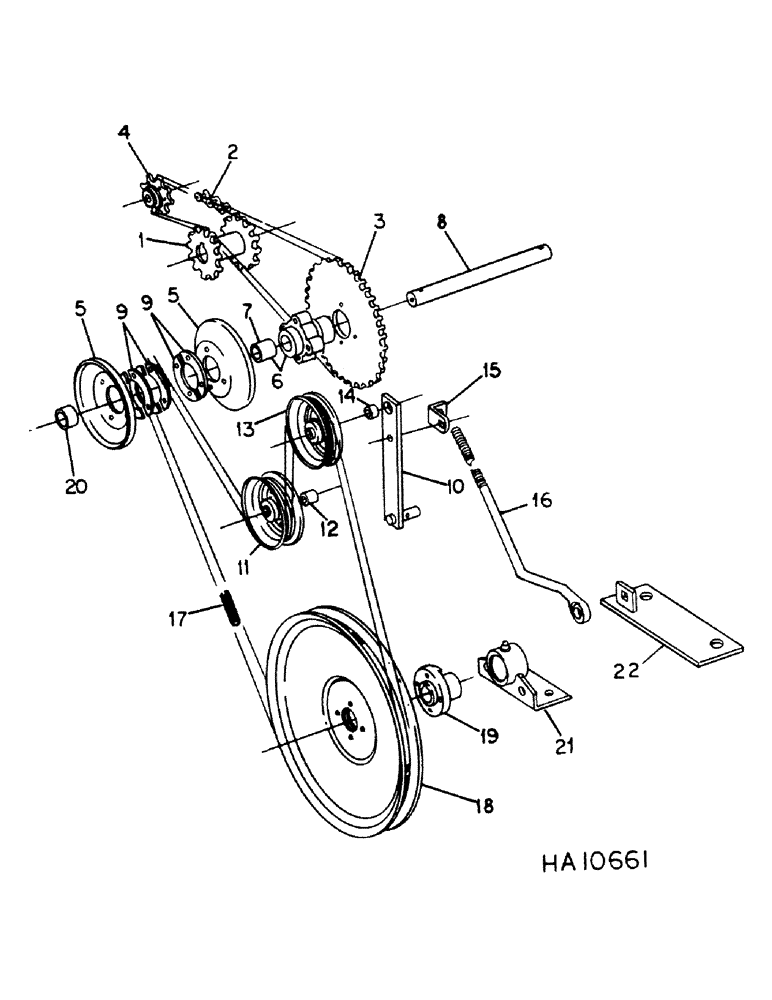

Запчасти Case IH DUAL (C-21) - DUAL AUGER, REEL DRIVE, MANUAL VARIABLE SPEED

1

831883C1

SPROCKET ASSY.

SPROCKET ASSY, auger driven RH, for connecting parts refer to header drive

1шт.

2

CHAIN, reel drive, used 101 links of 5/8 inch single pitch roller chain from a 10 ft roll 1791-D and add one connecting link 1310-D

1шт.

1310D

LINK

#50 single pitch connecting

1шт.

3

831123C1

SPROCKET ASSY.

SPROCKET, 70T reel driven

1шт.

3

591910R1

SPROCKET ASSY.

SPROCKET, 56T reel driven, special

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8-16 x 3 hex-hd

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex lock

4шт.

4

565442R91

SPROCKET

17T reel drive chain tightener

1шт.

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT, 1/2-13 x 2 crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105 flat

2шт.

5

609727R3

PULLEY

reel drive half

2шт.

6

824534C11

HUB

ASSY, reel drive

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

7

597980C1

BUSHING, hub

2шт.

8

832373C1

SHAFT

reel arm RH, for connecting parts refer to, reel support arms

1шт.

9

609726R1

RETAINER

SPACER, reel drive pulley

16шт.

10

831139C1

ARM

ASSY, tightener pulley

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

467750R1

WASHER

.781 x 1.500 x .105 flat

1шт.

11

607443R91

PULLEY

drive belt idler

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2-13 x 3 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105 flat

1шт.

12

450492R1

SPACER,1/2" Pipe x 1"

idler pulley

1шт.

13

574051R91

PULLEY

drive belt tightener

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

5/8-11 x 2-1/2 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

14

M42297

SPACER

pulley

1шт.

15

824861C1

ANGLE

tight rod support

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

16

832384C1

ROD

tightener

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

3/8-11 hex

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

17

832044C2

BELT,156.00" L

Reel Drive 156.00" L

1шт.

18

597985R2

PULLEY

ASSY, reel driven

1шт.

454869

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16-18 x 3/4 hex-hd type 8

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

19

597986R1

HUB

driven pulley

1шт.

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2 gib hd

1шт.

20

824529C1

BUSHING

reel arm locking

1шт.

608700R1

WASHER

1.281 x 2.000 x .054

1шт.

21

598215R21

BEARING ASSY,1.575" ID

ASSY, spring rod front RH, for use w/regular pick-up reel, for used w/12 ft heavy duty pea pick-up reel 1979 to 1981, part of reel assy

1шт.

22

827008C1

BRACKET

ASSY, spring rod front RH, for use w/12 & 14 ft heavy duty pick-up reel for all crops 1981 and since, part of reel assy

1шт.
