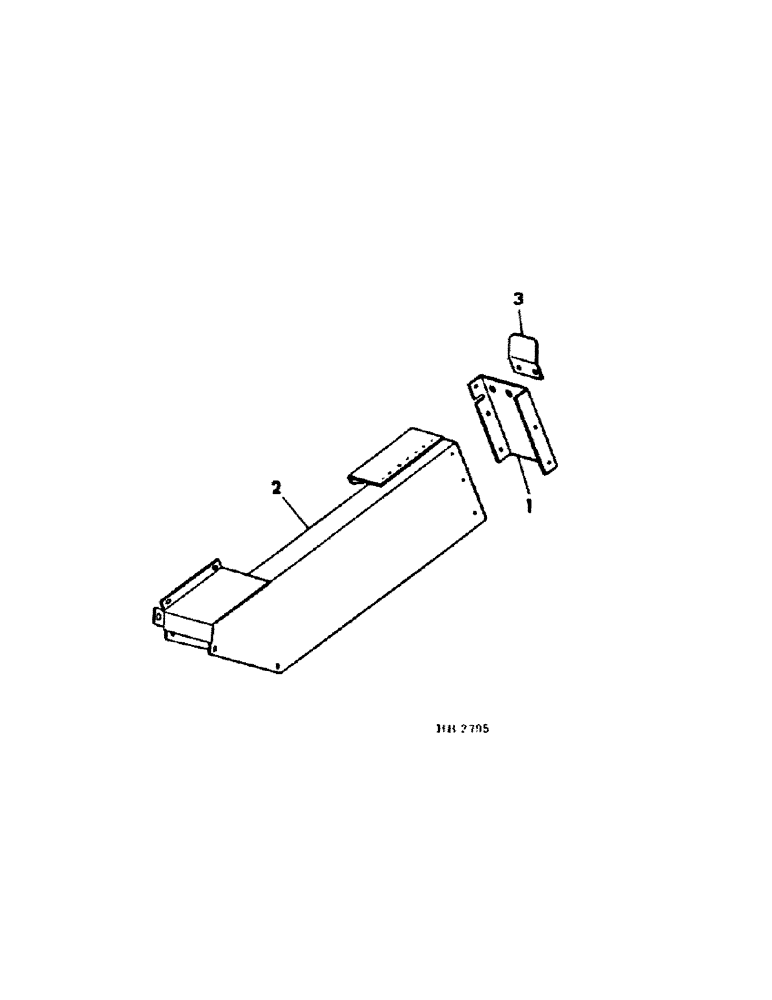

Запчасти Case IH DUAL (C-20) - DUAL AUGER, KNIFE DRIVE SHIELD, AUGER DRIVE SHIELD

1

832020C1

CHANNEL

ASSY, knife drive shield

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

823230C91

SHIELD

ASSY, knife drive prior to serial no. 902 for service order 1-823951C91, shield assy and 1-832008C2 support

1шт.

2

823951C91

SHIELD

w/product graphic, knife drive

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

3шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg

6шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 hex flanged

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

619856R1

WASHER

.406 x 1.000 x .056

2шт.

176977C1

PRODUCT GRAPHIC

danger

1шт.

3

831826C1

SUPPORT

reflector

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
