Запчасти Case IH DUAL (C-20[1]) - AUGER DRIVE SHIELD

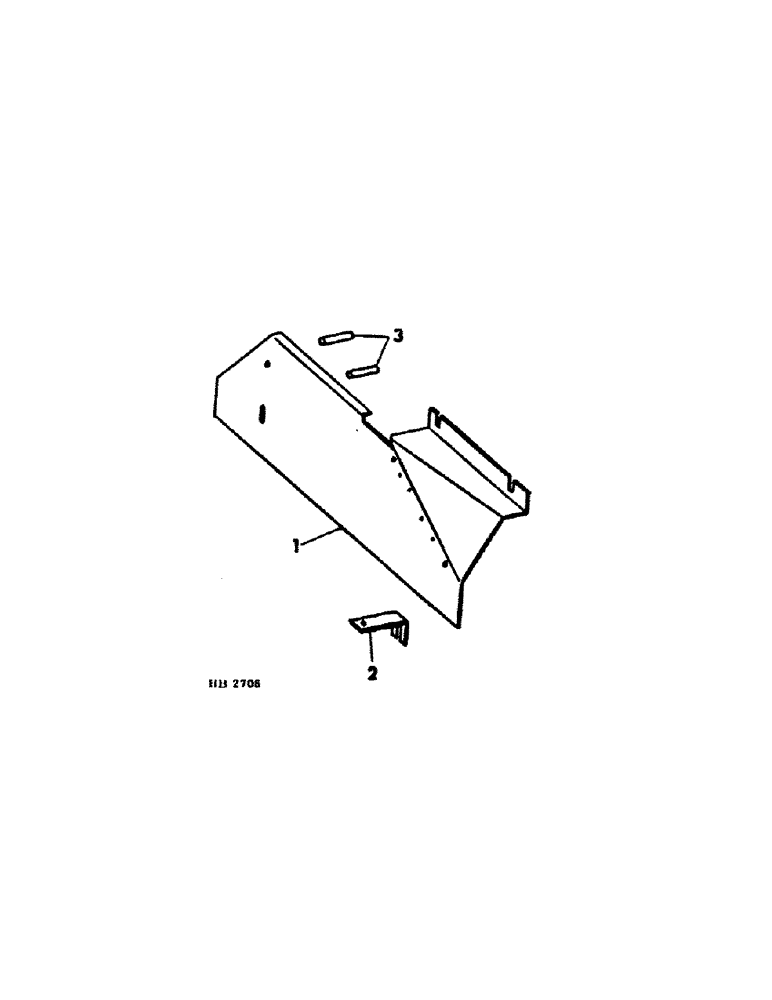

Схема запчастей Case IH DUAL - (C-20[1]) - AUGER DRIVE SHIELD
2
1
3

Артикул

Название

Примечание

Количество

1

832144C1

SHIELD

ASSY, RH auger drive

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5-16-18 x 3/4 crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 hex flanged

3шт.

2

832188C1

SUPPORT

shield front

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178374R1

WASHER

.531 x 1.250 x .054 flat

1шт.

3

468752R1

BUSHING,1/2" X-Strng Pipe x 1 5/8"

SPACER, shield rear mtg

2шт.

178374R1

WASHER

531 x 1.250 x .054 flat

6шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 hex flanged

2шт.

Выбрано товаров: 13
