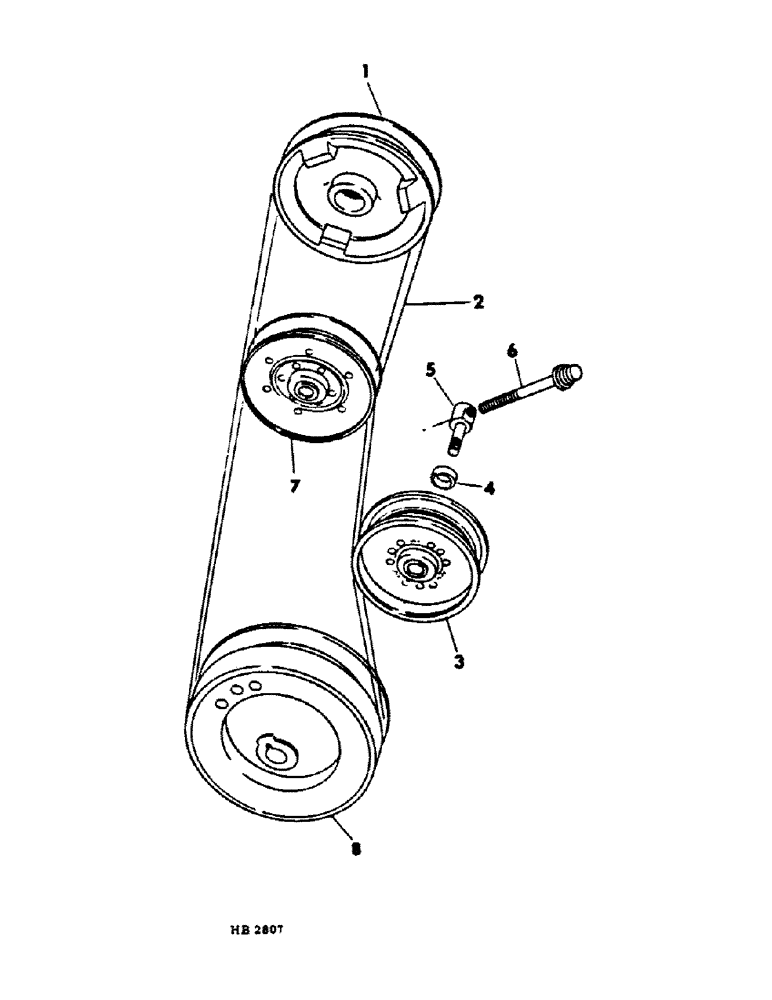

Запчасти Case IH DUAL (C-19) - DUAL AUGER, KNIFE DRIVE

1

828965C1

PULLEY

knife drive, for connecting parts refer to header drive

1шт.

2

832017C1

BELT,134.50" L

Knife Drive 134.50" L

1шт.

3

607443R91

PULLEY

front tightener

1шт.

4

576248R1

SPACER, pulley mtg

1шт.

5

595758R4

BOLT,Hex, 1/2" - 13 x 2.75"

tightener pulley mtg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

4шт.

6

595358R91

BOLT

ASSY, pulley tightener

1шт.

608337R1

CARRIAGE BOLT,5/8" - 11 x 3", Grade 5

BOLT, 5/8-11 x 3 crg

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

5шт.

21783R1

SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole

.656 sq x 1.500 x .105

1шт.

8

830454C1

PULLEY

knife drive, for connecting parts refer to knife drive connections

1шт.

Q53

KEY,1/4" Sq x 1", Par

1шт.
