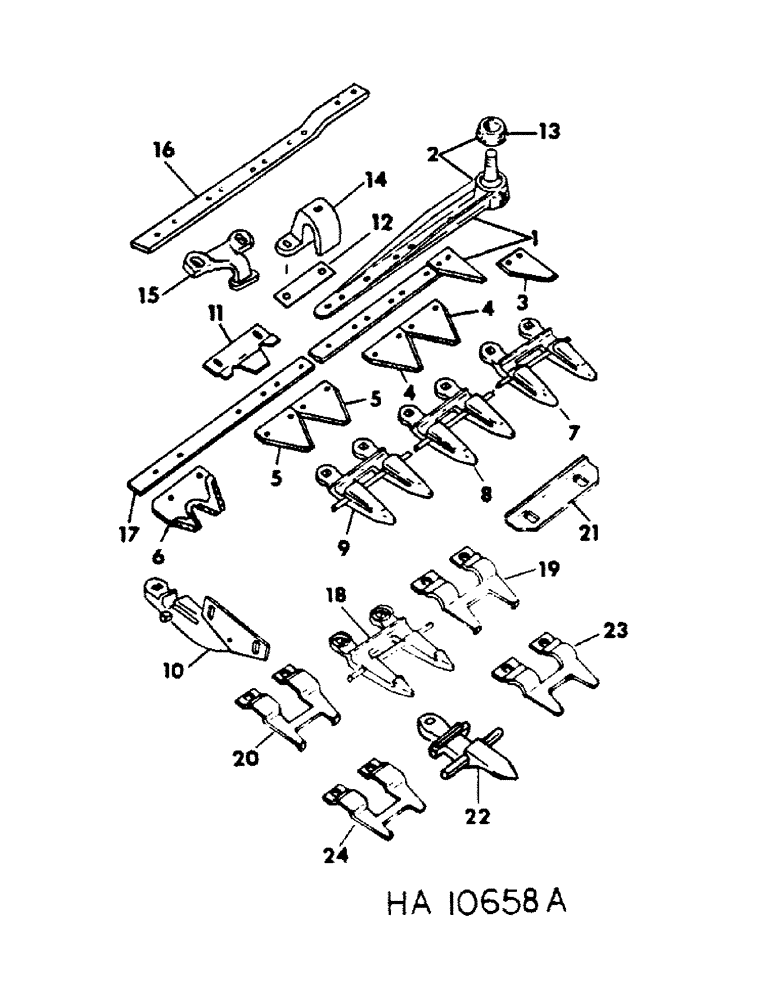

Запчасти Case IH DUAL (C-16) - DUAL AUGER, KNIFE AND GUARDS

1

832051C93

KNIFE

ASSY, 12 ft w/chrome plated underserrated sections, for service order 827724C91, knife assy w/595648R1, guide 2-595213R1 shim and 2-609826R1, bolts, required for first conversion only, consists of

1шт.

BAR (NSS)

1шт.

824595C1

REINFORCEMENT

1шт.

824594C91

END ASSY.

END ASSY

1шт.

599733R1

CUTTER BAR

SECTION

1шт.

148200C1

KNIFE SECTION

SECTION

1шт.

457607R2

KNIFE SECTION

SECTION

43шт.

823711C2

KNIFE SECTION

SECTION

4шт.

990719R91

RIVET

RIVET

7шт.

990727R91

RIVET

7шт.

990325R91

RIVET

1шт.

2195

RIVET

2шт.

991014R91

KIT

RIVET

81шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING

1шт.

1

827724C91

KNIFE ASSY

12 ft w/chrome plated underserrated sections, consists of

1шт.

BAR (NSS)

1шт.

827733C1

REINFORCEMENT

1шт.

824594C91

END ASSY.

END ASSY

1шт.

599733C1

SECTION

1шт.

148200C1

KNIFE SECTION

SECTION

1шт.

457607R2

KNIFE SECTION

SECTION

43шт.

823711C2

KNIFE SECTION

SECTION

4шт.

990727R91

RIVET

3шт.

990325R91

RIVET

1шт.

14765R1

RIVET,Oval Hd, .203" x 15/16"

17шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

4шт.

2195

RIVET

2шт.

991014R91

KIT

RIVET

71шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING

1шт.

1

830716C93

KNIFE

ASSY, 12 ft w/chrome plated overserrated sections, for service order 827700C91 knife assy w/595648R1 guide, 2-595213R1 shim and 2-609826R1, bolts required for first conversion only, consists of

1шт.

BAR (NSS)

1шт.

824595C1

REINFORCEMENT

1шт.

824594C91

END ASSY.

END ASSY

1шт.

599733R1

CUTTER BAR

SECTION

1шт.

148200C1

KNIFE SECTION

SECTION

1шт.

596321R3

KNIFE SECTION

SECTION

43шт.

823713C2

KNIFE SECTION

SECTION

4шт.

990719R91

RIVET

RIVET

7шт.

990727R91

RIVET

7шт.

990325R91

RIVET

1шт.

2195

RIVET

2шт.

991014R91

KIT

RIVET

81шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING

1шт.

1

827700C91

KNIFE ASSY

12 ft w/chrome plated overserrated sections, consists of

1шт.

BAR (NSS)

1шт.

827733C1

REINFORCEMENT

1шт.

824594C91

END ASSY.

END ASSY

1шт.

599733R1

CUTTER BAR

SECTION

1шт.

148200C1

KNIFE SECTION

SECTION

1шт.

596321R3

KNIFE SECTION

SECTION

43шт.

823713C2

KNIFE SECTION

SECTION

4шт.

14765R1

RIVET,Oval Hd, .203" x 15/16"

17шт.

990727R91

RIVET

3шт.

990325R91

RIVET

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

4шт.

2195

RIVET

2шт.

991014R91

KIT

RIVET

71шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING

1шт.

1

832052C93

KNIFE

ASSY, 14 ft w/chrome plated underserrated sections, for service order 827725C91 knife assy w/595648R1 guide, 2-595213R1 shim and 2-609826R1 bolt, required for first conversion only, consists of

1шт.

BAR (NSS)

1шт.

824595C1

REINFORCEMENT

1шт.

824594C91

END ASSY.

END ASSY

1шт.

148200C1

KNIFE SECTION

SECTION

1шт.

599733R1

CUTTER BAR

SECTION

1шт.

457607R2

KNIFE SECTION

SECTION

51шт.

823711C2

KNIFE SECTION

SECTION

4шт.

990719R91

RIVET

RIVET

7шт.

990727R91

RIVET

7шт.

990325R91

RIVET

1шт.

2195

RIVET

2шт.

991014R91

KIT

RIVET

97шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING

1шт.

1

827725C91

KNIFE ASSY

14 ft w/chrome plated underserrated sections, consists of

1шт.

BAR (NSS)

1шт.

827733C1

REINFORCEMENT

1шт.

824594C91

END ASSY.

END ASSY

1шт.

599733R1

CUTTER BAR

SECTION

1шт.

148200C1

KNIFE SECTION

SECTION

1шт.

457607R2

KNIFE SECTION

SECTION

51шт.

823711C2

KNIFE SECTION

SECTION

4шт.

990727R91

RIVET

3шт.

990325R91

RIVET

1шт.

14765R1

RIVET,Oval Hd, .203" x 15/16"

17шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

4шт.

2195

RIVET

2шт.

991014R91

KIT

RIVET

103шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING

1шт.

1

823578C92

KNIFE

ASSY, 16 ft w/chrome plated overserrated sections, for service order 827702C91 knife assy w/595648R1 guide, 2-595213R1 shim and 2-609826R1 bolts, consists of

1шт.

BAR (NSS)

1шт.

824595C1

REINFORCEMENT

1шт.

824594C91

END ASSY.

END ASSY

1шт.

148200C1

KNIFE SECTION

SECTION

1шт.

599733R1

CUTTER BAR

SECTION

1шт.

596321R3

KNIFE SECTION

SECTION

59шт.

823713C2

KNIFE SECTION

SECTION

4шт.

990719R91

RIVET

RIVET

7шт.

990727R91

RIVET

7шт.

990325R91

RIVET

1шт.

2195

RIVET

2шт.

991014R91

KIT

RIVET

113шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING

1шт.

1

827702C91

KNIFE ASSY

16 ft w/chrome plated overserrated sections, consists of

1шт.

BAR (NSS)

1шт.

827733C1

REINFORCEMENT

1шт.

824594C91

END ASSY.

END ASSY

1шт.

148200C1

KNIFE SECTION

SECTION

1шт.

599733R1

CUTTER BAR

SECTION

1шт.

596321R3

KNIFE SECTION

SECTION

59шт.

823713C2

KNIFE SECTION

SECTION

4шт.

990727R91

RIVET

3шт.

14765R1

RIVET,Oval Hd, .203" x 15/16"

17шт.

990325R91

RIVET

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

4шт.

2195

RIVET

2шт.

991014R91

KIT

RIVET

103шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING

1шт.

2

824594C91

END ASSY.

END ASSY, knife head w/step, replaces 824812C94 end assy w/o step, consists of (1) head (NSS), (1) nut 102903H1, (1) seal 194690R1

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 45 deg lub

1шт.

102903H1

NUT

5/8-18 slotted hex

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

3

599733R1

CUTTER BAR

SECTION, knife half left end

1шт.

2195

RIVET

5-1/2 x 1-1/8 small ovh, 1 lb pkg

2шт.

4

823711C2

KNIFE SECTION

SECTION, underserrated cr-pltd LH

4шт.

4

823713C2

KNIFE SECTION

SECTION, overserrated cr-pltd LH

4шт.

990727R91

RIVET

1/4 x 1-1/8 btnhd small solid, 1 lb pkg

7шт.

990325R91

RIVET

1/4 x 1 btnhd small solid, 1 lb pkg

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 x 1-1/4 pln but/hd sol

4шт.

5

457607R2

KNIFE SECTION

SECTION, underserrated cr-pltd

1шт.

5

596321R3

KNIFE SECTION

SECTION, overserrated, 43 used 12 ft, 51 used 14 ft, 59 used 16 ft

1шт.

990719R91

RIVET

RIVET, no. 6 x 7/8 pln o/hd, 1 lb pkg

7шт.

991014R91

KIT

RIVET, 5-1/2 x 9/16 small ovh cd pl, 1 lb pkg, refer to knife assy for amounts

1шт.

14765R1

RIVET,Oval Hd, .203" x 15/16"

no. 6 x 15/16 pln o/hd

17шт.

6

148200C1

KNIFE SECTION

SECTION, cr pl overserrated double RH end replaces triple RH end

1шт.

991014R91

KIT

RIVET, #5 1/2 x 9/16 small ovh cd pl, 1 lb pkg

2шт.

7

831633C1

GUARD

knife double left end 1st

1шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16-14 x 1-1/2 type 1 crg

1шт.

592722R1

BOLT,7/16"-14 x 1 5/16", G5

7/16-14 x 1-5/16 type 5 no. 3 plow

1шт.

8

483500R3

GUARD

knife dble left end - 2nd/3rd

2шт.

REF: #8 - 483500R3 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187346A1.

1шт.

592722R1

BOLT,7/16"-14 x 1 5/16", G5

7/16-14 x 1-5/16 type 5 no 3 plow

1шт.

609826R1

BOLT,7/16"-14 x 1 3/4", G5

7/16-14 x 1-3/4 type 5 no. 3 plow

1шт.

18698R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2

BOLT, 7/16-14 x 2 type 1 crg

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex, 1 per bolt

1шт.

9

613838R2

GUARD

knife double, 21 used 12 ft, 25 used 14 ft, 29 used 16 ft

1шт.

REF: #9 - 613838R2 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187350A1.

1шт.

592722R1

BOLT,7/16"-14 x 1 5/16", G5

7/16-14 x 1-15/16 type 5 no. 3 plow, 19 used 12 ft, 23 used 14 ft, 27 used 16 ft

1шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

BOLT, 7/16-14 x 1-9/16 type 5 no. 3 plow, 21 used 12 ft, 25 used 14 ft, 29 used 16 ft

1шт.

609826R1

BOLT,7/16"-14 x 1 3/4", G5

7/16-14 x 1-3/4 type 5 no. 3 plow

3шт.

632593R1

CARRIAGE BOLT,Round, 7/16" - 14 x 1 3/4", Grade 5

BOLT, 7/16-14 x 1-3/4 crg

3шт.

271501

SOCKET

NUT, 7/16-14 hex, 1 per bolt

1шт.

10

831487C2

GUARD

ASSY, knife single RH

1шт.

592722R1

BOLT,7/16"-14 x 1 5/16", G5

7/16-14 x 1-5/16 type 5 no. 3 plow

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

11

613842R2

GUIDE

HOLDER, knife, 9 used 12 ft, 11 used 14 ft, 13 used 16 ft

1шт.

12

595213R1

STRIP

SHIM, knife holder, 15 used 12 ft, 17 used 14 ft, 19 used 16 ft

1шт.

13

194690R1

SEAL ASSY.

SEAL, knife head end

1шт.

14

824981C1

GUIDE

knife high arch LH

1шт.

15

595648R1

GUIDE

knife high arch RH, not for use w/ strut or stub guards

2шт.

16

824595C1

REINFORCEMENT

knife back

1шт.

17

BAR, 12 ft knife back

1шт.

17

BAR, 14 ft knife back

1шт.

17

BAR, 16 ft knife back, for service order knife assy

1шт.

18

58600C1

GUARD ASSY.

GUARD, strut, 21 used 12 ft, 25 used 14 ft, 29 used 16 ft, for use in extremely rock conditions

1шт.

19

58601C1

CLIP

low arch, strut, 1 per guard, for use in extremely rocky conditions

1шт.

20

58602C1

CLIP

high arch, strut, for use in extremely rocky conditions

2шт.

21

NC468

PLATE, wear, for strut & stub guards

1шт.

22

472717R2

GUARD

single, stub, 46 used 12 ft, 54 used 14 ft & 62 used 16 ft, for use when excessive plugging of standard guards occurs

1шт.

23

101831C2

CLIP

low arch, stub, 1 per two guards, for use when excessive plugging of standard guards occurs

1шт.

24

101832C2

CLIP

high arch, stub, for use when excessive plugging of standard guards occurs

2шт.
