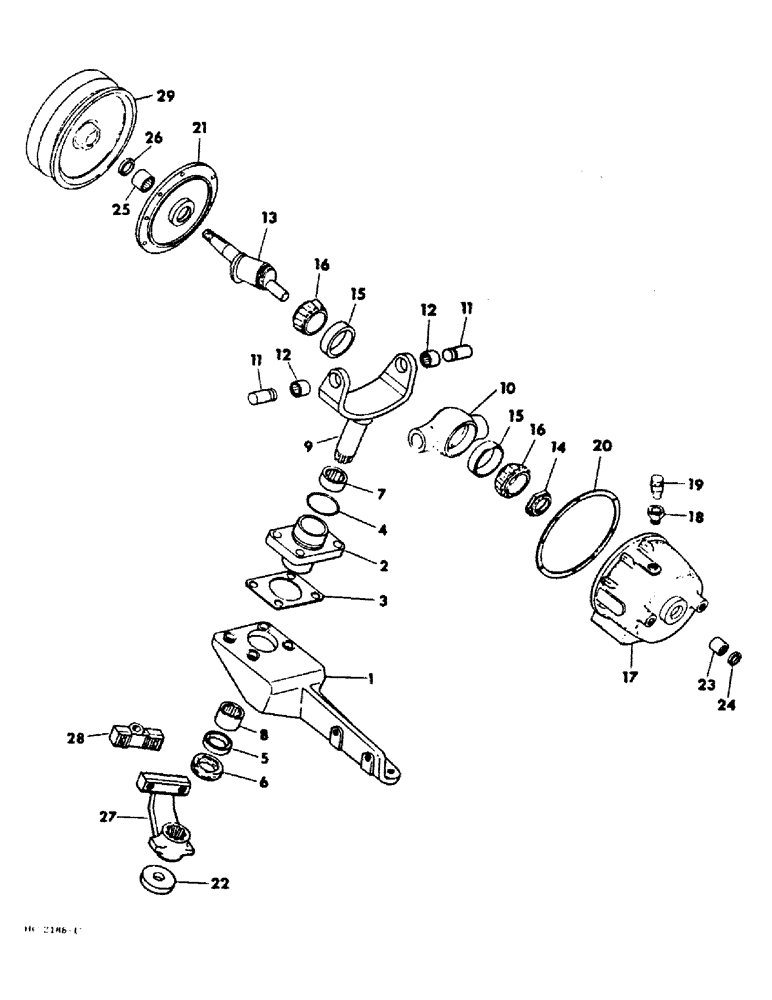

Запчасти Case IH DUAL (C-14) - DUAL AUGER, KNIFE DRIVE CONNECTIONS

136323C91

GEAR

DRIVE ASSY, knife, consists of all parts listed unless otherwise noted

1шт.

136323C92R

REMAN-WOBBLE BOX

Gearbox - Sickle Drive/Wobble Box - Models IH Windrow Headers, 1190, 1490, 1590

1шт.

1

831844C1

SUPPORT

knife drive, not part of drive assy

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

1/2-13 x 1 serrated hex hd

4шт.

2

136324C1

HOUSING

yoke bearing

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

5/8-11 x 1-1/2 hex-hd

1шт.

831675C2

BOLT,5/8" - 11 x 2 3/4", Gr 8

5/8 x 2-3/4 hex-hd dryloc

4шт.

589068R1

WASHER

.656 x 1.250 x .090

4шт.

3

829374C2

BAR

shim, use as reqd, not part of drive assembly

8шт.

4

21552R1

O-RING,2.609" ID x 2.887" OD x 0.139"

yoke bearing housing

1шт.

5

101295C1

OIL SEAL

housing oil

1шт.

6

116955C1

GASKET,41.27mm ID x 76.2mm OD x 14.22mm Thk

WASHER, 1.625 x 3.000 x .56 felt

1шт.

7

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

BEARING, housing inner

1шт.

8

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, housing outer

1шт.

9

101301C1

SHIFTER FORK

YOKE

1шт.

26323R1

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 8

3/4-10 x 1-1/2 prev torque PHC type 8

1шт.

10

62520C2

TRUNNION

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

2шт.

11

62522C1

STUD

trunnion

2шт.

12

550839R91

BEARING, NEEDLE

BEARING, trunnion stud

2шт.

13

101300C1

SHAFT

wobble

1шт.

414089C1

FLANGE NUT,5/8" - 18

NUT, 5/8-18 hex lock

1шт.

14

62521C2

NUT

stake

1шт.

15

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

CONE, wobble shaft bearing

2шт.

16

364462C1

BEARING CUP,82.55mm OD x 16.51mm W

CUP, wobble shaft bearing

2шт.

17

136325C2

HOUSING

wobble shaft

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178374R1

WASHER

.531 x 1.250 x .054, use as reqd

7шт.

823781C1

WASHER

.531 x 1.250 x .105 clipped

1шт.

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-14 pipe

3шт.

18

444333

BUSHING

reducer 3/8 x 1/8 pipe, not part of drive assembly

1шт.

19

152127H1

BREATHER,1/8"-27, Short

not part of drive assembly

1шт.

20

62525C1

GASKET

cover

1шт.

21

62526C1

COVER

housing

1шт.

117045C1

LOCK BOLT

BOLT, 3/8-16 x 1 hex-hd dryloc

8шт.

22

116954C1

WASHER

.780 x 2.40 x .31

1шт.

23

101293C91

NEEDLE BEARING,Needle, 22.21mm ID x 47.75mm OD x 25.4mm W

BEARING, wobble shaft inner

1шт.

24

544667R92

SEAL

SEAL, inner oil

1шт.

25

143996H1

NEEDLE BEARING

BEARING, wobble shaft outer

1шт.

26

62527C1

OIL SEAL,25.4mm ID x 41.35mm OD x 6.5mm Thk

outer oil

1шт.

27

62529C1

CRANK

knife, not part of drive assembly

1шт.

24876R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

67872C1

WASHER

.656 x 1.250 x .250 pl

2шт.

28

101296C2

NOZZLE HOLDER

HOLDER, ball stud, not part of drive assembly

1шт.

29

830454C1

PULLEY

knife driven, not part of drive assembly

1шт.

Q53

KEY,1/4" Sq x 1", Par

1шт.
