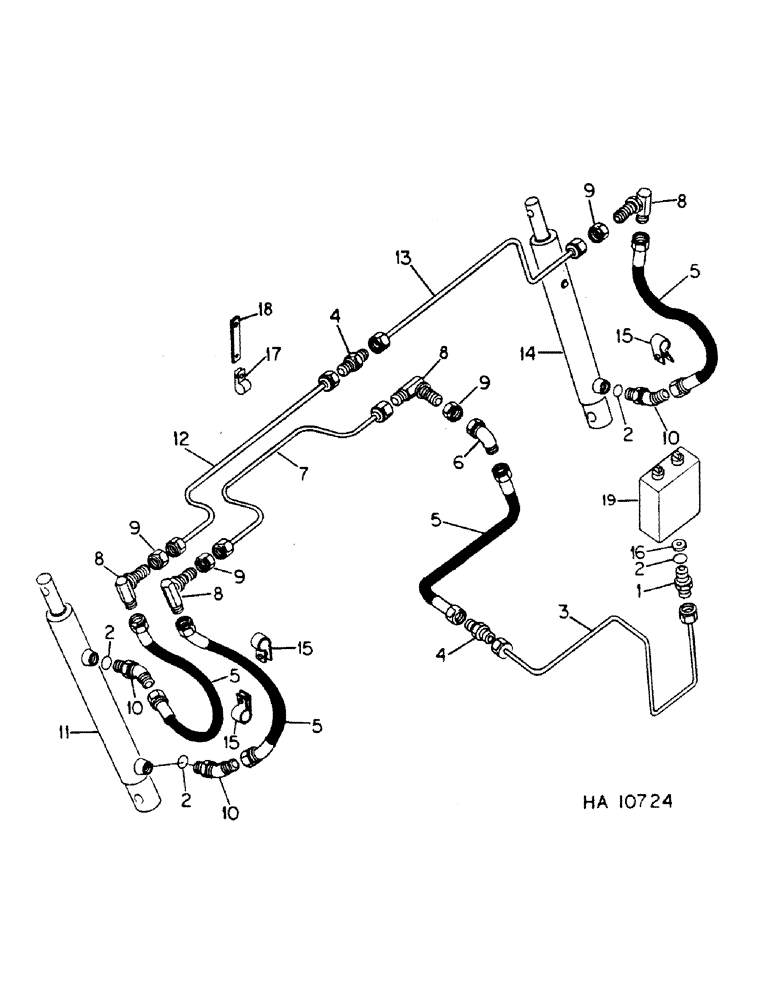

Запчасти Case IH DUAL (C-12) - DUAL AUGER, REEL HYDRAULICS

1

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 hyd 37 deg flared tube short swivel C-Z

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

3

832430C1

TUBE

ASSY, reel lift

1шт.

4

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 hyd 37 deg flared tube C-Z

2шт.

5

172373H1

HOSE

ASSY, 35 inch reel lift

4шт.

6

9410254

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

9/16-18 hyd 37 deg

1шт.

7

832113C1

TUBE

ASSY, 12 ft master cylinder inlet

1шт.

7

832114C1

TUBE

ASSY, 14 ft master cylinder inlet

1шт.

7

823524C1

TUBE

ASSY, 16 ft master cylinder inlet

1шт.

8

671943R1

ELBOW

9/16-18 hyd 37 deg flared tube, 90 deg adj str thrd bulkhead w/nut and back-up washer

4шт.

9

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 bulkhead lock

4шт.

21862R1

WASHER

.594 x 1.000 x .105

4шт.

10

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 hyd 37 deg flared tube adj str thrd 45 deg w/nut and back-up washer

3шт.

11

158749C91

CYLINDER

ASSY, Cessna, reel lift master use w/825295C91 slave cylinder opt w/1-547358R92 master cylinder and 1-532763R91 slave cylinder

1шт.

11

547358R92

CYLINDER ASSY.

CYLINDER ASSY, I.H., reel lift master use w/532763R91 slave cylinder opt w/1-158749C91 master cylinder and 1-825295C91 slave cylinder for service parts refer to master reel lift cylinder

1шт.

23173R1

CLEVIS PIN

PIN, 1/2 x 2.750 headed, type 5

1шт.

26204R1

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2.250 header, type 5

1шт.

599744R1

AXLE PIN

PIN, Q.A. Cotter

2шт.

12

832111C1

TUBE,0.375" OD, 76.5, 2.8" Length

ASSY, 12 ft cyl to cyl cross LH

1шт.

12

832112C1

TUBE,0.375" OD, 88.5, 2.8" Length

ASSY, 14 ft cyl to cyl cross LH

1шт.

12

823525C1

TUBE

ASSY, 16 ft cyl to cyl cross LH

1шт.

13

832109C1

TUBE,0.375" OD, 63.7, 5.8" Length

ASSY, 12 ft cyl to cyl cross RH

1шт.

13

832110C1

TUBE,0.375" OD, 75.7, 5.8" Length

ASSY, 14 ft cyl to cyl cross RH

1шт.

13

823526C1

TUBE

ASSY, 16 ft cyl to cyl cross RH

1шт.

14

825295C91

CYLINDER

ASSY, Cessna, reel lift slave use w/158749C91 master cylinder opt w/1-532763R91 slave cylinder and 1-547358C92 master cylinder

1шт.

14

532763R91

CYLINDER

ASSY, I.H., reel lift slave use w/547358C92 master cylinder opt w/1-825295C91 slave cylinder and 1-158749C91 master cylinder for service parts refer to slave reel lift cylinder

1шт.

23173R1

CLEVIS PIN

PIN, 1/2 x 2.750 headed, type 5

2шт.

599744R1

AXLE PIN

PIN, Q.A. Cotter

2шт.

15

299413C1

CLAMP

inlet & outlet hose

3шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

403967R1

VENT

VALVE, orifice, Cessna

1шт.

16

1261082C1

VALVE

orifice, Victor

1шт.

17

595432R1

CLAMP

tube

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21801R1

WASHER

.281 x .734 x .056

1шт.

18

677458R1

BAR

clamp, support

1шт.

19

VALVE ASSY, hydraulic control, for service parts refer to chassis parts catalog

1шт.
