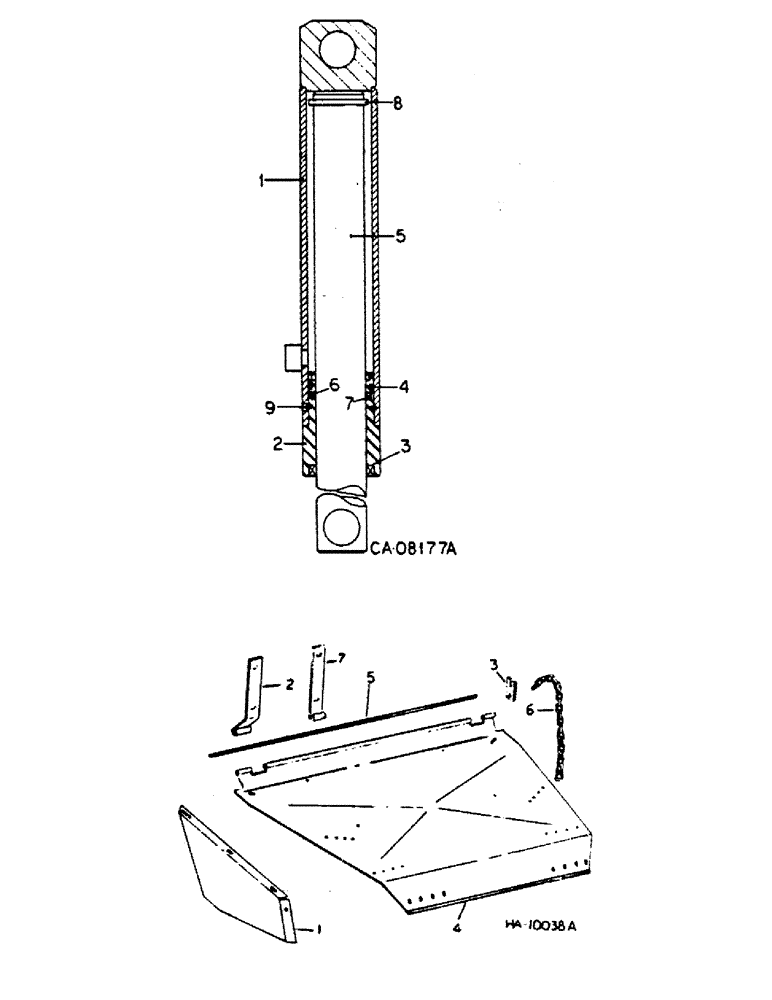

Запчасти Case IH DRAPER (B-61[2]) - REAR DEFLECTOR FOR USE W/CHASSIS MOUNTED HAY CONDITIONER (15) - CROP CONDITIONING

1

828704C1

DEFLECTOR

rear side LH shown

1шт.

1

828705C1

DEFLECTOR

rear side RH

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

6шт.

2

(Not used this application)

1шт.

3

(Not used this application)

1шт.

4

828102C2

DEFLECTOR

rear

1шт.

5

828101C2

ROD

deflector pivot

1шт.

6

829565C1

CHAIN (AG)

CHAIN, deflector adjusting

2шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

20893R1

WASHER

.344 x 1.000 x .105

2шт.

7

828702C1

SUPPORT

deflector hinge

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

830235C1

PRODUCT GRAPHIC

caution

2шт.

176977C1

PRODUCT GRAPHIC

danger

1шт.

175311C1

REFLECTOR

red

3шт.

174732C1

REFLECTOR

amber

1шт.
