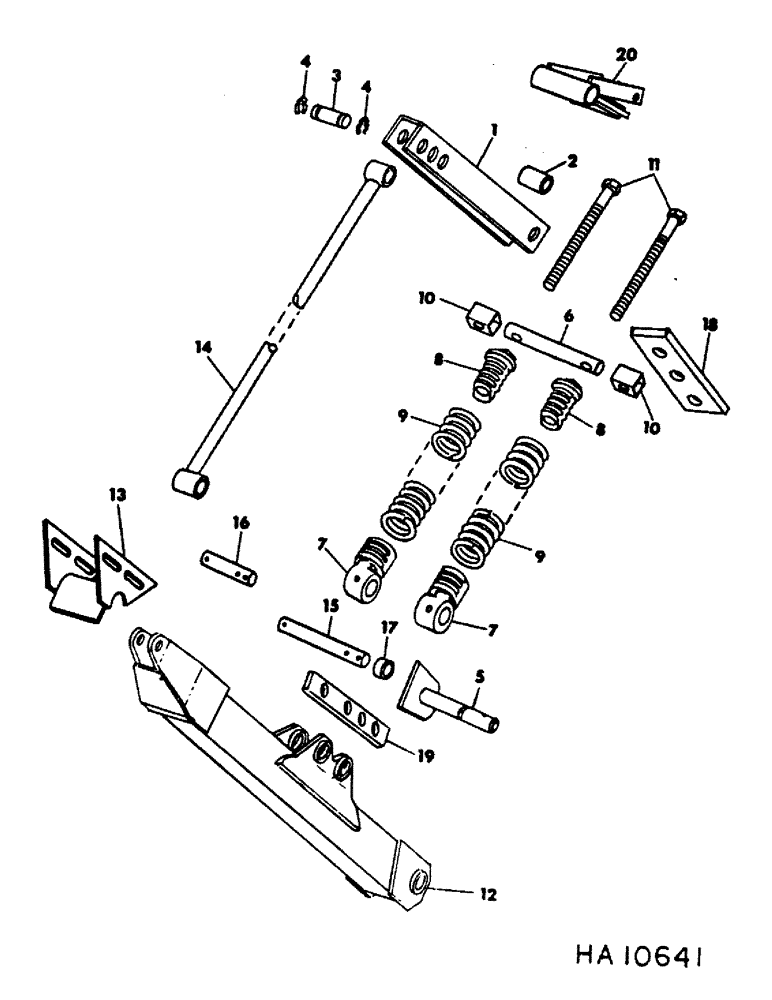

Запчасти Case IH DRAPER (B-51) - DRAPER HEADER, HEADER FLOATATION AND ARM, 1979 AND SINCE (15) - CROP CONDITIONING

1

828371C2

CHANNEL

lift upper

2шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

3/4 x 3-1/2 type 5

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

2

828443C1

SPACER

upper lift channel pivot

2шт.

3

828150C1

PIN,25.4mm OD x 71.88mm L

lift rod upper

4шт.

4

827695C1

CIRCLIP

RING, retaining

8шт.

5

831175C1

PIN

ASSY, lower lift arm pivot

2шт.

273349

FITTING

1/4-18 str lub

2шт.

616387R1

PIN,3/8" x 2", Coiled

2шт.

21226R1

WASHER

1.28 x 2.000 x .105

6шт.

6

831885C1

PIN

spring anchor upper

2шт.

7

596398R1

PLUG

spring lower, 1 per spring

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-90 deg, 1 per plug

1шт.

8

826734C1

LUG

PLUG, spring upper, 1 per spring

1шт.

9

830103C1

SPRING

flat

1шт.

10

831827C1

SPACER

BAR, spring pin spacer not for used w/831870C1 bar

4шт.

11

828145C1

BOLT,Hex, 3/4" - 10 x 11", Gr 8

flat spring tension, 1 per spring

1шт.

280954

NUT,3/4"-10, G5

4шт.

467750R1

WASHER

.781 x 1.500 x .105

4шт.

12

829408C2

ARM

ASSY, lift lower

2шт.

13

829268C1

PIVOT

ASSY, lift arm front

2шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

280954

NUT,3/4"-10, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

20601R1

WASHER

.531 x 1.250 x .105

12шт.

14

832460C1

ROD

ASSY, lift

2шт.

15

832498C1

PIN

1 x 9 in spring anchor lower

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

609836R1

WASHER

1.031 x 1.750 x .054

1шт.

16

832499C1

PIN

1 x 5.3 in lift rod lower

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

609836R1

WASHER

1.031 x 1.750 x .054

1шт.

17

831666C1

SPACER

1-7/8 inch long

1шт.

18

831870C1

BAR

third spring upper anchor, 1 used per third or fourth spring

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

467750R1

WASHER

.781 x 1.500 x .105

1шт.

19

832492C1

BAR

spring anchor lower

1шт.

20

832426C1

PIVOT

ASSY, float spring upper, for either or both floats

1шт.

191163

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8 x 4 type 5

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.
