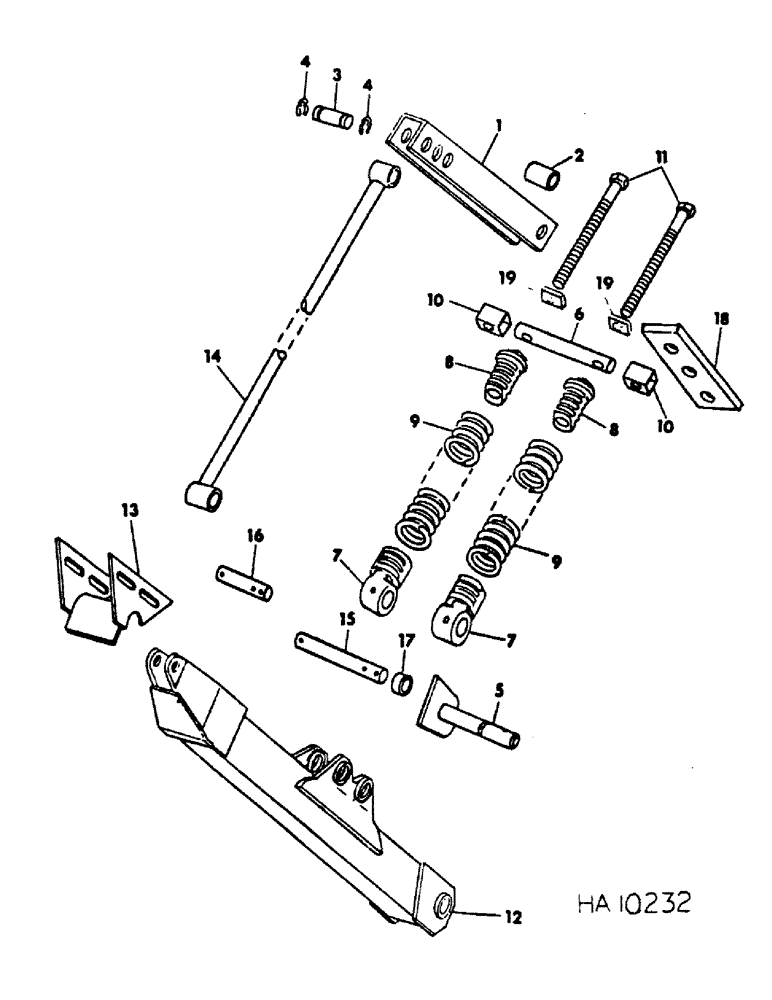

Запчасти Case IH DRAPER (B-49) - DRAPER HEADER, HEADER FLOTATION AND ARM, BUILT 1976 TO 1979 (15) - CROP CONDITIONING

1

828371C2

CHANNEL

lift upper

2шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

3/4 x 3-1/2 type 5

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

2

828443C1

SPACER

upper lift channel pivot

2шт.

3

828150C1

PIN,25.4mm OD x 71.88mm L

lift rod upper

4шт.

4

827695C1

CIRCLIP

RING, retaining

8шт.

5

828711C1

PIN

ASSY, lower lift arm pivot, Serial Range: 1976-1978

2шт.

5

831175C1

PIN

ASSY, lower lift arm pivot w/groove in shaft, 1976 & since

2шт.

273349

FITTING

1/4-18 str lub

2шт.

616387R1

PIN,3/8" x 2", Coiled

2шт.

21226R1

WASHER

1.28 x 2.000 x .105

6шт.

6

828141C1

PIN

spring anchor upper w/machined flats at ends for service order 831855C1 pin w/2-831827C1 spacers

2шт.

6

831855C1

PIN

spring anchor upper

2шт.

7

596398R1

PLUG

spring lower

4шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-90 deg lub

4шт.

8

826734C1

LUG

PLUG, spring upper, 1 per spring

4шт.

9

830103C1

SPRING

float, 4 or as required

4шт.

10

831827C1

SPACER

spring pin for use w/831855C1 pin not for use w/831870C1 bar

4шт.

11

828145C1

BOLT,Hex, 3/4" - 10 x 11", Gr 8

float spring tension

4шт.

280954

NUT,3/4"-10, G5

4шт.

467750R1

WASHER

.781 x 1.500 x .105

4шт.

12

829408C2

ARM

ASSY, lift lower

2шт.

13

829268C1

PIVOT

ASSY, lift arm front

2шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

280954

NUT,3/4"-10, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

20601R1

WASHER

.531 x 1.250 x .105

12шт.

14

829446C1

ROD

ASSY, lift

2шт.

15

829529C1

PIN

1 x 8.9 in spring anchor lower

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

609836R1

WASHER

1.031 x 1.750 x .054

10шт.

16

831671C1

PIN

7 inch lift rod lower replaces 830156C1, pin 1 x 4.2 in by ordering w/1-831666C1 spacer

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

609836R1

WASHER

1.031 x 1.750 x .054

4шт.

17

580342R1

SPACER,1" Pipe x 1/2"

pipe 1/2 in length, 1976 & 1977

2шт.

17

831666C1

SPACER

1-7/8 in length, 1978 & since not for use w/float lockout

2шт.

18

831870C1

BAR

third spring upper anchor 1978 & since 1, per third spring

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

19

828142C1

BAR

spring pin spacer, for use w/828141C1 pin

1шт.
