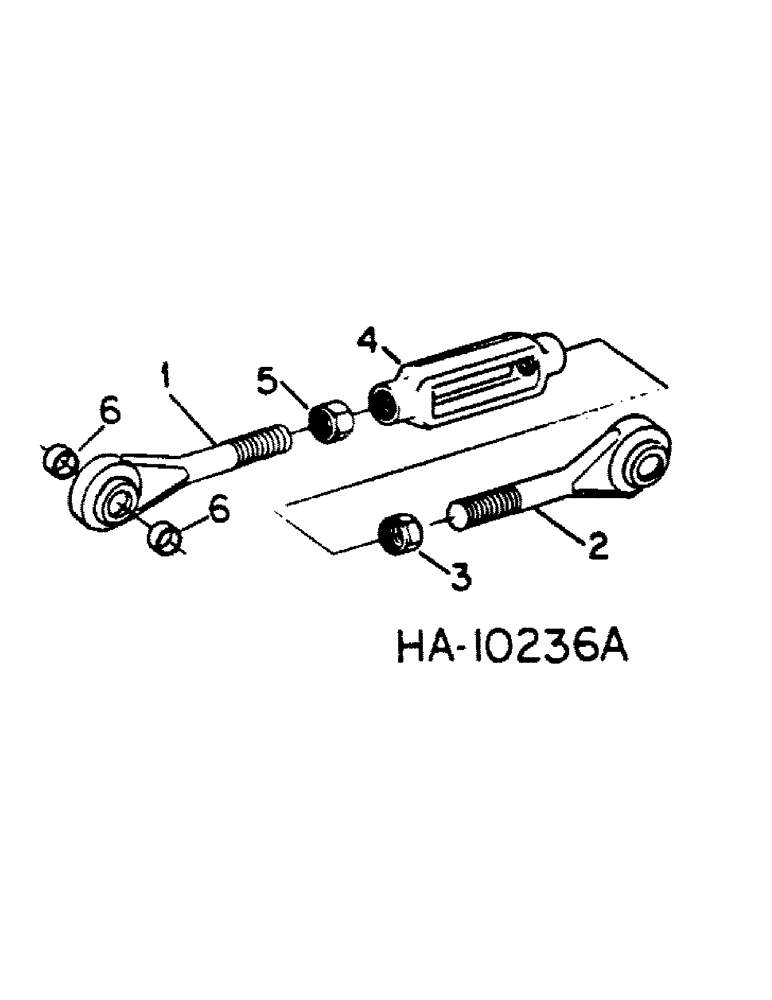

Запчасти Case IH DRAPER (B-48) - DRAPER HEADER, HEADER CENTER LINK, WRENCH (15) - CROP CONDITIONING

1

829524C1

LINK

ASSY, header center rear 13.30 inch LH thread serial no. 3100 and below

1шт.

1

832463C1

LINK

ASSY, header center rear 15.75 inch LH thread serial no. 3101 and above

1шт.

24895R1

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 8

1980 and since Hex, 3/4"-10 x 4 1/2", G8

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

3/4 x 3-1/2 type 5, 1976 to 1980

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

2

829525C1

LINK

ASSY, header center front 13.30 inch RH thread serial no. 3100 and below

1шт.

2

832328C1

LINK

ASSY, header center front 11.50 inch RH thread serial no. 3101 and above

1шт.

2717777

BOLT, 3/4 x 3-1/2 type 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

3

426898

NUT,Jam, 7/8"-9, G5

7/8-9 hex RH thread

1шт.

4

595992R1

TURNBUCKLE

1шт.

5

22852R1

NUT,Jam, 7/8"-9, G5, LH

7/8-9 hex LH thread

1шт.

6

825019C1

BUSHING

link spacer, 1980 and since

2шт.
