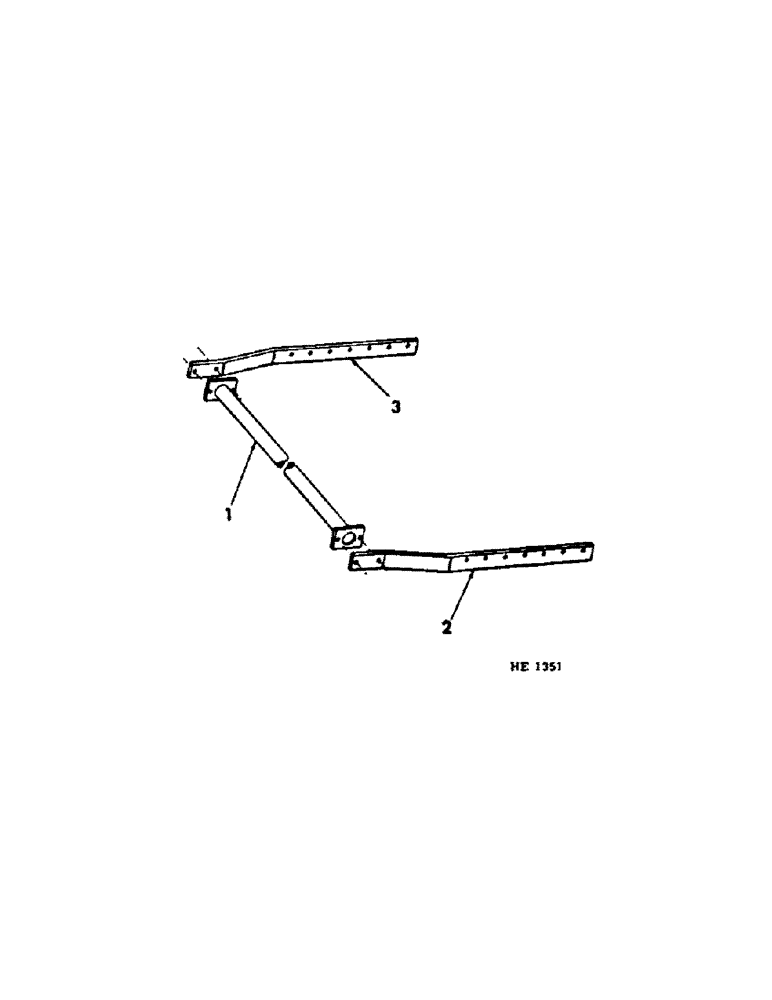

Запчасти Case IH DRAPER (B-44) - DRAPER HEADER, LEAN BAR, WINDROWER DEFLECTOR RODS, SKID SOLE (15) - CROP CONDITIONING

1

599425R1

BAR

ASSY, header lean 10-1/2 ft

1шт.

1

824053C1

BAR

ASSY, header lean 12-1/2 ft

1шт.

1

826263C1

BAR ASSY, header lean 14-1/2 ft

1шт.

1

826284C1

BAR

platform lean 16-1/2 ft

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

826279C1

BAR

lean bar support LH

1шт.

3

826280C1

BAR

lean bar support RH

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.
