Запчасти Case IH DRAPER (B-43) - DRAPER HEADER, HEADER MOUNTED, PRIOR TO SERIAL NO. 3101 (15) - CROP CONDITIONING

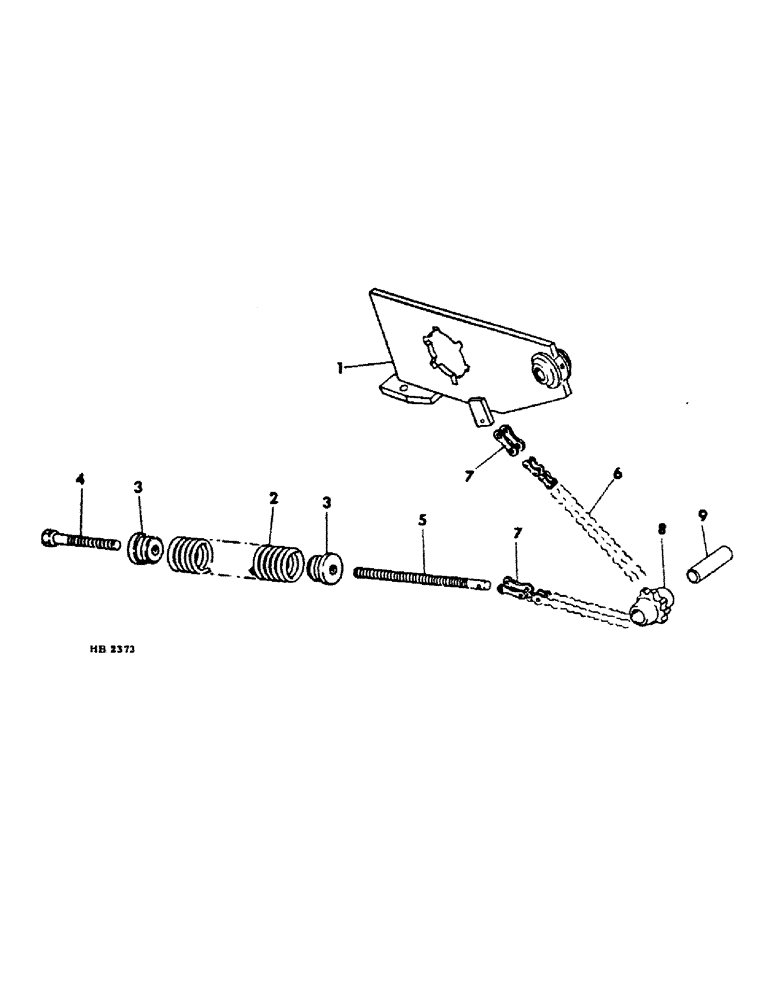

Схема запчастей Case IH DRAPER - (B-43) - DRAPER HEADER, HEADER MOUNTED, PRIOR TO SERIAL NO. 3101 (15) - CROP CONDITIONING

Артикул

Название

Примечание

Количество

1

ARM ASSY, upper roll pivot, for service parts refer to conditioner upper roll

1шт.

2

596191R1

SPRING

roll tension

2шт.

3

591547R1

PLUG

spring

4шт.

4

596366R1

BOLT

tension spring anchor

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

828087C1

STUD

tension adjusting

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

6

CHAIN ASSY, roll tension use 51 links 5/8 std pitch roller chain from 10 ft roll 1791D

2шт.

7

587372R91

CONNECTING LINK

LINK, 1-1/4 in roller chain connecting

4шт.

8

828526C2

SPROCKET ASSY.

SPROCKET, tension chain 10T

2шт.

271293

PULLEY

FITTING, 5/16-32 str lub

2шт.

9

829532C1

SPACER

sprocket

2шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2-13 x 3-1/2 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

21753R1

WASHER

.781 x 1.500 x .054 znd

8шт.

Выбрано товаров: 16
