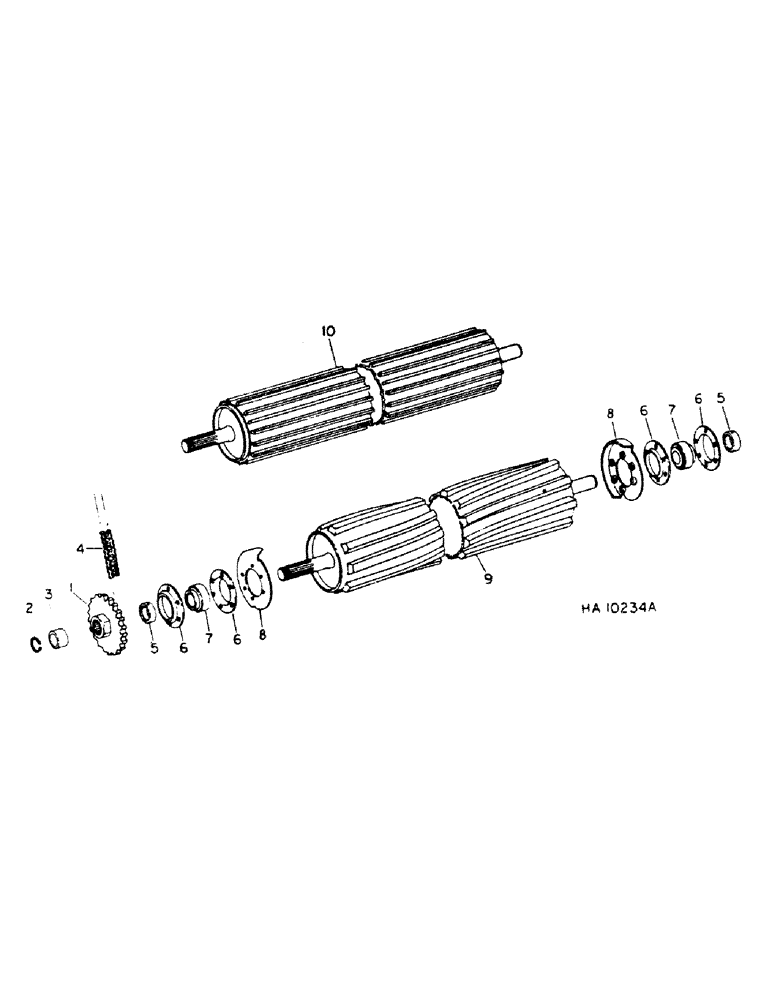

Запчасти Case IH DRAPER (B-40) - DRAPER HEADER, CONDITIONER LOWER ROLL, HEADER MOUNTED, PRIOR (15) - CROP CONDITIONING

1

828550C1

SPROCKET ASSY.

SPROCKET ASSY, 26T lower roll drive

1шт.

608085R1

WASHER

1.406 x 2.000 x .054 as reqd

2шт.

21794R1

WASHER

1.406 x 2.000 x .312

1шт.

2

21193R1

SNAP RING,#137. Ext

Ring, Snap, #137, Ext, lower roll sprocket

1шт.

3

M93915

SPACER,1 1/4" Pipe x 3/4"

1-1/4 x 3/4 std pipe

1шт.

4

CHAIN ASSY, lower roll for service parts refer to conditioner drive

1шт.

5

517645R11

COLLAR

W/SET SCREW, bearing

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 cup pt set

2шт.

6

825620C1

RETAINER

bearing flangette

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

7

611583R91

BALL BEARING

BEARING, roll

2шт.

8

828644C1

SHROUD

ASSY, lower roll

2шт.

9

828010C3

ROLL

lower steel

1шт.

10

(Not used this application)

1шт.
