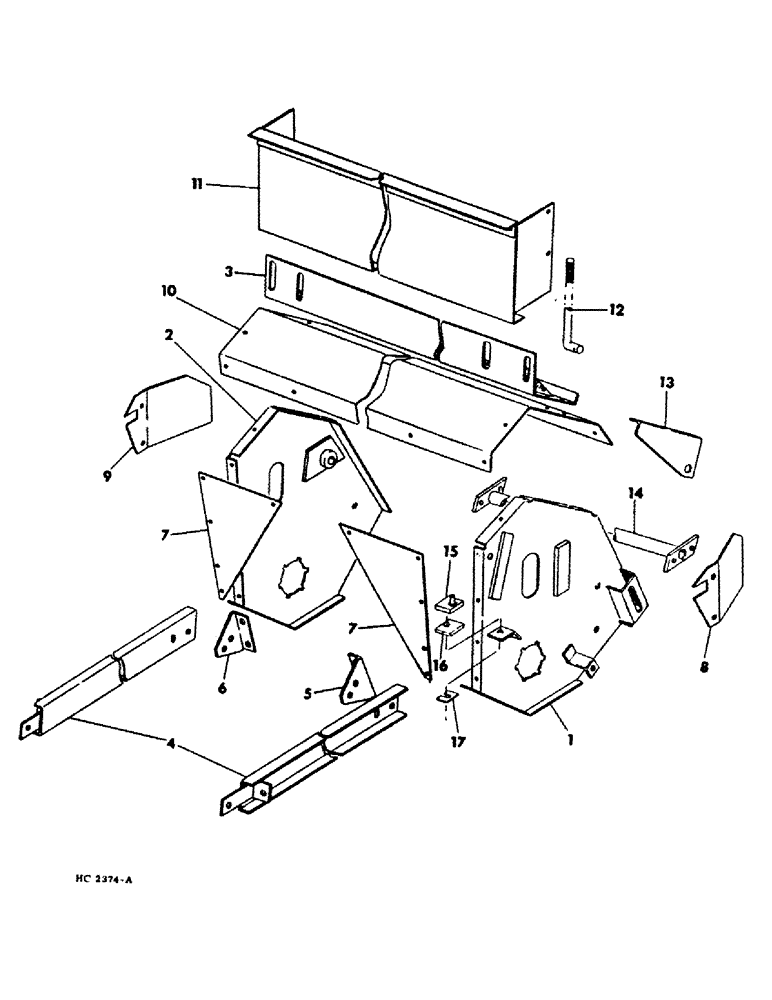

Запчасти Case IH DRAPER (B-37) - DRAPER HEADER, CONDITIONER FRAME SHIELDS, HEADER MOUNTED (15) - CROP CONDITIONING

1

829324C2

SIDE ASSY.

SIDE ASSY, frame LH

1шт.

2

829325C2

SIDE ASSY.

SIDE ASSY, frame RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex hd

2шт.

NLS

NO LONGER SERVICED

5/8-11 x 1-1/2 hex hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

3

829329C2

SUPPORT

ASSY, frame cross

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

20803R1

WASHER

.406 x 1.000 x .105

4шт.

20601R1

WASHER

.531 x 1.250 x .105

4шт.

4

829365C1

CHANNEL ASSY, frame & tension spring

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

20601R1

WASHER

.531 x 1.250 x .105

2шт.

21848R1

HEADED PIN,5/8" x 2"

PIN, 5/8 x 1.750 hd type 5

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

5

829327C1

SUPPORT

tension spring channel LH

1шт.

6

829328C1

SUPPORT, tension spring channel RH

1шт.

7

830031C1

PLATE, frame reinforcing

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex hd

4шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

8

828523C1

SHIELD

hay conditioner inner LH

1шт.

9

828946C1

SHIELD

hay conditioner inner RH

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

10

828517C2

SHIELD

cover

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

11

829578C1

SIDE ASSY, header rear centre

1шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16-18 hex

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

830030C1

BOLT,Adj, 3/8" - 16 x 7"

H.C. adjusting

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

20803R1

WASHER

.406 x 1.000 x .105

4шт.

13

829498C2

SUPPORT, idler sprocket pivot camshaft

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carraige

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

.406 x 1.000 x .105

2шт.

14

831795C1

BRACE

ASSY, frame lower rear

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

15

136205C2

BLOCK

STOP ASSY, roll

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

824993C1

BAR

stop spacer

2шт.

609824R1

BOLT, 7/16-14 x 1-3/4 no. 3 plow

2шт.

271501

SOCKET

NUT, 7/16-14 hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

17

824992C1

BAR

roll adjusting shim

10шт.
