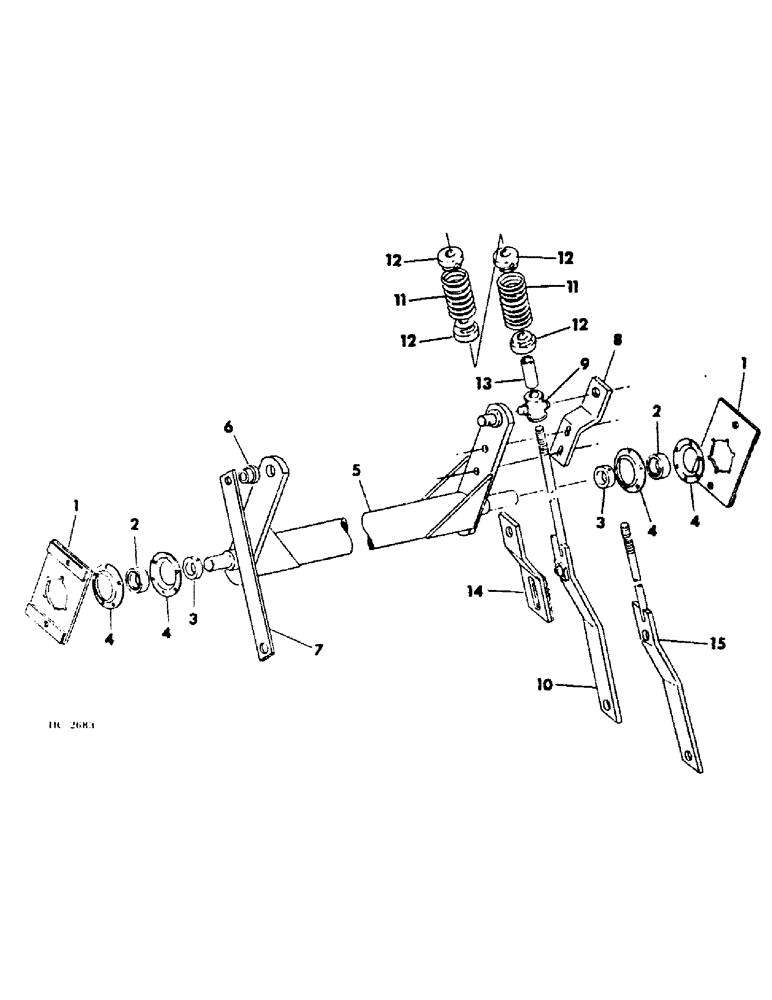

Запчасти Case IH DRAPER (B-36) - DRAPER HEADER, FLOAT TRANSFER AND LOCKOUT ATTACHMENT, SERIAL (15) - CROP CONDITIONING
№
Артикул
Название
Примечание
Количество
1
831803C1
SUPPORT
ASSY, float pivot
2шт.
25526R1
NUT,1/2"-13, G8
1/2-13 hex type 8
4шт.
828388C1
BELLEVILLE WASHER
1/2 Belleville spring
4шт.
2
571588R92
BALL BEARING,1.3755" ID x 72 mm OD x 1"
float pivot
2шт.
3
517645R11
COLLAR
W/SET SCREW, locking
2шт.
4
825620C1
RETAINER
FLANGETTE, bearing
4шт.
495967R1
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
BOLT, 3/8-16 x 1 crg
12шт.
120377
NUT,3/8" - 16, Gr 5
12шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
12шт.
5
831806C1
PIVOT
ASSY, float
1шт.
6
595978R1
BUSHING
connecting bar pivot
1шт.
7
831843C1
BAR
connecting
1шт.
271724
PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5
5/8-11 x 2-1/4 hex-hd
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
464623R1
WASHER
.656 x 1.500 x .105
1шт.
8
831716C1
SUPPORT
transfer and lockout
1шт.
88530
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5
BOLT, 1/2-13 x 1-3/4 crg
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
9
831717C1
TRUNNION
transfer and lockout
1шт.
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
1шт.
10
831758C1
ROD
ASSY, float transfer, hay, grain
1шт.
11
608347R1
SPRING
float transfer, hay, grain
2шт.
12
608348R1
RETAINER
spring, hay, grain
1шт.
13
828443C1
SPACER
float transfer rod, hay/grain
1шт.
14
831851C1
LOCK
ASSY, float, hay/grain
1шт.
599744R1
AXLE PIN
PIN, Q.A. Cotter
1шт.
413-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5
Hex, 3/4"-10 x 2-1/2", G5, For use when grain cutting only
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
467750R1
WASHER
.761 x 1.500 x .105
1шт.
15
831848C1
ROD
ASSY, float lockout, grain only
1шт.
Выбрано товаров: 37
