Запчасти Case IH DRAPER (B-35) - DRAPER HEADER, FLOAT LOCKOUT ATTACHMENT, PRIOR TO SERIAL NO. (15) - CROP CONDITIONING

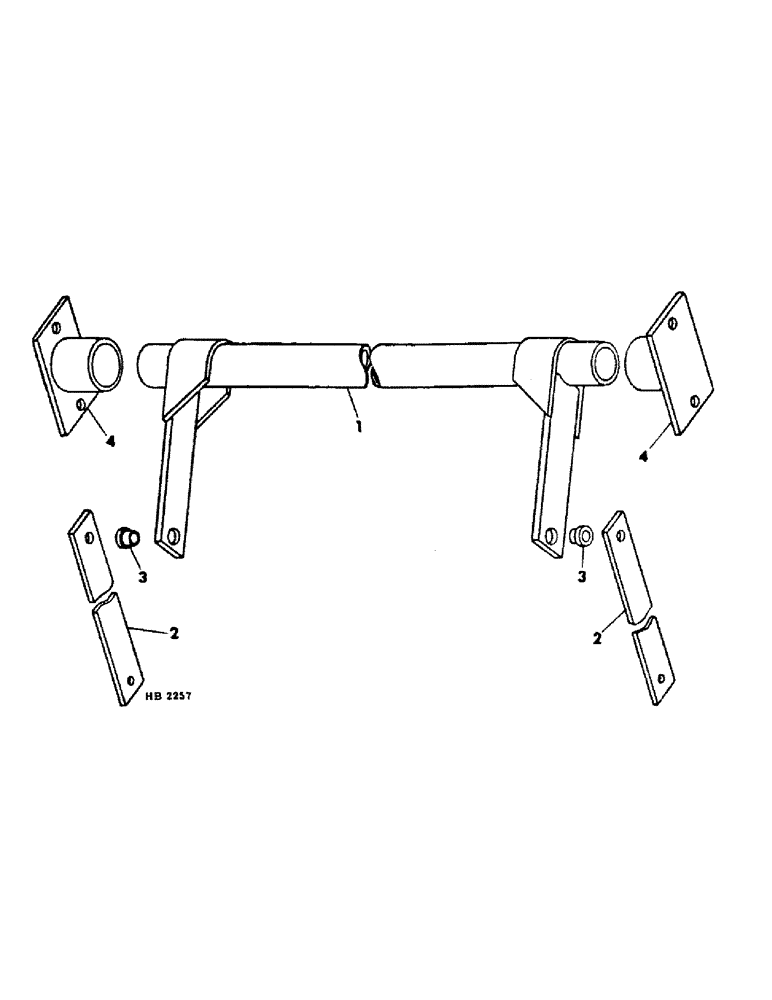

Схема запчастей Case IH DRAPER - (B-35) - DRAPER HEADER, FLOAT LOCKOUT ATTACHMENT, PRIOR TO SERIAL NO. (15) - CROP CONDITIONING

Артикул

Название

Примечание

Количество

1

830135C1

PIVOT

ASSY, float lock

1шт.

2

830139C1

BAR

connecting

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 x 2-1/4 hex hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

3

595978R1

BUSHING

pivot

2шт.

4

830132C1

SUPPORT

ASSY, float pivot

2шт.

24860R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

4шт.

25526R1

NUT,1/2"-13, G8

1/2-13 hex type 8

4шт.

828388C1

BELLEVILLE WASHER

1/2 Belleville spring

4шт.

Выбрано товаров: 11
