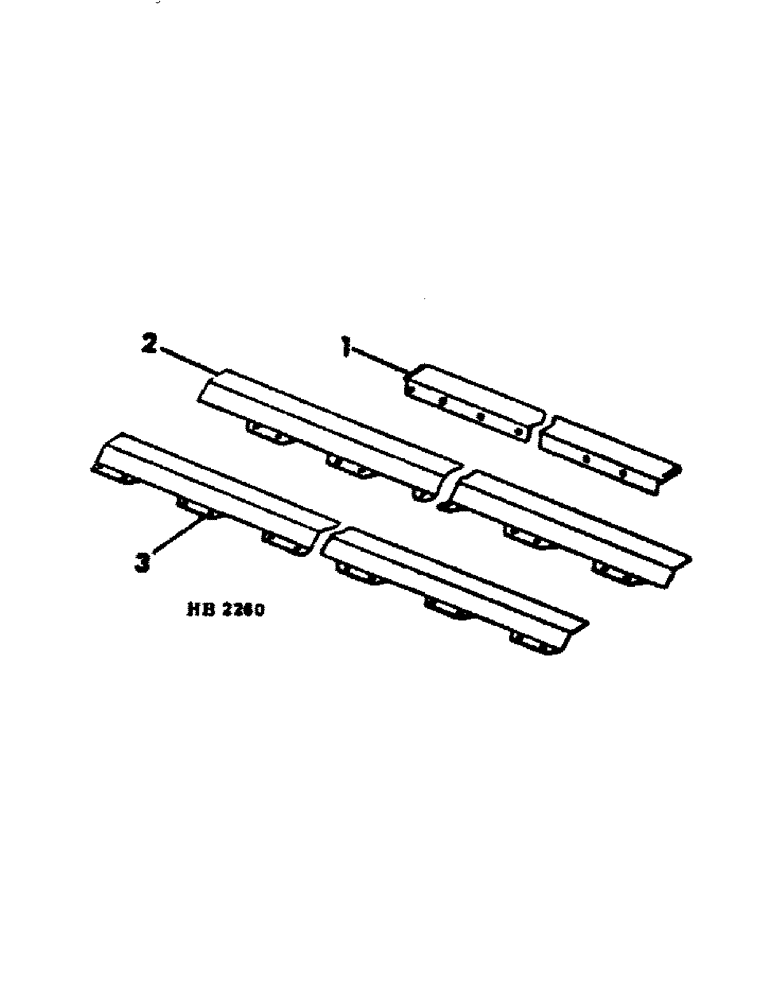

Запчасти Case IH DRAPER (B-19) - DRAPER HEADER, APRON SUPPORTS AND SHIELDS, APRON SUPPORT (15) - CROP CONDITIONING

1

824569C1

ANGLE

apron front support LH shown 12-1/2 ft

1шт.

1

824570C1

ANGLE

apron front support RH 12-1/2 ft

1шт.

1

824659C1

ANGLE

apron front support LH 14-1/2 ft

1шт.

1

824660C1

ANGLE

apron front support RH 14-1/2 ft

1шт.

1

824571C1

ANGLE

apron front support LH 16-1/2 ft

1шт.

1

824572C1

ANGLE

apron front support RH 16-1/2 ft

1шт.

1

824661C1

ANGLE

apron front support LH 19-1/2 ft

1шт.

1

824662C1

ANGLE

apron front support RH 19-1/2 ft

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd, 4 used 10-1/2 ft, 6 used 12-1/2 ft, 8 used 14-1/2 ft, 10 used 16-1/2 ft, 13 used 19-1/2 ft

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

2

829553C1

SHIELD

apron LH 12-1/2 ft

1шт.

2

829556C1

SHIELD

apron LH 14-1/2 ft

1шт.

2

823161C1

SHIELD

apron LH 16-1/2 ft

1шт.

3

823160C1

SHIELD

apron RH 12-1/2 ft

1шт.

3

829554C1

SHIELD

apron RH 14-1/2 ft

1шт.

3

829555C1

SHIELD

apron RH 16-1/2 ft

1шт.
