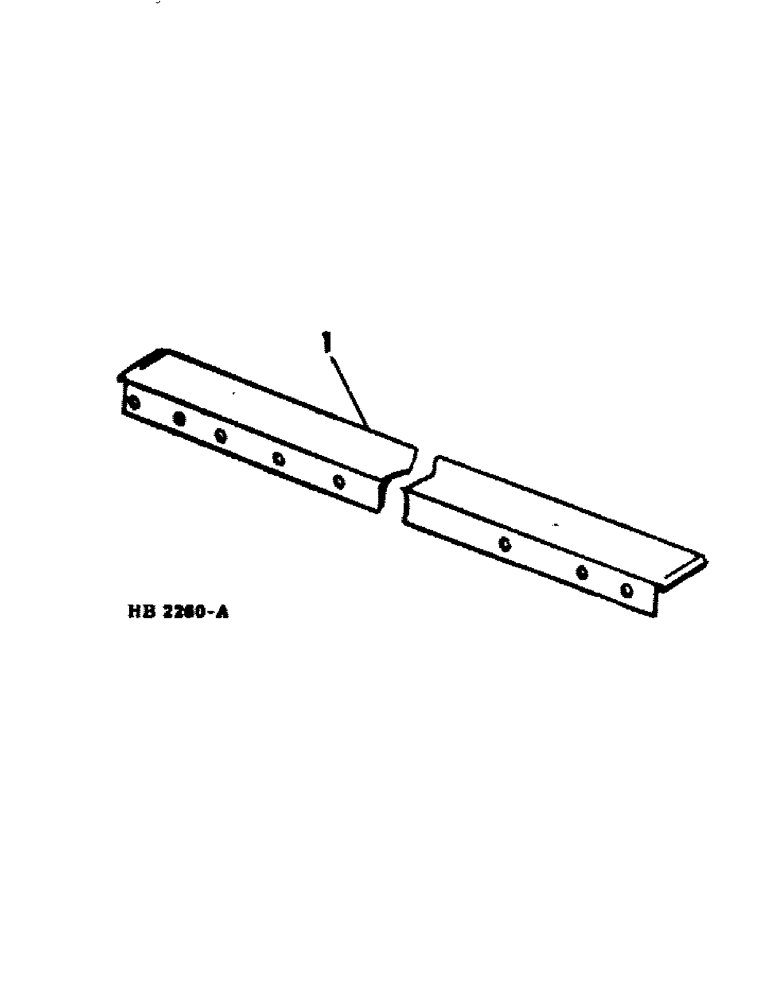

Запчасти Case IH DRAPER (B-19[1]) - APRON SUPPORT (15) - CROP CONDITIONING

1

830076C1

ANGLE

apron front support LH 24-1/2 ft 93.3 inch length prior to serial no. 3101

1шт.

1

830077C1

ANGLE

apron front support RH 24-1/2 ft 129.3 inch length prior to serial no. 3101

1шт.

1

830740C1

ANGLE

apron front support LH 24-1/2 ft serial no. 3101 and since

1шт.

1

830741C1

ANGLE

apron front support RH 24-1/2 ft serial no. 3101 and since

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex

14шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

14шт.
