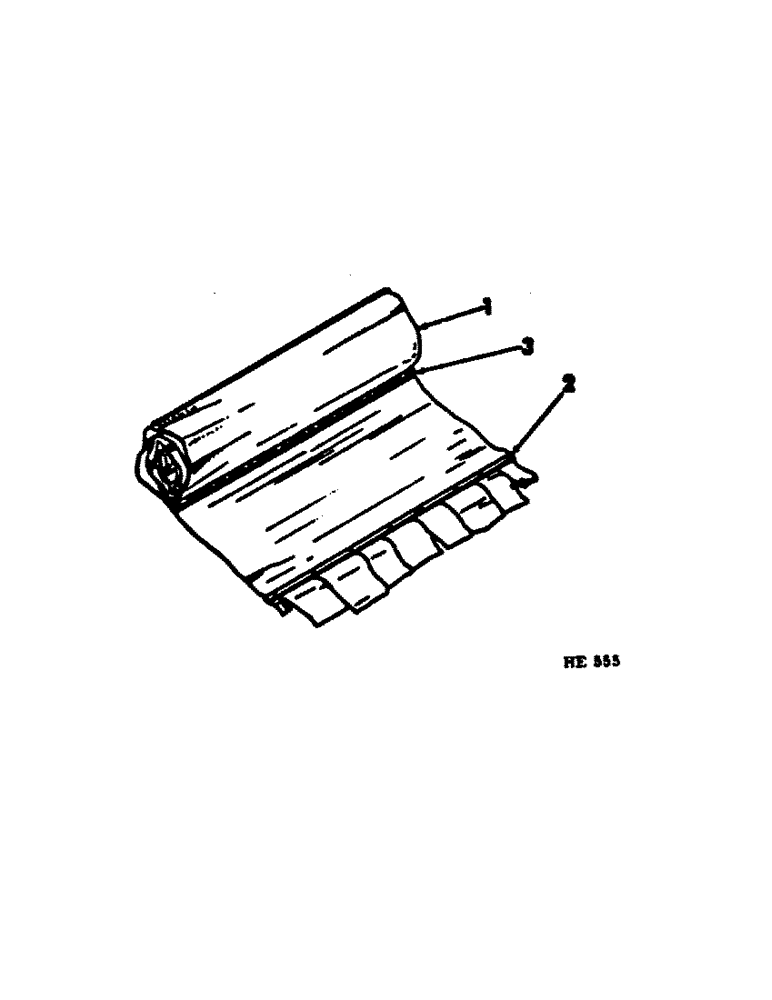

Запчасти Case IH DRAPER (B-17) - DRAPER HEADER, HEADER CANVAS WIDE APRON, HEADER CANVAS WIDE (15) - CROP CONDITIONING

1

829320C91

APRON

ASSY, 10-1/2 ft slat type, optional with

2шт.

1

831352C91

APRON

ASSY, 10-1/2 ft moulded type

2шт.

1

597122R95

APRON

ASSY, 12-1/2 ft slat type, optional with

2шт.

1

831353C91

APRON

ASSY, 12-1/2 ft moulded type

2шт.

1

597124R95

APRON

ASSY, 14-1/2 ft slat type, optional with

2шт.

1

831354C91

APRON

ASSY, 14-1/2 ft moulded type

2шт.

1

597119R96

APRON

ASSY, 16-1/2 ft slat type, optional with

2шт.

1

831355C91

APRON

ASSY, 16-1/2 ft moulded type

2шт.

1

597120R96

APRON

ASSY, 19-1/2 ft slat type, optional with

2шт.

1

831763C91

APRON

ASSY, 19-1/2 ft moulded type

2шт.

2

612288R21

BAR ASSY.

BAR ASSY, clamping, includes screws, nuts and washers

1шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

#10-32 x 1-1/4 rd hd sltd mach

9шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

9шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

9шт.

3

618633R3

SLAT

apron, used as reqd, for use w/slat type aprons only

1шт.

451312R1

STAPLE

double pointed

1шт.

Q3569

RIVET,Csk, 3/16" x 9/16"

.186 x 9/16 tub

1шт.

20319R1

RIVET

.186 x 1/2 tub

1шт.
