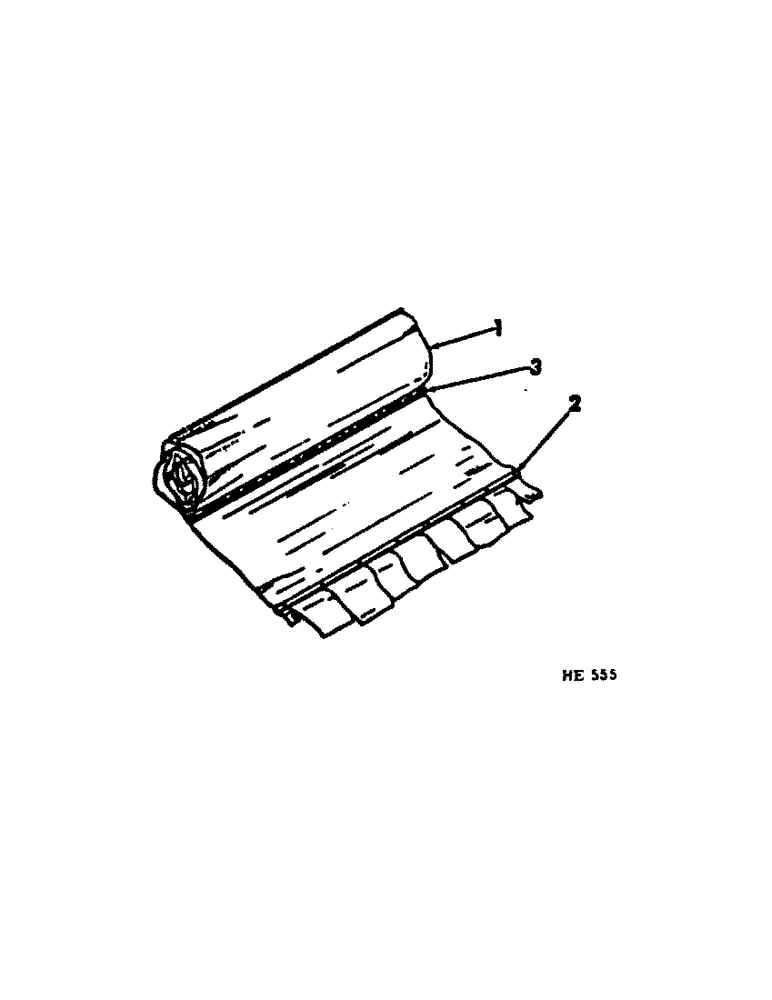

Запчасти Case IH DRAPER (B-17[1]) - HEADER CANVAS WIDE APRON (15) - CROP CONDITIONING

1

830060C91

APRON

ASSY, 24-1/2 ft LH slat type, optional with

1шт.

1

831357C91

APRON

ASSY, 24-1/2 ft LH moulded type prior to serial no. 3101

1шт.

1

830061C91

APRON

ASSY, 24-1/2 ft RH slat type, optional with

1шт.

1

831359C91

APRON

ASSY, 24-1/2 ft RH moulded type prior to serial no. 3101

1шт.

1

832190C1

APRON ASSY, 24-1/2 ft slat type, serial no. 3101 and since

2шт.

2

612288R21

BAR ASSY.

BAR ASSY, clamping, includes screws, nuts and washers

1шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

#10-32 x 1-1/4 rd hd sltd mach

9шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

9шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

9шт.

3

618633R3

SLAT

apron, for use w/slat type aprons only

1шт.

451312R1

STAPLE

double pointed

1шт.

Q3569

RIVET,Csk, 3/16" x 9/16"

.186 x 9/16 tub

1шт.

20319R1

RIVET

.186 x 1/2 tub

1шт.
