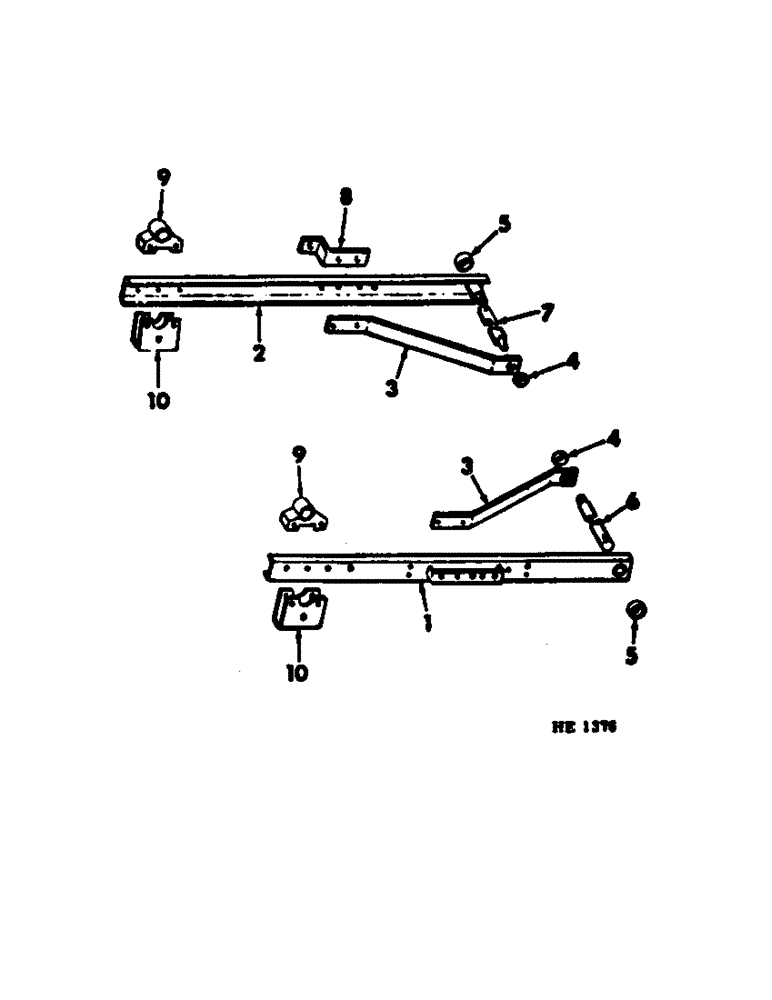

Запчасти Case IH DRAPER (B-13) - DRAPER HEADER, REEL SUPPORT ARMS AND BRACES, REEL DRIVE (15) - CROP CONDITIONING

1

824522C2

ARM

ASSY, support LH

1шт.

2

824523C1

ARM

ASSY, support RH

1шт.

21226R1

WASHER

1.281 x 2.000 x .105, RH

1шт.

3

824599C1

BRACE

reel support arm

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

825706C1

BUSHING

brace locking

2шт.

616387R1

PIN,3/8" x 2", Coiled

2шт.

5

824529C1

BUSHING

reel arm locking

2шт.

616387R1

PIN,3/8" x 2", Coiled

2шт.

6

824539C1

SHAFT

reel arm LH

1шт.

7

824540C1

SHAFT

reel arm RH

1шт.

8

825604C1

SUPPORT

slave cylinder upper

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

824537C1

BEARING CARRIER,1.46" ID x 2"

bat reel support

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

10

824538C1

SUPPORT

bat reel support bearing

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8-16 x 2-1/2 hex-hd

3шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8-16 x 3 hex-hd, LH

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

21150R1

HEADED PIN,12.7mm OD x 57.15mm L

PIN, 1/2 x 2.250 hd type 1

2шт.

599744R1

AXLE PIN

PIN, Q.A. cotter

2шт.
