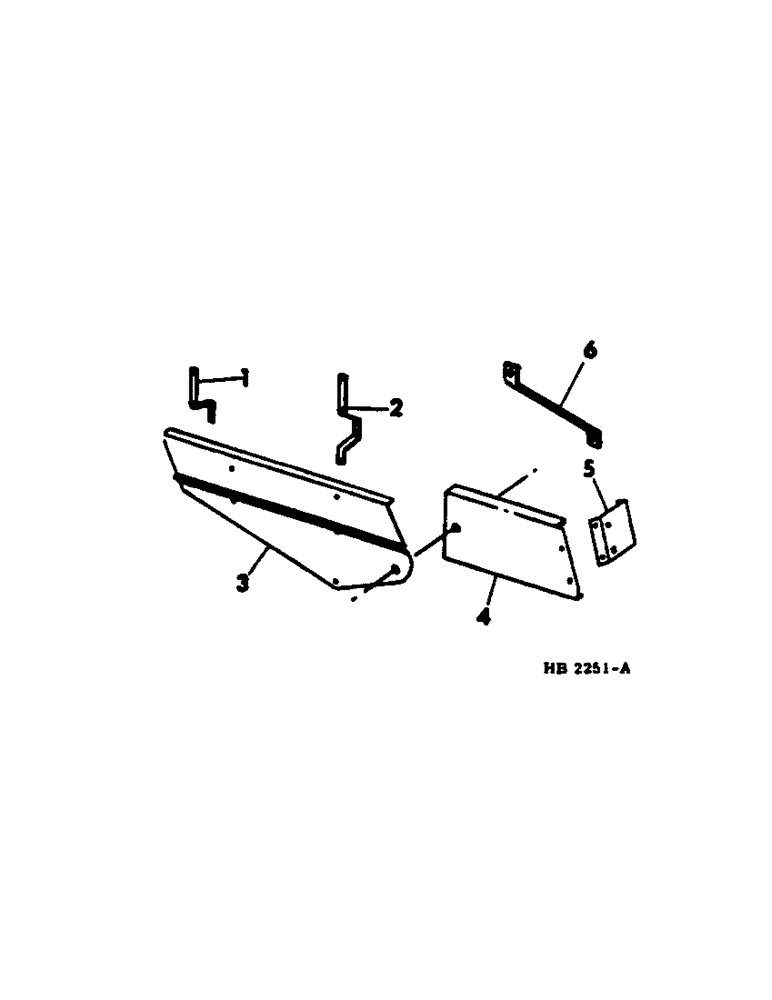

Запчасти Case IH DRAPER (B-13[1]) - REEL DRIVE SHIELDS LH (15) - CROP CONDITIONING

1

824520C1

SUPPORT

reel drive shield frt

1шт.

2

825728C1

SUPPORT

reel drive shield

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

824519C2

SHIELD

reel drive

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

20803R1

WASHER

.406 x 1.000 x .105

5шт.

4

824159C91

SHIELD

W/PRODUCT GRAPHIC, reel drive rear

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8-16 x 1/2 hex-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

176977C1

PRODUCT GRAPHIC

danger

1шт.

5

829394C2

CHANNEL

rear shield support

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

.406 x 1.000 x .105

2шт.

6

831817C1

SUPPORT

reel drive rear shield

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd

2шт.

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16-18 hex flange lock

2шт.
