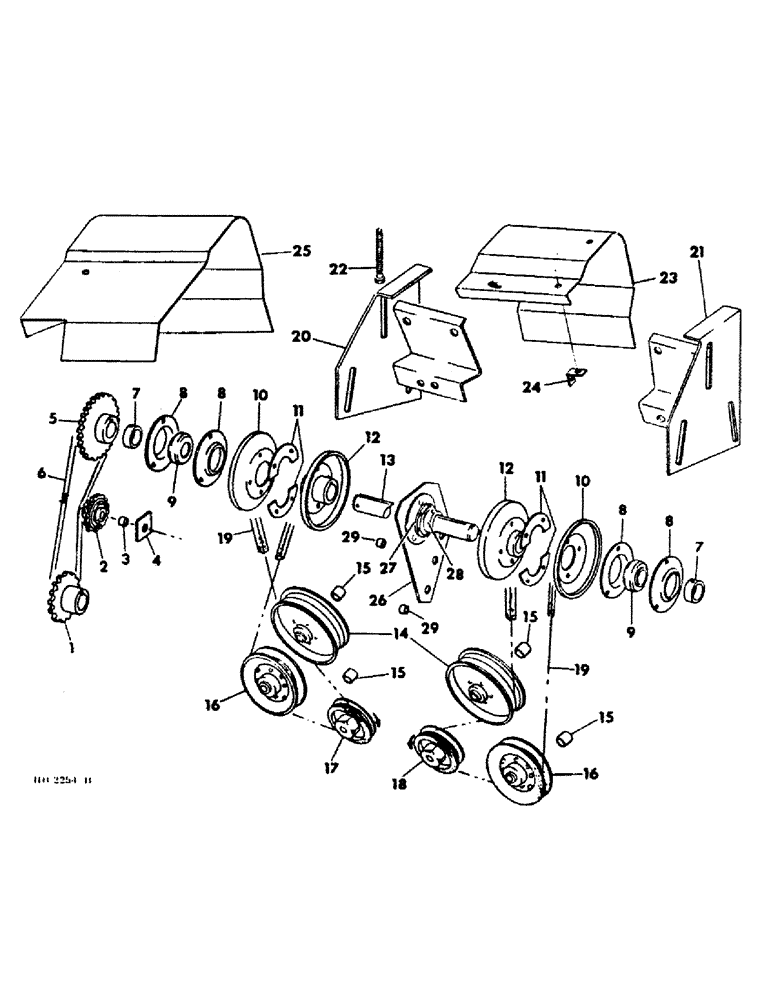

Запчасти Case IH DRAPER (B-10) - DRAPER HEADER, CONVEYOR DRIVE (15) - CROP CONDITIONING
№
Артикул
Название
Примечание
Количество
1
829353C1
DRIVE SPROCKET
SPROCKET ASSY, 23T roller drive shaft for connecting parts refer to header drive
1шт.
88907
WOODRUFF KEY,#B, 5/16" x 1", HT
5/16 x 1 Woodruff
1шт.
115321
SET SCREW,Hex Skt, 5/16"-18 x 5/16"
SCREW, 5/16-18 x 5/16 cup pt hdls hex soc set
1шт.
2
607779R91
DRIVE SPROCKET
SPROCKET, 18T roller drive tightener
1шт.
180191
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
1/2-13 x 3-1/4 hex hd
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
20601R1
WASHER
.531 x 1.250 x .105
1шт.
3
259342R1
SPACER
sprocket
1шт.
4
647605C1
BAR
tightener sprocket spacer
1шт.
5
829359C1
SPROCKET ASSY.
SPROCKET ASSY, 35T roller drive shaft driven
1шт.
Q1482
KEY,5/16" Sq x 1", Par
5/16 x 5/16 x 1 sq parallel
1шт.
6
CHAIN ASSY, roller driveshaft drive use 57 links 1/2 inch pitch std roller chain from 10 ft roll 1790D & add 1 offset link 1303D and 1 connecting link 1301D
1шт.
1301D
CHAIN LINK
LINK, #40 single pitch connecting
1шт.
1303D
LINK
#40 single pitch offset
1шт.
7
557115R11
COLLAR
COLLAR W/SET SCREW, bearing
2шт.
115321
SET SCREW,Hex Skt, 5/16"-18 x 5/16"
SCREW, 5/16-18 x 5/16 cup, pt hdls hex soc set
2шт.
8
565631R1
BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"
RETAINER, bearing
6шт.
495967R1
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
BOLT, 3/8-16 x 1 carriage
9шт.
120377
NUT,3/8" - 16, Gr 5
9шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
9шт.
9
455959R92
BEARING ASSY,28.57mm ID x 62mm OD x 18mm W
roller drive shaft
2шт.
10
592730R1
PULLEY
roller drive shaft adj half
2шт.
11
592127R1
SPACER
pulley
24шт.
12
829357C1
PULLEY
ASSY, roller drive shaft adj half
2шт.
23875R1
KEY,5/16" Sq x 6 1/2", Par
5/16 x 5/16 x 6-1/2 sq parallel
2шт.
20900R1
SET SCREW
1/2-13 x 1 sq-hd cup pt set
2шт.
120238
JAM NUT,Jam, 1/2"-13, G5
1/2-13 hex jam
2шт.
20617R1
BOLT,Hex, 5/16" - 18 x 1", Gr 8
5/16-18 x 1 hex hd type 8
8шт.
25520R1
NUT,5/16"-18, G8
5/16-18 hex type 8 PHC
8шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
13
829362C1
SHAFT
roller drive
1шт.
432-1624
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1 1/2"
1шт.
20885R1
WASHER
1.156 x 2.000 x .054
1шт.
14
607443R91
PULLEY
roller drive belt tightener
2шт.
486180R1
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5
BOLT, 1/2-13 x 2-1/4 carriage, not used 24-1/2 ft
2шт.
180181
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1/2-13 x 2 hex-hd, used 24-1/2 ft only
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
607896R1
SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole
.531 x 1.250 x .105 sq hole
2шт.
20601R1
WASHER
.531 x 1.250 x .105, 24-1/2 ft header
2шт.
15
610395R1
SPACER,1/2" X-Strng Pipe x 3/8"
pulley
4шт.
16
161173C91
PULLEY
roller drive belt tightener
2шт.
486180R1
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5
BOLT, 1/2-13 x 2-1/4 carriage, not used 24-1/2 ft
2шт.
180185
BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5
1/2-13 x 2-1/2 hex-hd, used 24-1/2 ft only
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
607896R1
SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole
.531 x 1.250 x .105 sq hole not 24-1/2 ft header
2шт.
178374R1
WASHER
.531 x 1.250 x .054
2шт.
20601R1
WASHER
.531 x 1.250 x .105, 24-1/2 ft header
4шт.
17
824910C1
PULLEY
apron roller driven LH
1шт.
18
824911C1
PULLEY
apron roller driven RH, for connecting parts refer to conveyor drive roller and shield
1шт.
19
829356C1
BELT
roller drive, not for use w/24-1/2 ft header
2шт.
19
607666R1
V-BELT,0.63" W
Roller drive, For use w/24-1/2 ft header 0.63" W
2шт.
20
830095C1
BRACKET
ASSY, pulley adj LH 24-1/2 ft
1шт.
21
830096C1
BRACKET
ASSY, pulley adj RH 24-1/2 ft
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2-13 x 1-1/4 hex-hd
4шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
1/2-13 x 1-1/2 hex-hd
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
6шт.
20601R1
WASHER
.531 x 1.250 x .105
10шт.
178374R1
WASHER
.531 x 1.250 x .054
2шт.
22
599424R1
BOLT,Hex, 7/16" - 14 x 4.25", Gr 2
bracket adj, 24-1/2 ft
2шт.
271501
SOCKET
NUT, 7/16-14 hex
2шт.
23
830879C1
SHIELD
RH roller drive serial no. 1225 and since
1шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
24
823660C1
ANGLE
RH shield, serial no. 1225 and since
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
25
830911C1
SHIELD
ASSY, LH roller drive serial no. 1225 and since
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
619856R1
WASHER
.406 x 1.000 x .056
2шт.
26
830316C1
SUPPORT
roller drive shaft center serial no. 2501 and since
1шт.
271771
HOUSING,Hex, 3/4" - 10 x 2", Gr 5
3/4-10 x 2 hex-hd
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
467750R1
WASHER
.781 x 1.500 x .105
2шт.
27
155802C91
BEARING
roller drive shaft center serial no. 2501 to 2523, for service order 1-455960R92, bearing 1-557115R11 collar and 2-565631R1 retainer
1шт.
27
455959R92
BEARING ASSY,28.57mm ID x 62mm OD x 18mm W
roller drive shaft center serial no. 2524 and since
1шт.
495967R1
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
BOLT, 3/8-16 x 1 crg
3шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
28
572224R11
COLLAR
W/SET SCREW, locking serial no. 2501 to 2523, for service order 1-455960R92 bearing, 1-557115 collar assy and 2-565631R1 retainer
1шт.
127782
SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt
1шт.
28
557115R11
COLLAR
COLLAR W/SET SCREW, locking serial no. 2524 and since
1шт.
115321
SET SCREW,Hex Skt, 5/16"-18 x 5/16"
SCREW, 5/16-18 x 5/16 cup, pt hdls hex soc set
1шт.
29
468530R1
SPACER,3/4" Pipe x 9/16"
center support, draper header
2шт.
