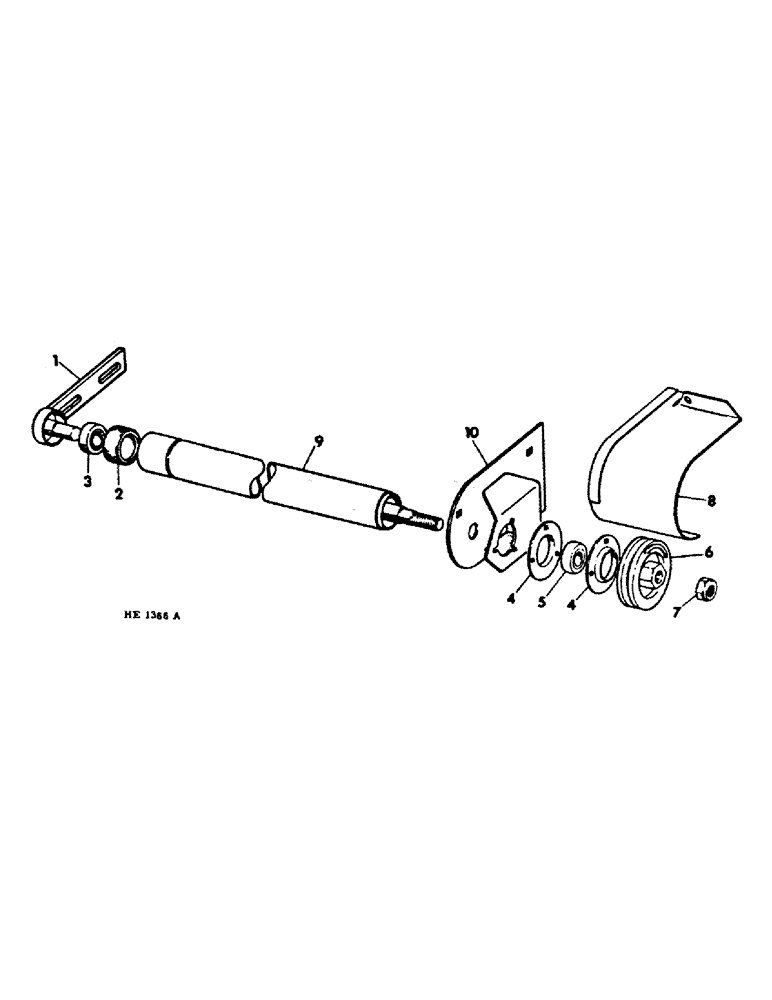

Запчасти Case IH DRAPER (B-08) - DRAPER HEADER, CONVEYOR DRIVE ROLLER AND SHIELD (15) - CROP CONDITIONING

1

824563C1

SUPPORT ASSY.

SUPPORT ASSY, drive roller front

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

.406 x 1.000 x .054

4шт.

2

592142R1

RETAINER

drive roller front

2шт.

3

608130R91

BALL BEARING,0.7874" ID x 1.8504" OD x 0.5512"

roller front

2шт.

4

455961R1

BEARING HOUSING,3.5625" OD x 0.3125"

FLANGETTE, bearing mounting

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex hd

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

619855R1

WASHER

.344 x .750 x .054

6шт.

5

824933C91

BALL BEARING,20mm ID x 47mm OD x 14mm W

BEARING, drive roller rear

2шт.

6

824910C1

PULLEY

apron roller driven LH, RH thread

1шт.

6

824911C1

PULLEY

apron roller driven RH shown, LH thread

1шт.

7

22346R1

JAM NUT,Jam, 3/4"-10, G5, LH

3/4-10 unc jam RH - w/LH thread

1шт.

7

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 unc jam LH - w/RH thread

1шт.

8

824934C2

SHIELD

ASSY, driven pulley LH

1шт.

8

824935C2

SHIELD

ASSY, driven pulley RH shown

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16-18 hex lock

2шт.

9

827525C1

ROLLER

ASSY, apron drive LH

1шт.

9

827526C1

ROLLER

ASSY, apron drive RH

1шт.

10

827521C1

SUPPORT

ASSY, roller rear LH for service order 1-830985C1 support, 1-214366C91 bearing, 1-455102R11 collar, 2-462360R1 flangette, 1-831664C1 spacer

1шт.

10

827522C1

SUPPORT

ASSY, roller rear RH for service order 1-830986C1 support, 1-214366C91 bearing, 1-455102R11 collar, 2-462360R1 flangette 1-831664C1 spacer

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.
