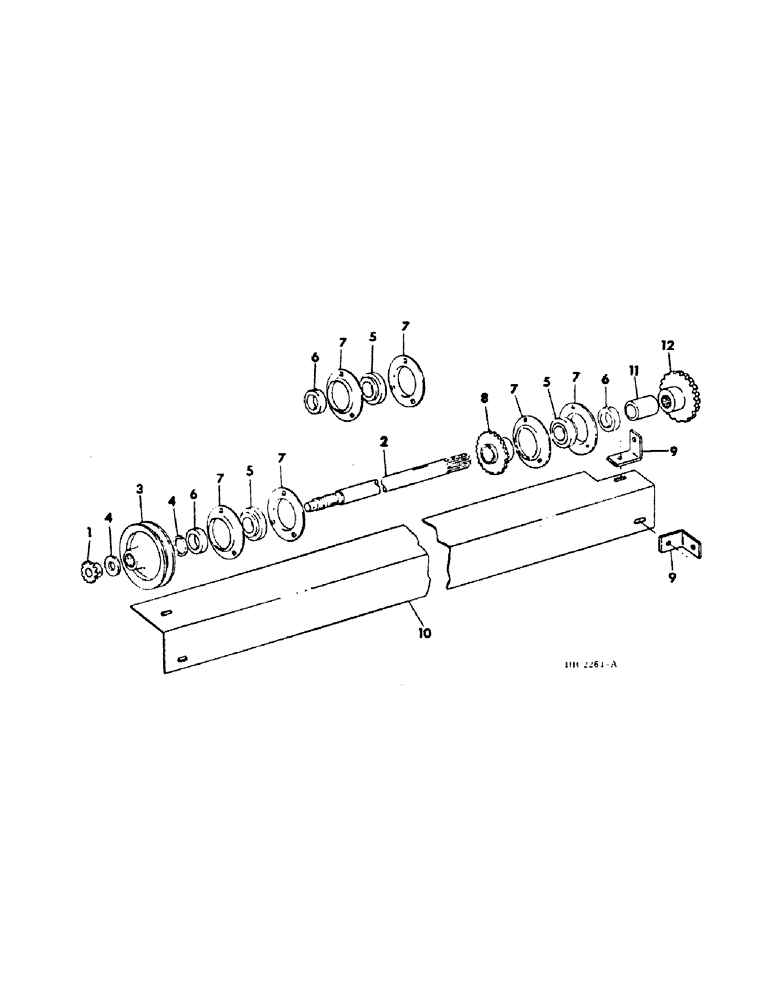

Запчасти Case IH DRAPER (B-06) - DRAPER HEADER, HEADER DRIVE (15) - CROP CONDITIONING

1

829299C1

SPROCKET ASSY.

SPROCKET, 11T reel drive, for connecting parts refer to reel drive

1шт.

19790R1

PIN,5/16" x 1 1/4", Coiled

1шт.

2

829348C1

SHAFT

header drive counter, 36.06", 10-1/2 & 12-1/2 ft/10-1/2 SYM.

1шт.

2

829349C1

SHAFT

header drive counter, 48.06", 14-1/2 ft/12-1/2 SYM.

1шт.

2

829350C1

SHAFT

header drive counter, 60.06", 16-1/2 ft/14-1/2 SYM.

1шт.

2

829351C2

SHAFT

header drive counter, 72.06", 19-1/2 ft/16-1/2 SYM.

1шт.

2

830066C1

SHAFT

header drive counter, 99.50", 24-1/2 ft prior to serial no. 3101

1шт.

2

832192C1

SHAFT

header drive counter, 117.50", 24-1/2 ft serial no. 3101 and since

1шт.

3

PULLEY, knife drive, for service parts refer to knife drive

1шт.

4

21753R1

WASHER

.781 x 1.500 x .054

3шт.

5

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

countershaft, 3 used 19-1/2 and 24-1/2 ft

2шт.

6

455104R11

COLLAR

W/SET SCREW, locking, 3 used 19-1/2 and 24-1/2 ft

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 cup-pt hdls hex soc set, 3 used 19-1/2 and 24-1/2 ft

2шт.

7

617863R1

FLANGED BEARING

RETAINER, bearing, 6 used 19-1/2 and 24-1/2 ft

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage, 9 used 19-1/2 and 24-1/2 ft

6шт.

120377

NUT,3/8" - 16, Gr 5

9 used 19-1/2 and 24-1/2 ft 3/8"-16, G5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 9 used 19-1/2 and 24-1/2 ft 3/8"

6шт.

8

829353C1

DRIVE SPROCKET

SPROCKET ASSY, 23T roller drive shaft

1шт.

124554

O-RING

5/16 x 1 Woodruff

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16-18 x 5/16 cup-pt hdls hex soc set

1шт.

9

829393C1

ANGLE

drive shaft shield support

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd, 9 used 24-1/2 ft

8шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

619856R1

WASHER

.406 x 1.000 x .056, used on 24-1/2 ft

1шт.

10

829395C1

ANGLE

drive shaft shield 10-1/2 ft and 12-1/2 ft

1шт.

10

829396C2

ANGLE

drive shaft shield 14-1/2 ft

1шт.

10

829397C2

ANGLE

drive shaft shield 16-1/2 ft

1шт.

10

829398C2

ANGLE

drive shaft shield 19-1/2 ft

1шт.

10

830055C1

ANGLE

drive shaft shield 24-1/2 ft prior to serial no. 3101

1шт.

10

832199C2

ANGLE

drive shaft shield 24-1/2 ft serial no. 3101 and since

1шт.

11

829352C1

SPACER

drive sprocket, for use w/hay conditioner

1шт.

12

828807C1

SPROCKET ASSY.

SPROCKET ASSY, HC drive, for use w/hay conditioner

1шт.

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, sprocket retaining set

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2-20 hex-jam

1шт.
