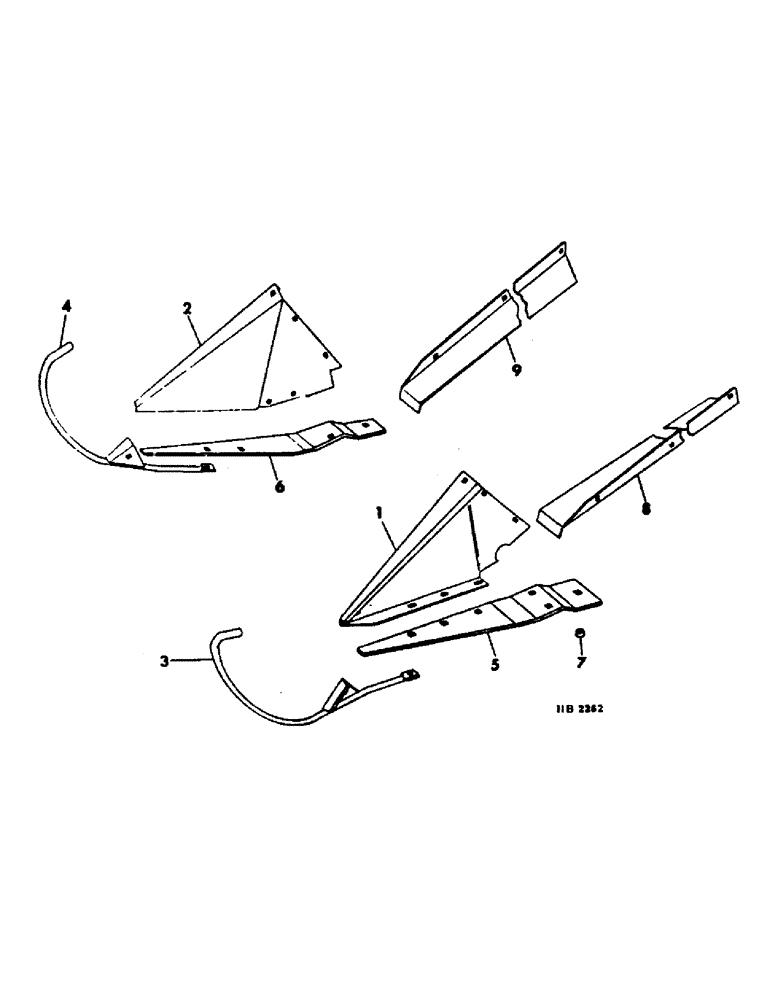

Запчасти Case IH DRAPER (B-05) - DRAPER HEADER, DIVIDERS AND SOLE PLATES (15) - CROP CONDITIONING

1

829339C1

DIVIDER

LH

1шт.

2

829345C1

DIVIDER

RH

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

3

829343C1

ROD

ASSY, divider LH

1шт.

4

829344C1

ROD

ASSY, divider RH

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

829342C1

SOLE

divider LH

1шт.

6

829346C1

SOLE

divider RH

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2-13 x 1 crg RH

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 crg, LH

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd RH

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex hd LH

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 1/2-13, x 1-1/2 crg LH

3шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

20803R1

WASHER

.406 x 1.000 x .105

5шт.

7

622535R1

SPACER,1/2" X-Strng Pipe x 7/16"

LH sole 1/2" X-Strng Pipe x 7/16"

1шт.

8

829573C1

DEFLECTOR

inside divider LH

1шт.

9

829574C1

DEFLECTOR

inside divider RH

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.
