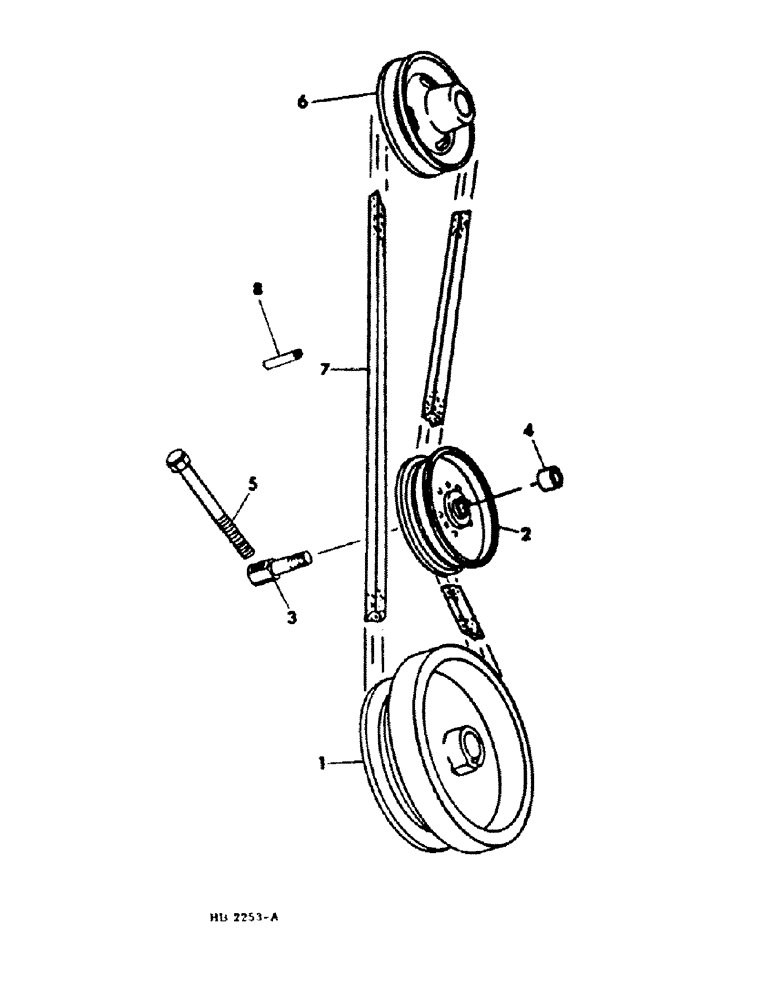

Запчасти Case IH DRAPER (B-24) - DRAPER HEADER, KNIFE DRIVE (14) - CROP CUTTING

1

828960C2

PULLEY

knife driven for connecting parts refer to knife drive connections

1шт.

Q53

KEY,1/4" Sq x 1", Par

1шт.

2

607443R91

PULLEY

knife drive tightener

1шт.

3

595758R4

BOLT,Hex, 1/2" - 13 x 2.75"

tightener pulley mtg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

4шт.

178374R1

WASHER

.531 x 1.250 x .054

1шт.

4

55754D

SPACER,1/2" X-Strng Pipe x 5/8"

pulley

1шт.

5

829323C1

BOLT,Hex, 1/2" - 13 x 12.5"

pulley adjusting

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

6

829301C1

PULLEY

knife drive 6.40 OD dia, for use on 10-1/2, 12-1/2, 14-1/2, 16-1/2, 19-1/2, 24-1/2, ft built, Serial Range: 1976-1979

1шт.

6

824264C1

PULLEY

knife drive 7.40 OD dia, for use on 12-1/2, 14-1/2, 16-1/2, 19-1/2, ft 1980 and since

1шт.

6

824709C1

PULLEY

knife drive 6.94 OD dia, for use on 24-1/2 ft 1980 and since for connecting parts refer to header drive

1шт.

7

596222R1

V-BELT,0.88" W

Knife drive, For use w/ 829301C1 pulley 0.88" W

1шт.

7

824274C1

BELT,3622.04 mm L

Knife Drive for use w/824264C1 and 824709C1 Pulley 3622.04 mm L

1шт.

8

179441C1

SPACER

knife drive belt guide

1шт.

180113

SPRING

5/16-18 x 3 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

.344 x .750 x .054

1шт.
